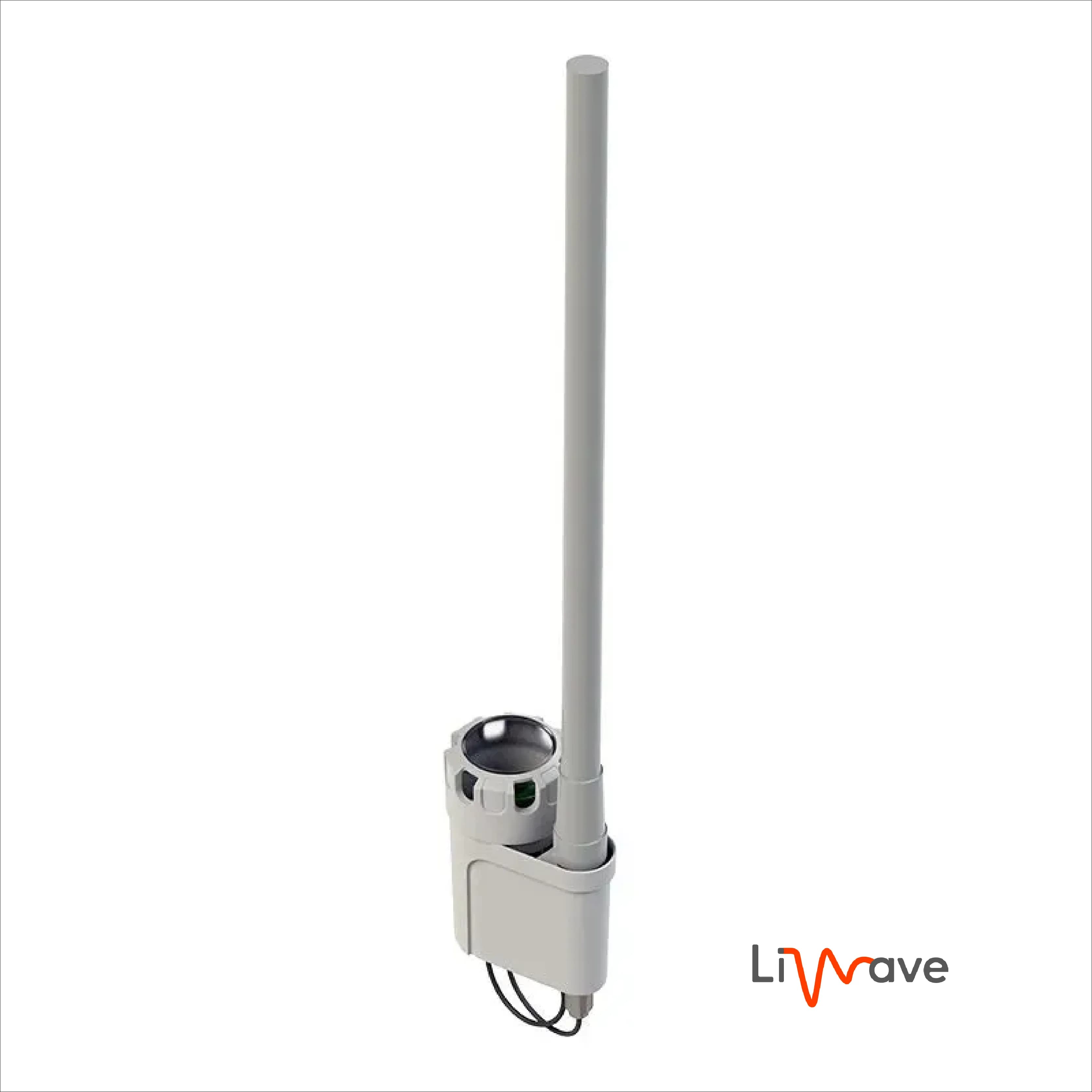

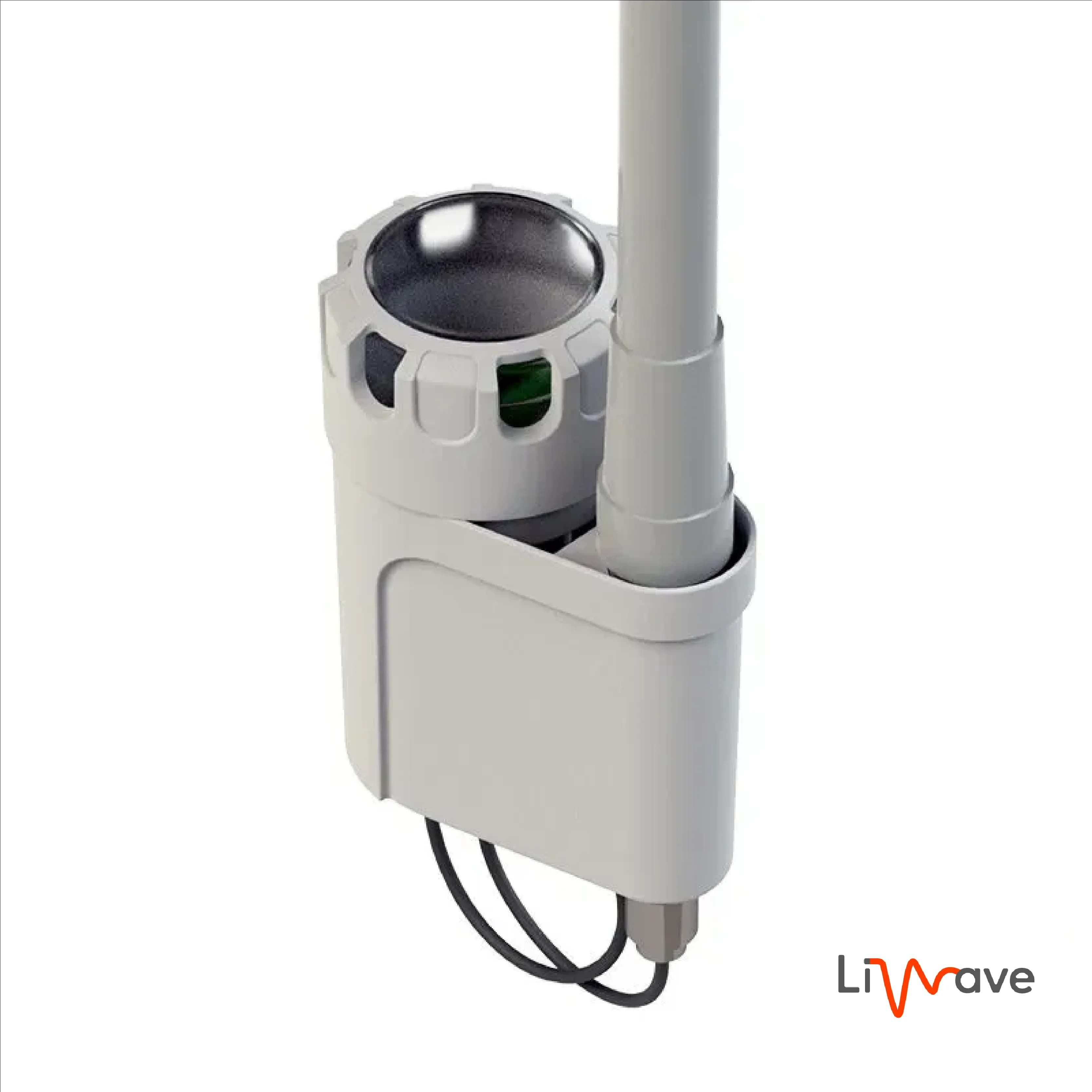

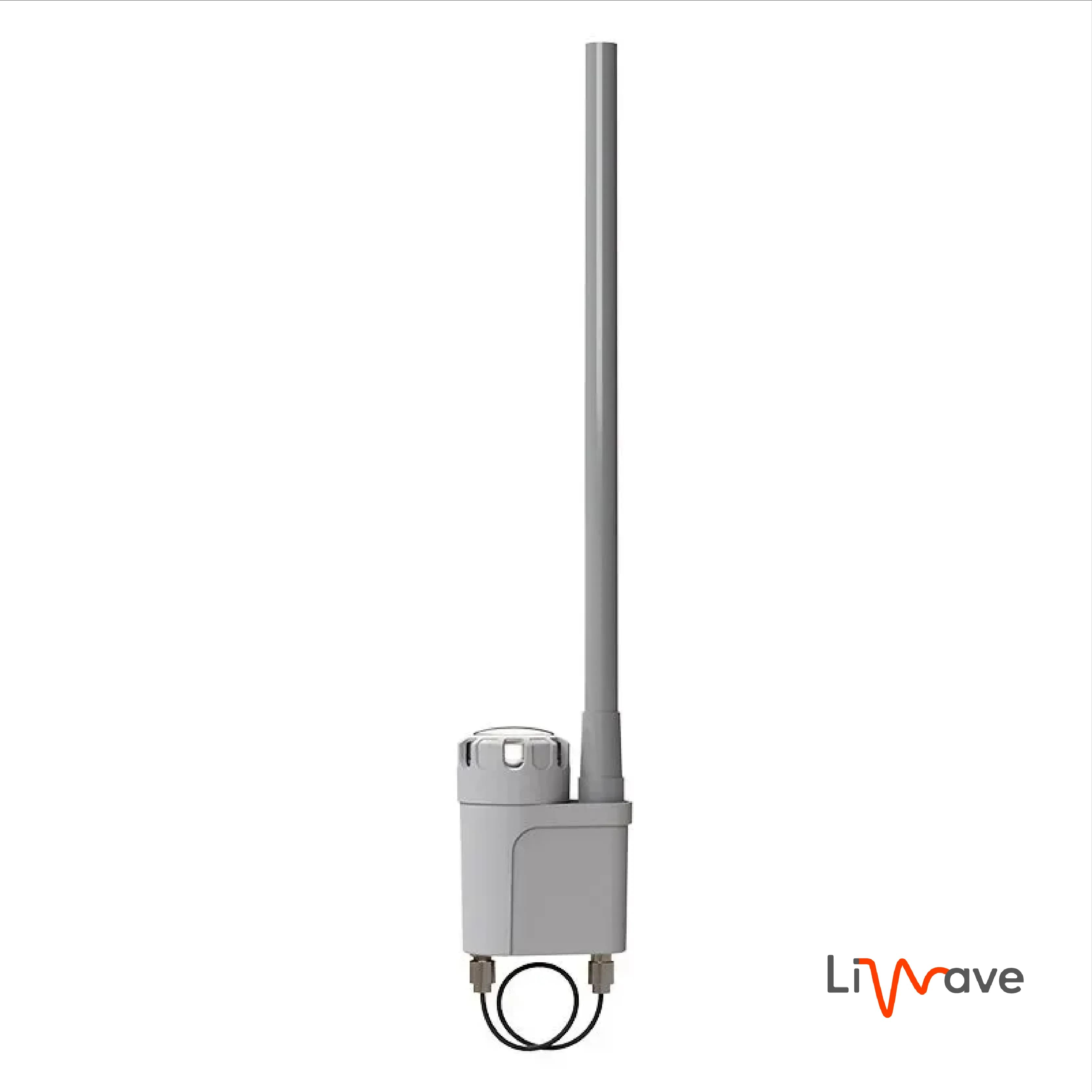

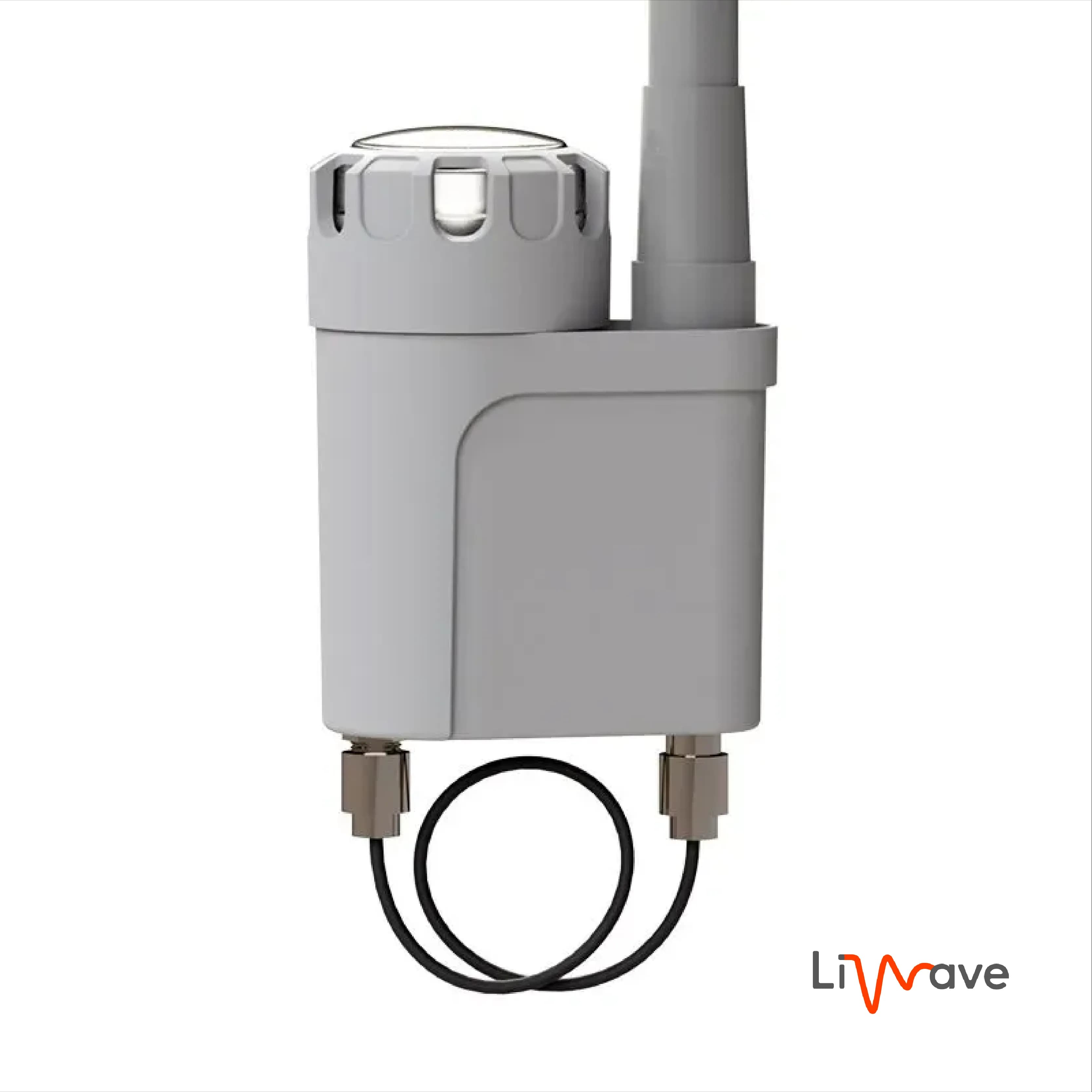

DITRA LiWAVE Base Station Lite
Ultra-Compact Radio Gateway for Intelligent Lighting Management
The DITRA LiWAVE Base Station Lite is a a lightweight alternative to the Base Station, used for wireless luminaire control over radio channel with direct 2G/4G connection to the management system.
It enables remote control, monitoring, and energy consumption tracking for each luminaire.
Operating on the 868/915 MHz frequency, it supports up to 1000 LiWAVE Nodes with communication ranges of up to 5 km, depending on terrain and building density.
The device connects to the DITRA server via a 2G/4G mobile network and allows for remote configuration through DITRA software.
Des
Long-range communication up to 5 km
Compact and lightweight design, ensuring easy deployment
Operates independently of other wireless networks
Utilizes license-free radio frequencies for LiWAVE communication
Seamlessly integrates wireless lighting networks into IoT systems
Built to withstand harsh climates with IP66-rated protection
- Mechanical
Housing: Plastic case
Material: Metal, Plastic
Dimensions, mm: 135,1(L) x 188,5(724,5)(H) x 87,8(W)
Mass: 3.0 kg
Mounting: Pole or wall- Power & Electrical
Input Voltage: ~100-240 V, 50/60 Hz
Input Power (max): 8W- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 99%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 month- Inputs / Outputs
Antenna input: 1
- Interfaces and Protocols
Navigation: GPS
Radio Channel: GSM 850/900/1800/1900
LiTouch communication: ISM band 868/915 MHz- Configuration / Indication
Setup: Remote via 2G/4G
Indication: LEDs for GSM and LiWAVE activity- Package Contents
LiWAVE Base Station Lite
