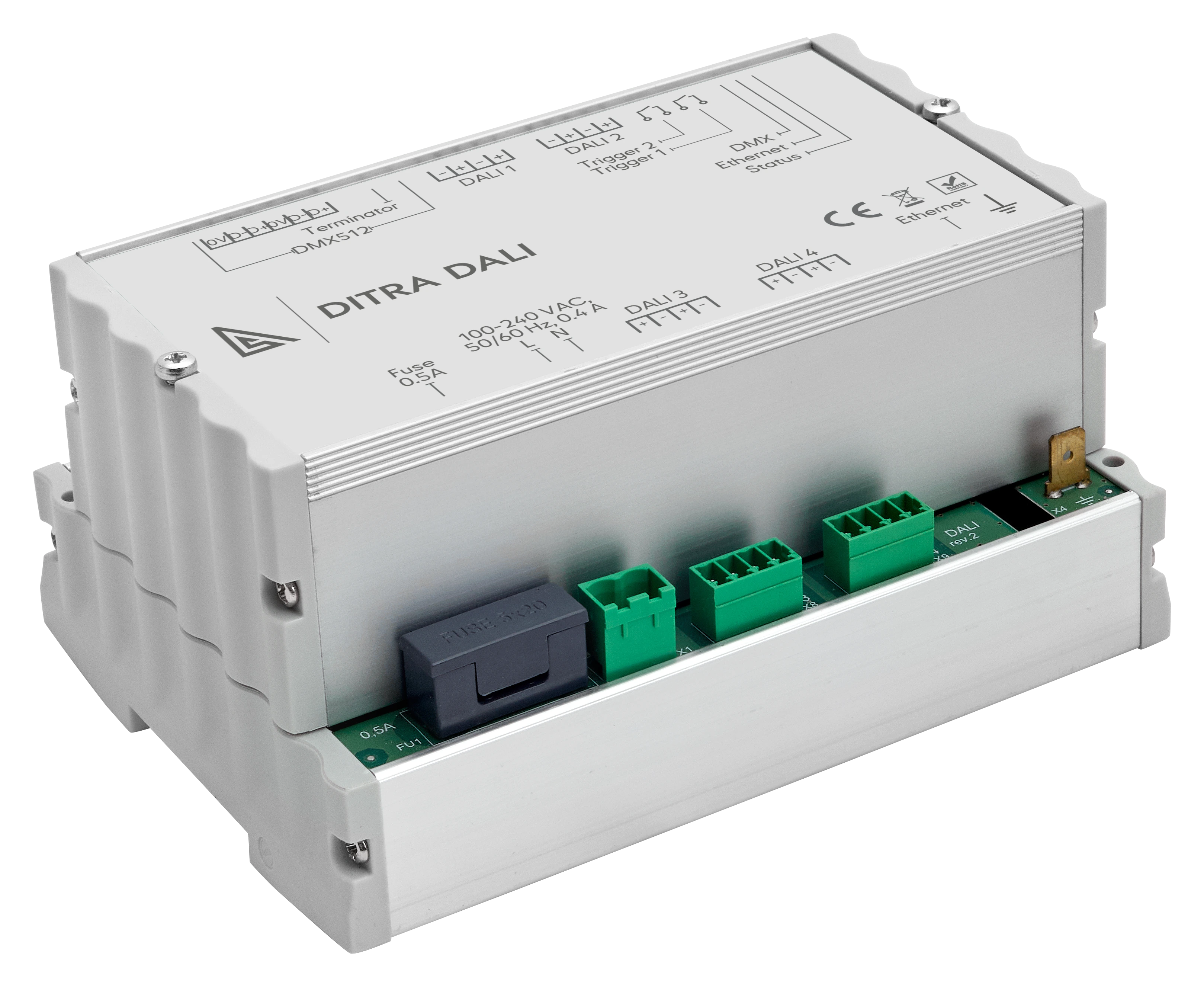

DITRA DALI
DALI Gateway for Intelligent Lighting Control and Management
The DITRA DALI – Smart Ethernet/RS-485/DALI Converter for Street Lighting Control
The DITRA DALI is an intelligent converter designed for street lighting management, supporting Ethernet, RS-485, and DALI interfaces for seamless control and communication.
Powered by 100-250 V, it features an Ethernet port with a 10/100 Mbit/s connection for configuration and data transfer.
The device is configured via a user-friendly web interface, allowing easy setup of DALI lines and connected equipment.
Designed for indoor installations or outdoor shelters, it operates reliably in extreme temperatures and is mounted on a DIN rail for convenience and durability.
Permanently laser-etched aluminum housing for durability and identification
Operates reliably at voltages up to 305 V for versatile applications
Equipped with a single Ethernet port for seamless connectivity
Profile saving function for quick and easy configuration management
Supports fixed IP address for secure and direct access to settings
Intuitive web interface for simplified setup and control
Galvanic isolation of RS-485 ports for enhanced protection and reliability
Fanless cooling design with no vents or holes for maintenance-free operation
- Mechanical:
Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 142(L) x 74,5(H) x 105(W)
Mass: 0.85 kg
Mounting: DIN (8 modules) rail - Power & Electrical:
Input Voltage: ~90-250 V, 50/60 Hz
Input Power (max): 5 W
Mains Fuse: 0.5 A - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Communication interfaces: DALI, RS-485, Ethernet
Max length of RS-485 line: 1500 m - Inputs / Outputs:
DALI ports: 4
DALI connectors: terminal blocks 15EDGVC-3.5-04
Dry contact inputs: 2 - Configuration / Indication:
Setup: remotely via cabinet controllers, locally via the web interface
Indication: LEDs for Status, Ethernet and RS-485 activity - Package Contents:
DITRA DALI
Connector set
- DITRA DALI
- : DIT-DALI-EXT-4DAL
