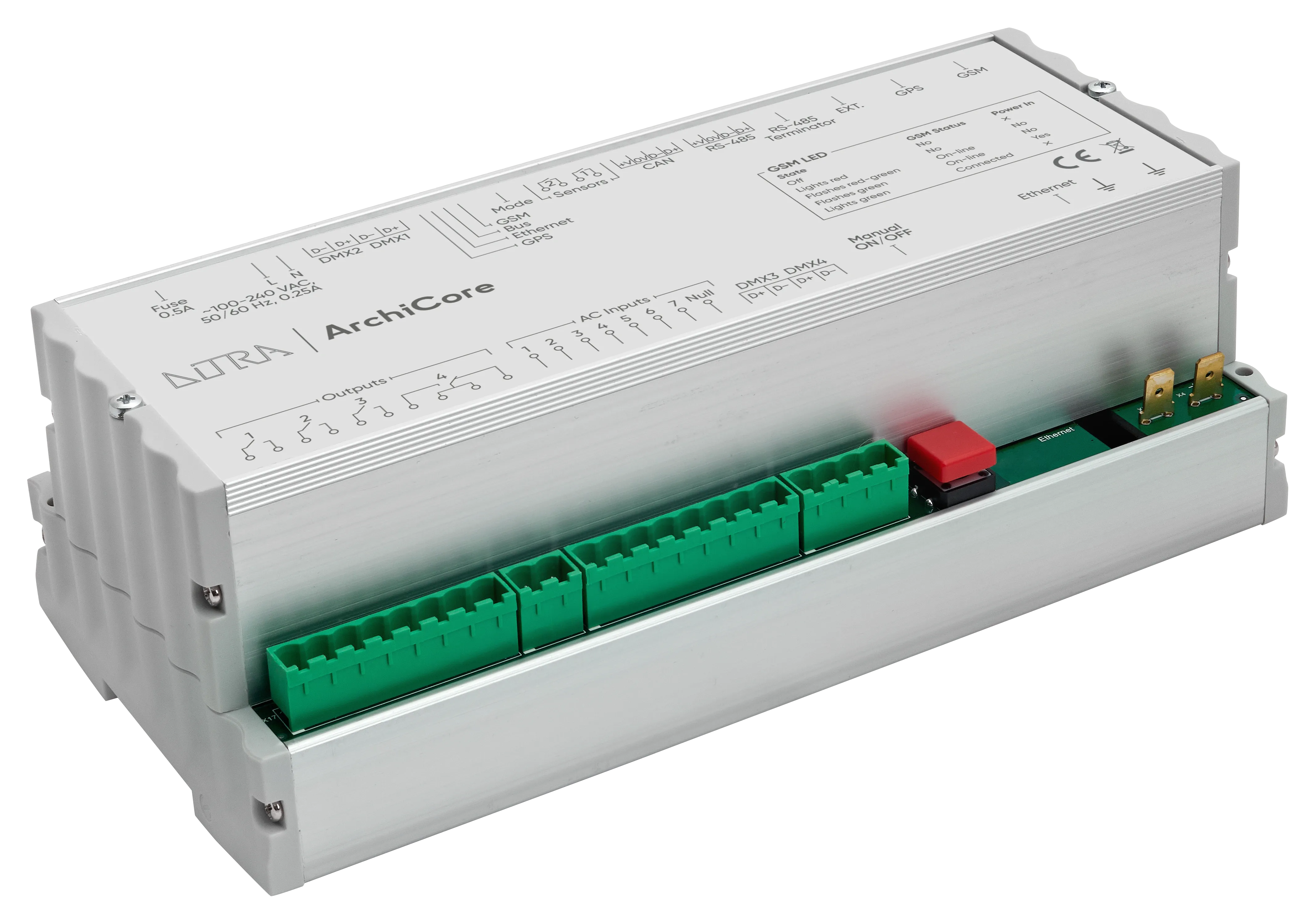

DITRA ArchiCORE

Advanced Controller for Architectural Lighting Control

The DITRA ArchiCORE sets a new standard in static and dynamic lighting management, offering unparalleled precision and adaptability for modern architectural projects. Designed to seamlessly integrate with DMX512 through an Ethernet interface, it ensures flawless network synchronization and supports AC power inputs (100-250 V) with an internal backup power system for uninterrupted operation.

Remote control is made simple with an intuitive web interface and an integrated GSM modem, allowing real-time management and diagnostics from anywhere. LED indicators for GSM, GPS, Ethernet, and RS-485 communication provide instant status updates for complete oversight.

Built for durability and flexibility, the DITRA ArchiCORE excels in both indoor and outdoor environments. Its compact design, optimized for DIN rail mounting, requires minimal space with a sleek 12-module footprint, making it the ideal core for efficient, reliable, and adaptable lighting control systems.

  • • Mastery of 2048 lighting channels, delivering a blend of simplicity and precision

    • Galvanically isolated DMX512 output with RDM support ensures safe and reliable communication

    • Real-time adjustments for dynamic scenario or setting changes

    • Integrated 2G/3G/4G modem for seamless management and connectivity

    • Dual interfaces: DMX and Ethernet for comprehensive network integration

    • RS-485 port for direct data access from electric meters and sensors

    • Proactive fault detection enhances system reliability

    • Voltage resilience up to 305 V provides robust surge protection

    • Non-volatile memory safeguards critical configurations

    • Precision scheduling powered by GPS and an astronomical clock for accurate timing

  • Mechanical:

    Housing: aluminum DIN mounted case
    Material: metal, plastic
    Dimensions, mm: 212(L) x 74,5(H) x 105(W)
    Mass: 0.85 kg
    Mounting: DIN (12 modules) rail

  • Power & Electrical:

    Input Voltage: ~100-240 V 50/60 Hz
    Input Power (max): 5 W
    Mains Fuse: 0.5 A

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 95%
    IP Rating: IP 20
    Certification: CE, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Supported protocols: DMX512, RDM, Ethernet
    Navigation: GPS
    Serial interface: RS-485, CAN, DMX
    Radio Channel: GSM 850/900/1800/1900
    Max length of RS-485 line: 1500 m
    Lan: Ethernet 10/100 Base-TX
    Flash memory: 1 Gb

  • Inputs / Outputs:

    Relay outputs: 4
    Voltage control inputs: 7
    Max voltage and current at outputs: 240 V, 5 A
    Max voltage at inputs: 240 V
    Number of sensor inputs: 2
    Connectors: terminal blocks 2EDGVC, 15EDGVС

  • Configuration / Indication:

    Setup: locally via Ethernet; Remote via 2G/3G/4G
    Indication: LEDs for GSM, GPS, Ethernet and RS-485 activity

  • Package Contents:

    DITRA ArchiCORE
    Connector set

DITRA ArchiCORE, AC, 2DMX, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: E
  • : DIT-MNR2-4G0407
DITRA ArchiCORE, AC, 2DMX, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: A
  • : DIT-MNR2-4GA0407
DITRA ArchiCORE, AC, 4DMX, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: E
  • : DIT-MNR4-4G0407
DITRA ArchiCORE, AC, 4DMX, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: A
  • : DIT-MNR4-4GA0407
