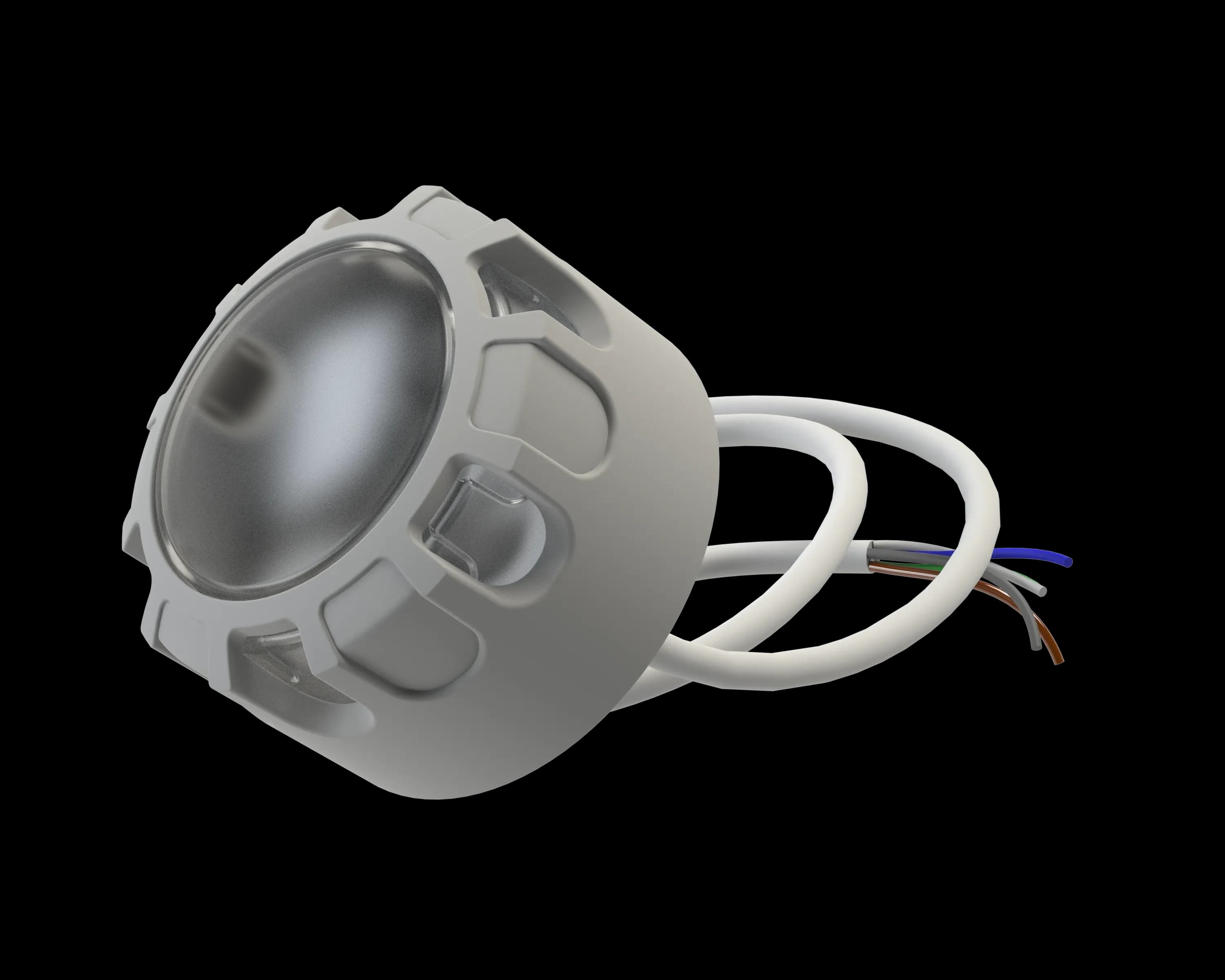

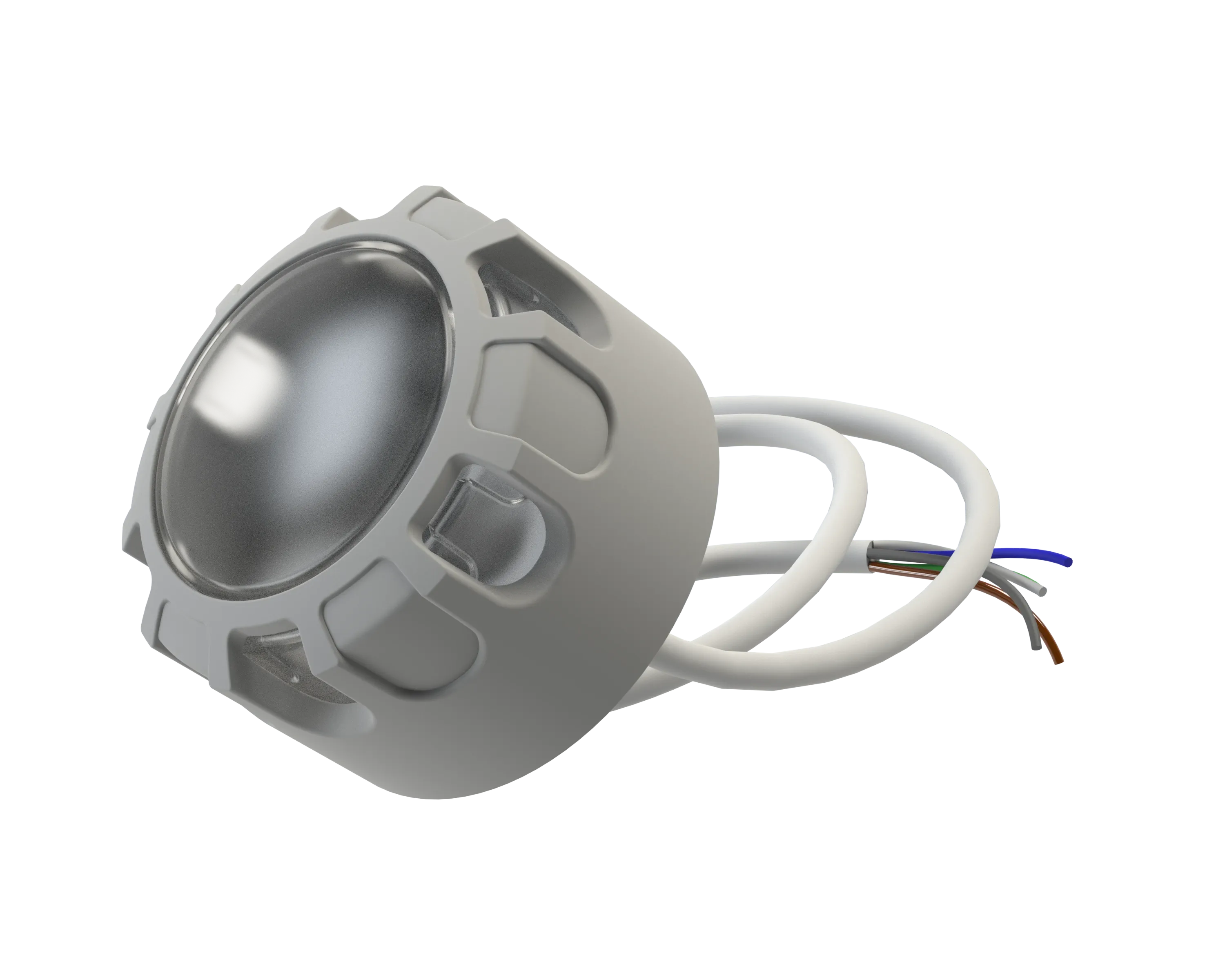

Ultra-compact Segment Controller for Street Lighting

The DITRA Mini Street Light Controller is designed for managing and diagnosing street lighting systems. It controls starters and auxiliary modules within the DITRA system and transmits data to a central server. Additionally, it supports the control of a single group of luminaires.

For communication with DITRA devices, the controller uses an RS-485 interface, while data transfer to the DITRA server is carried out via GSM, 2G, 4G, or NB-IoT mobile networks. A built-in GPS module provides time synchronization and geo-location capabilities.

Remote management is supported through the DITRA software platform.

The device is intended for direct installation inside lighting control cabinets. Alternatively, it can be mounted separately or connected directly to luminaires through a wired interface.

  • Ultra-compact, waterproof IP66 enclosure for reliable outdoor use

    Supports voltages up to 305V for high durability

    Compatible with luminaires up to 1000W

    Built-in daylight sensor for automatic lighting control

    Integrated GPS module for location tracking and time synchronization

    RS-485 interface for seamless wired communication

    Wireless connectivity via GSM, 2G, 4G, and NB-IoT networks

    Control of a single luminaire group for targeted management

    Remote firmware updates for easy maintenance and upgrades

  • Mechanical:

    Housing: Solid case
    Material: Plastic
    Dimensions, mm: 87(D) x 91,3(69,3)(H)
    Mass: 0.2 kg
    Mounting: Luminaire case, pillar, etc

  • Power & Electrical:

    Input Voltage: ~100-270 VAC, 50/60 Hz or 12-30V
    Input Power (max): 5 W
    Max load Power: 1000 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP66
    Certification: CE, RoHS
    Warranty: 36 Month

  • Inputs/ Outputs:

    Connectors: Wire
    Sensors: Embedded daylight sensor

  • Interfaces and Protocols:

    Control output interface/protocols: RS-485
    Navigation: GPS
    Radio Channel: GSM 850/900/1800/1900
    Transmit Power Range(s):
    Class 4 (+33dBm ± 2dB) for EGSM 850/900 Class 1 (+30dBm ± 2dB) for GSM 1800/1900

  • Configuration/ Indication:

    Setup: Remote via DITRA software
    Indication: LED

  • Package Contents:

    Street Light Controller DITRA CORE MINI

Street Light Controller DITRA CORE MINI, Wire, 2G, 1 relay, 1 input, RS, GPS
  • : DIT-CO-MIN-W-2GRS
Street Light Controller DITRA CORE MINI, Wire, 2G/4G, 1 relay, 1 input, RS, GPS, Region: E
  • : DIT-CO-MIN-W-4GRS
Street Light Controller DITRA CORE MINI, Wire, 2G/4G, 1 relay, 1 input, RS, GPS, Region: A
  • : DIT-CO-MIN-W-4GARS
Street Light Controller DITRA CORE MINI, Wire, NB-IoT, 1 relay, 1 input, RS, GPS
  • : DIT-CO-MIN-W-NBRS
