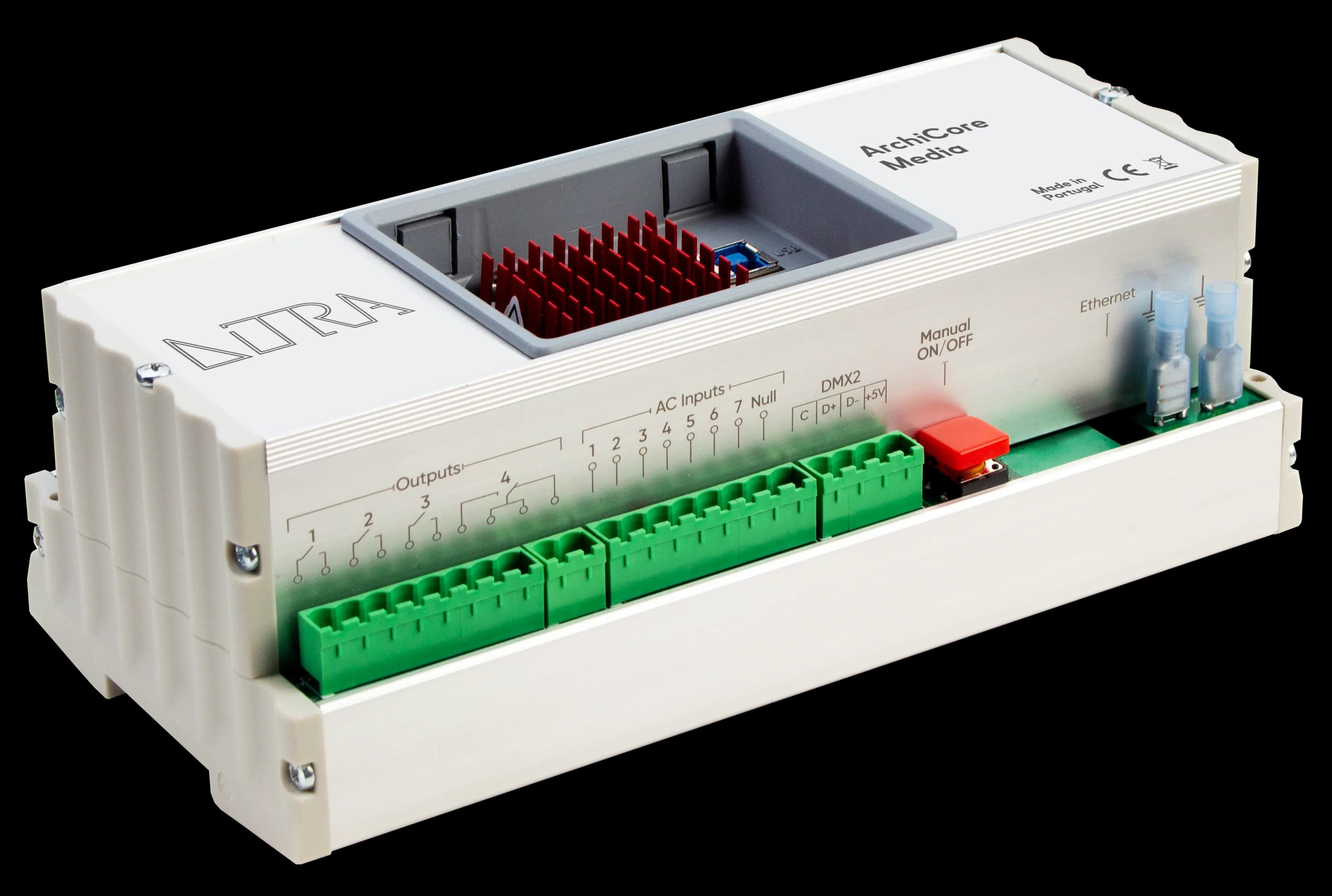

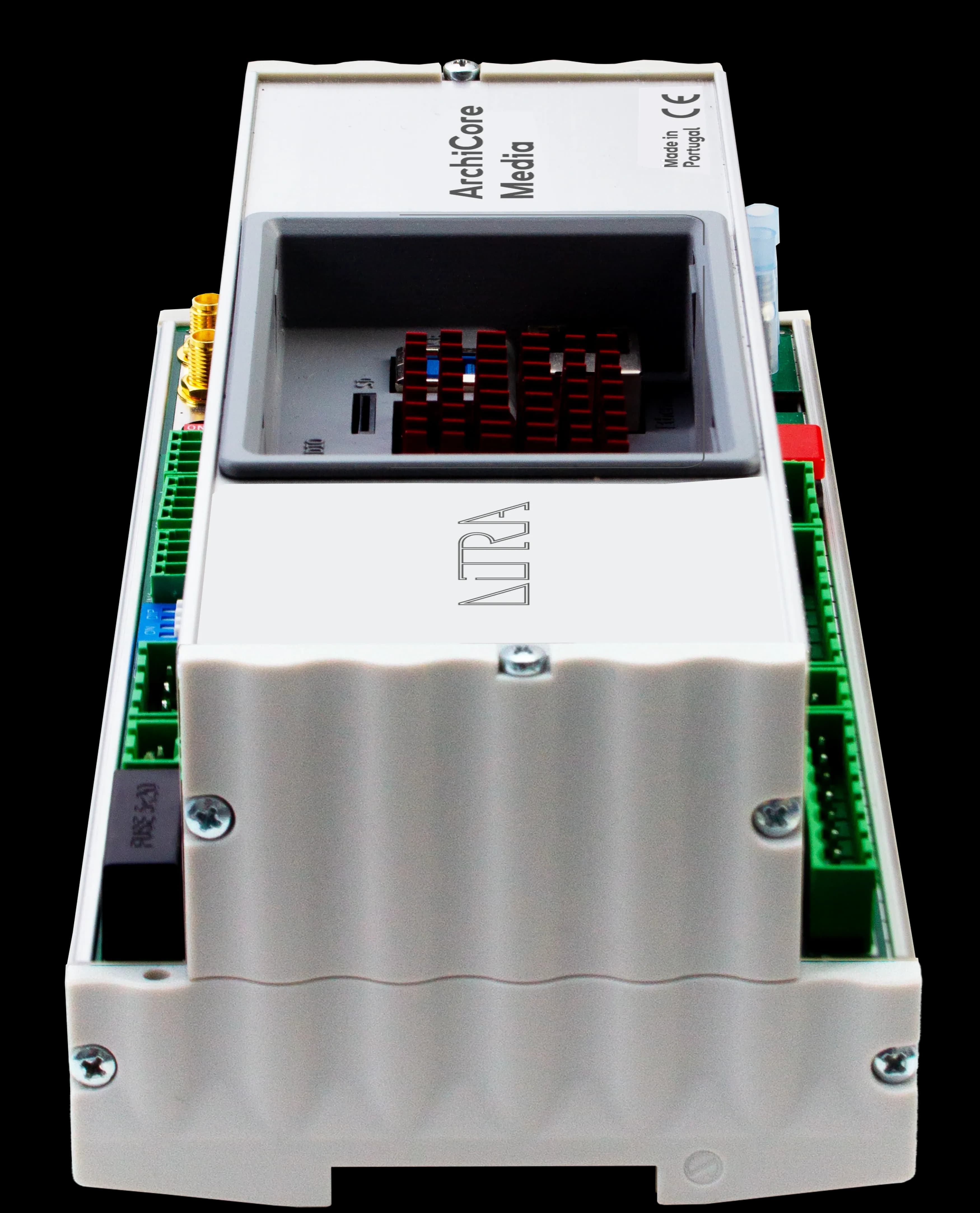

DITRA ArchiCORE MEDIA
DMX Controller for Architectural Lighting with Media Playback
DITRA ArchiCORE MEDIA is an architectural lighting controller that outputs 2 DMX512 streams and up to 256 Art-Net streams and plays audio and video over HDMI and RCA. Scenes and media are stored on an SD card and play back standalone, with no computer connected. It also controls cabinet contactors through 4 relay outputs and confirms their operation through 7 voltage inputs.
It features non-volatile clock functionality, a built-in GSM 3G/4G modem, and interfaces for RS-485 (MODBUS) and CAN.
Additionally, it provides two inputs for connecting sensors, two integrated Ethernet interfaces, support for up to two SIM cards, and a built-in GLONASS/GPS module.
The controller also includes HDMI and RCA ports, and supports SD cards with a capacity of up to 16 GB.
It is mounted on a DIN rail (12 modules) for installation in lighting control cabinets. The power supply operates on AC 100-240 V.
Reference design: ArchiCORE MEDIA as the central controller for 220 stadium floodlights.
- 4 outputs for independent lighting group control
- 7 inputs for acknowledgment signals
- Support for 2 DMX512 streams and up to 256 Art-Net streams
- Interfaces: RS-485 (MODBUS), CAN, and Ethernet (2 ports)
- Wireless communication via built-in GSM/3G/4G modem with dual SIM support
- GPS/GLONASS module for geolocation and precise timekeeping
- HDMI, RCA outputs, and SD card support (up to 16 GB)
- Software integration with DITRA Scenario Module
- Operates at 100-240V AC and remains functional up to 305V
- Built-in backup power supply
- Aluminum housing with permanent laser engraving
- DIN-rail mounting (12 modules)
- Remote firmware updates
- Mechanical
Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 210(L) x 105(H) x 75(W)
Mass: 0.85 kg
Mounting: DIN (12 modules) rail- Power & Electrical
Input Voltage: ~100-240 V 50/60 Hz
Input Power (max): 5 W
Mains Fuse: 0.5 A- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE, RoHS
Warranty: 5 Years- Interfaces and Protocols
Supported protocols: DMX512, RDM, Art-Net/sACN
Navigation: GPS
Serial interface: RS-485, CAN, DMX
Radio Channel: GSM 850/900/1800/1900, WCDMA 900/2100, LTE
Max length of RS-485 line: 1500 m
Lan: Ethernet 10/100 Base-TX
Flash memory: up to 16 Gb
- Inputs / Outputs
Relay outputs: 4
Voltage control inputs: 7
Max voltage and current at outputs: 250 V, 5 A
Max voltage at inputs: 250 V
Number of sensor inputs: 2
Connectors: terminal blocks 2EDGVC, 15EDGVС- Configuration / Indication
Setup: locally via Ethernet; Remote via GSM/GPRS/3G/LTE
Indication: LEDs for GSM, GPS, Ethernet and RS-485 activity- Package Contents

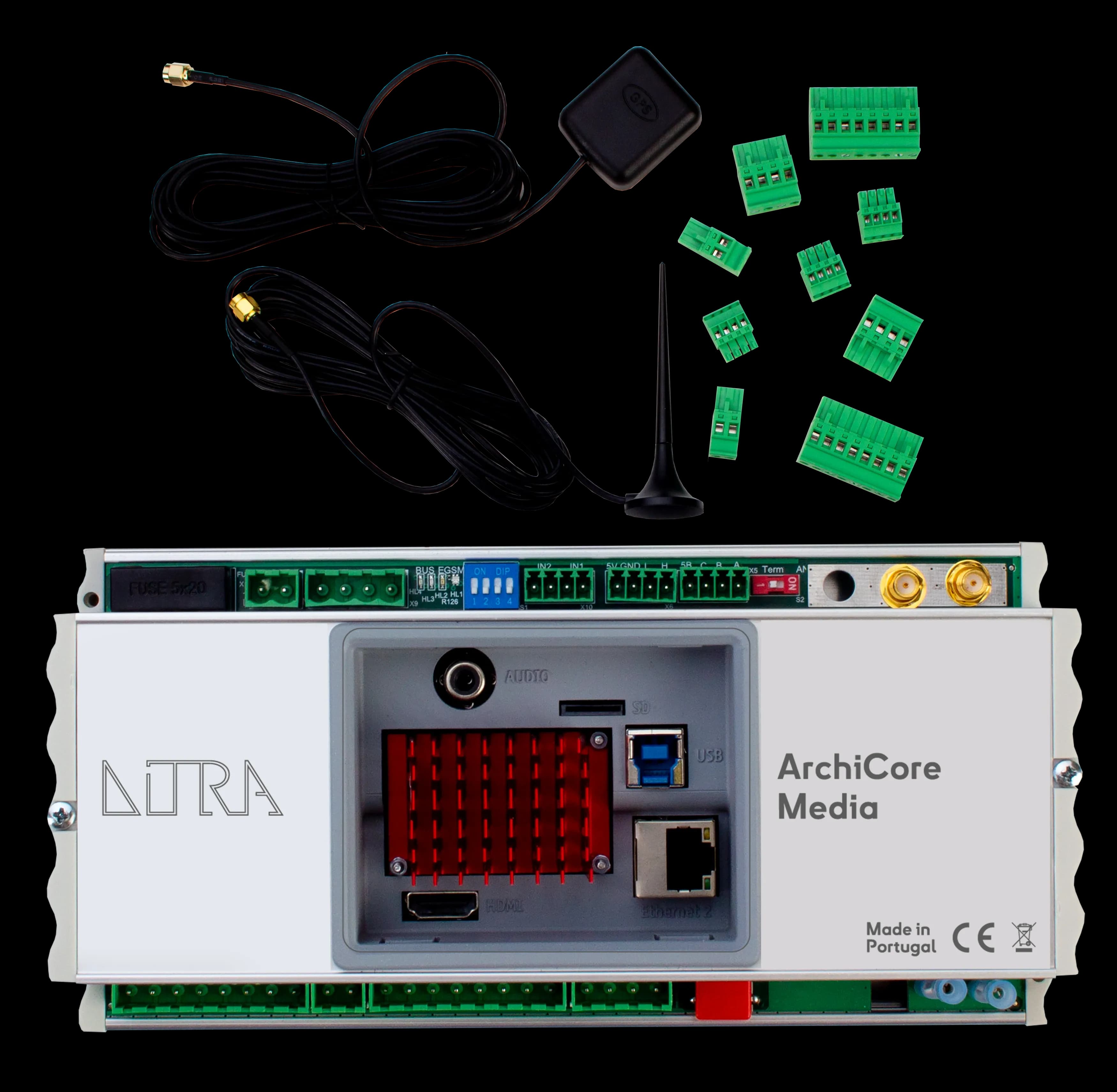

DITRA ArchiCORE MEDIA
Connector set
GSM antenna

DITRA ArchiCORE
Central Architectural DMX Controller for Lighting Control and Power Monitoring

ArtGATE Guard
Bidirectional DMX/Ethernet converter with four optically isolated DMX ports, integrated 2-port Ethernet switch, PoE support, and full RDM functionality

ArtGATE Rail
DIN-rail Art-Net/sACN to DMX converter with up to 8 optically isolated DMX ports, dual Ethernet ports, PoE support, and trigger inputs for system automation and emergency scenarios

ArtGATE Shield
Outdoor-ready Art-Net/sACN to DMX converter with up to 4 optically isolated DMX ports, dual Ethernet ports, PoE support, and IP66-rated housing
