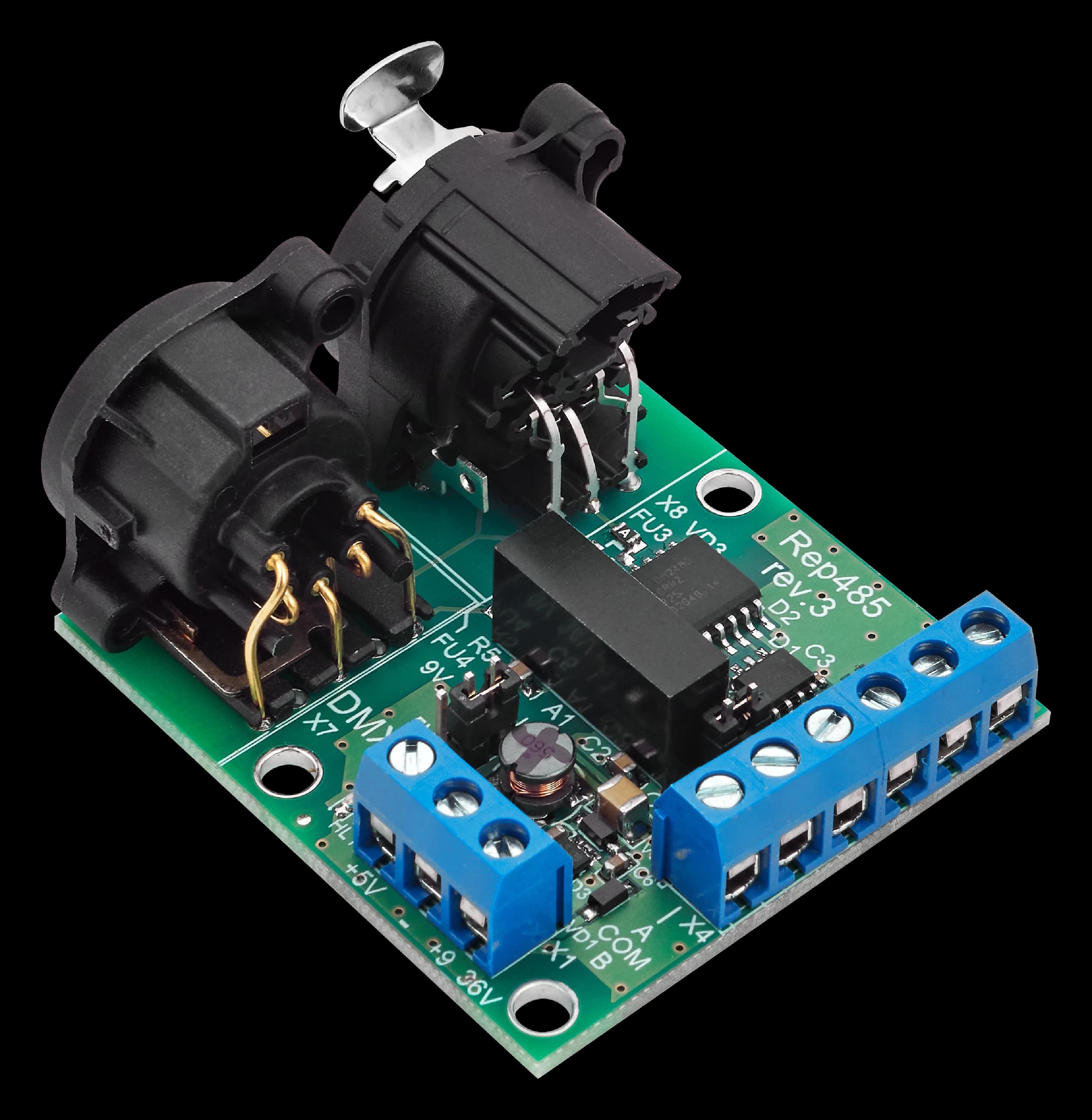

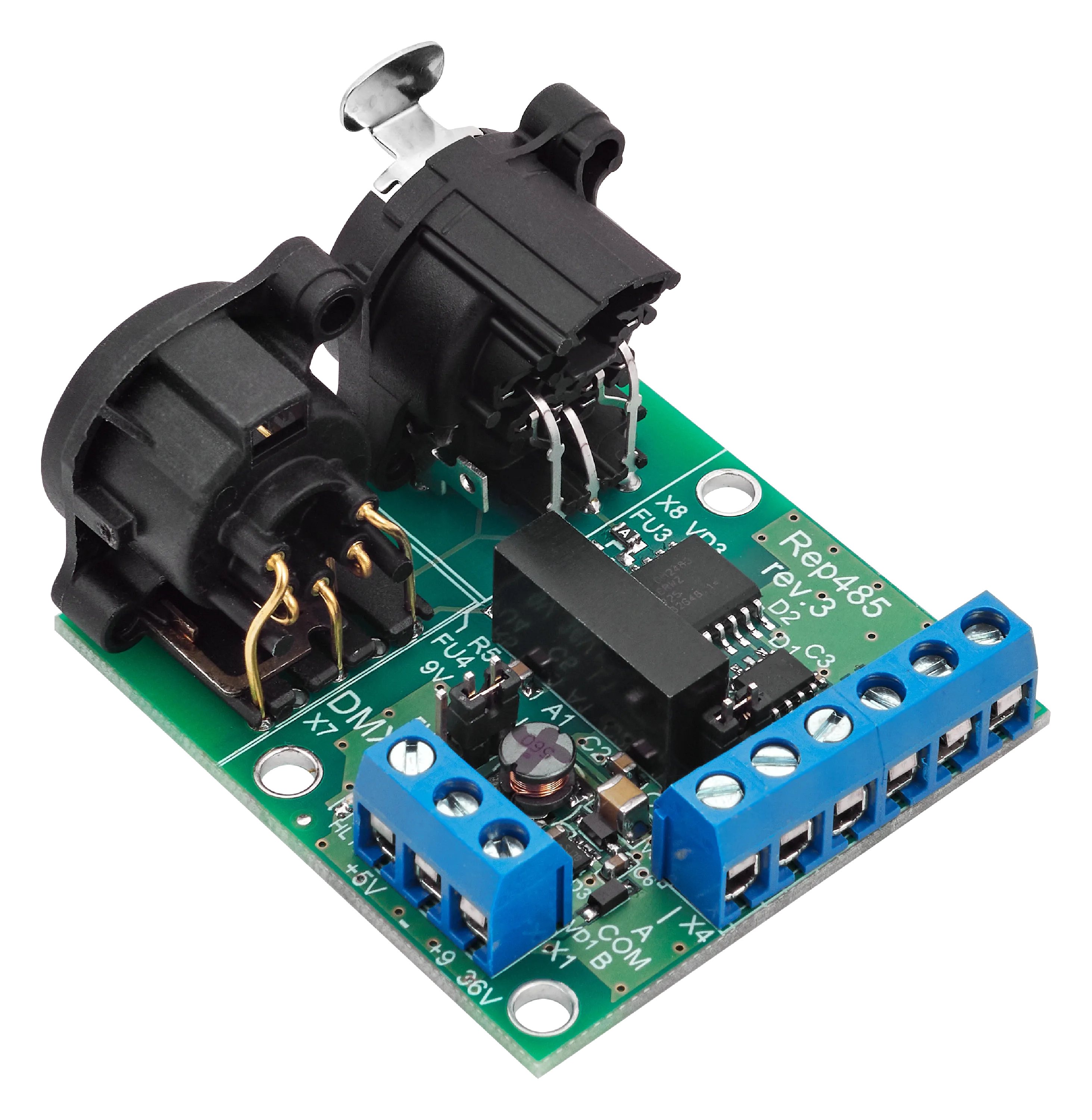

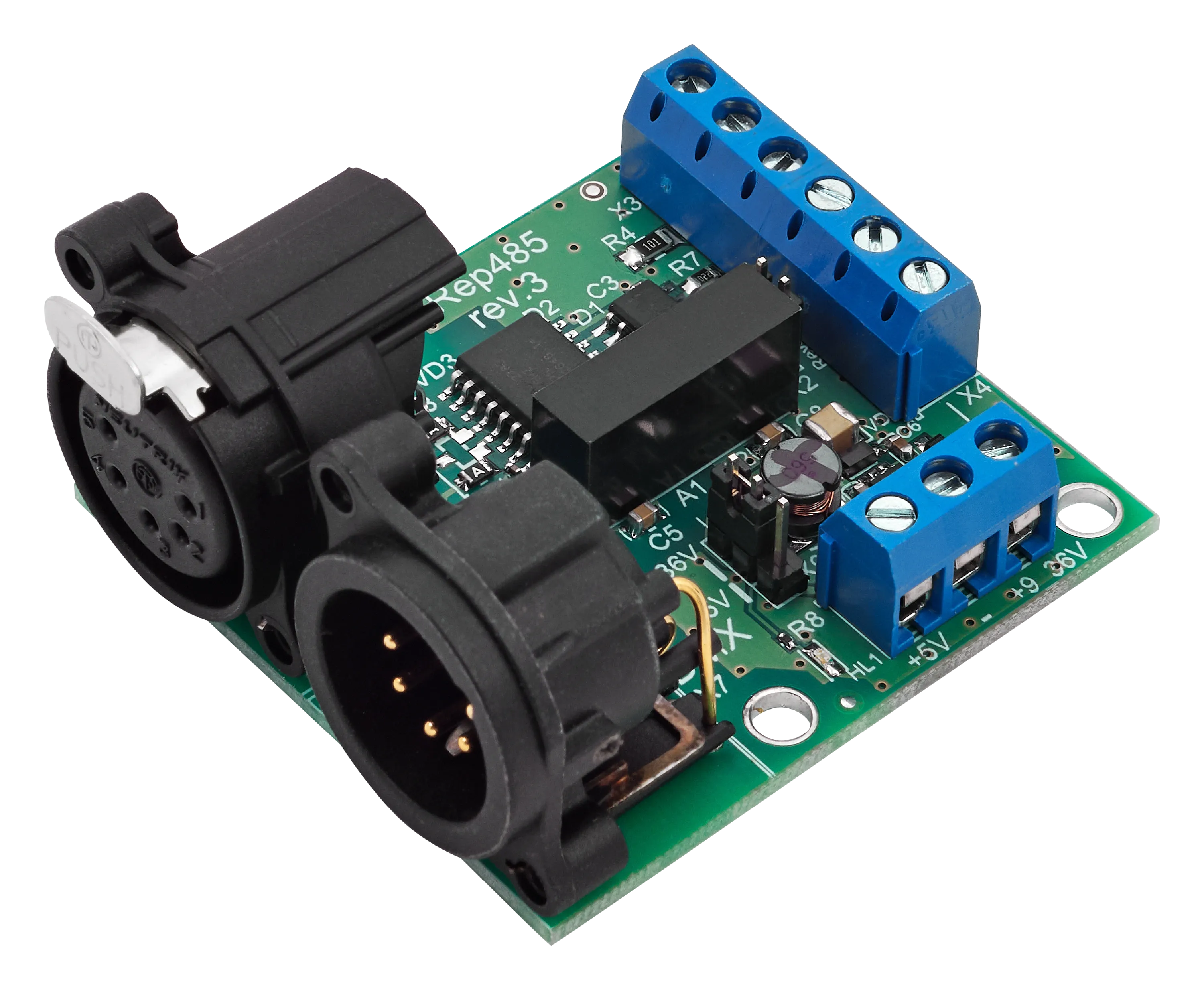

IsoGATE Bare

PCB-based DMX repeater and galvanically isolated signal booster for OEM integration into lighting fixtures and custom enclosures

IsoGATE Bare is a compact OEM DMX signal repeater and isolator board designed for seamless integration into third-party lighting fixtures, installations, and control cabinets. It provides galvanic isolation to protect control equipment from voltage surges and ensures signal integrity in complex or long-range DMX512 and RDM (ANSI E1.20) networks.

The board amplifies and regenerates DMX512 or other RS-485 based signals, helping to maintain reliable communication across installations with multiple devices or long cable runs.

IsoGATE Bare can be powered from either a 5V DC source or a 9–36V DC supply, offering flexibility for integ

Frameless OEM DMX512 repeater board for embedded integration

Supports DMX512 and RDM (ANSI E1.20) protocols

Galvanic isolation for DMX signal lines

Re-amplifies and extends RS-485 signals

Flexible DC power input: 5V or 9–36V

Customizable signal direction via hardware jumpers

Terminal block and XLR-compatible pinout options

Ideal for fixtures, wall boxes, or custom lighting systems

Mechanical: Housing: No
Dimensions, mm: 58 (L) x 33 (H) x 50 (W)
Weight: 0.05 kg
Installation: stage equipment, lamps, etc.
Power & Electrical: Power supply: 5V or 9-36V
Max Power Consumption: 1W
Environment: Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: no
Certificates: CE compliant, RoHS
Warranty: 36 months
Control / Data Connections: Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz

Inputs / Outputs: DMX ports: 2
DMX connectors: 1 XLR (3/5) M, 1 XLR (3/5) F
Galvanic isolation connectors:
terminal blocks DG306-5.0-03P
Configuration / Indication: Setting: 2 jumpers
Indicators: LED for power
Package Contents: IsoGATE Bare
