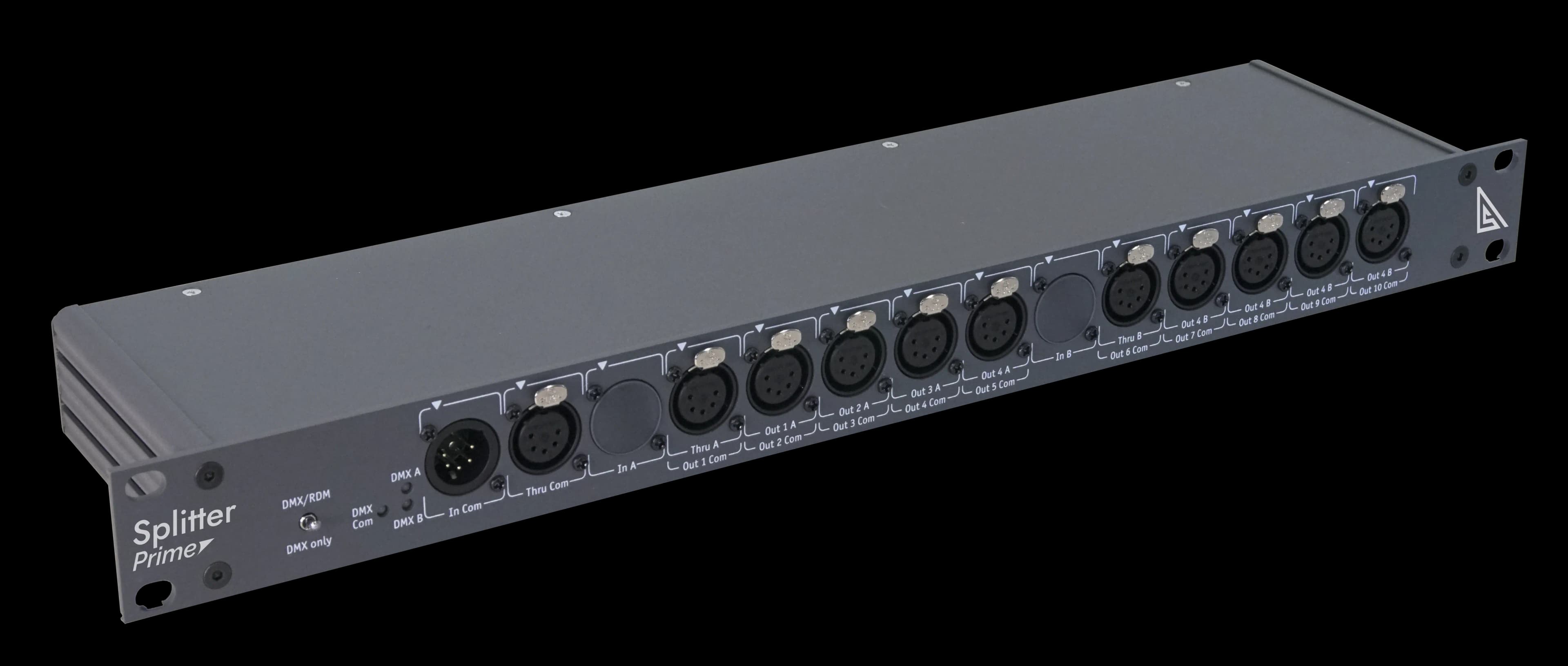

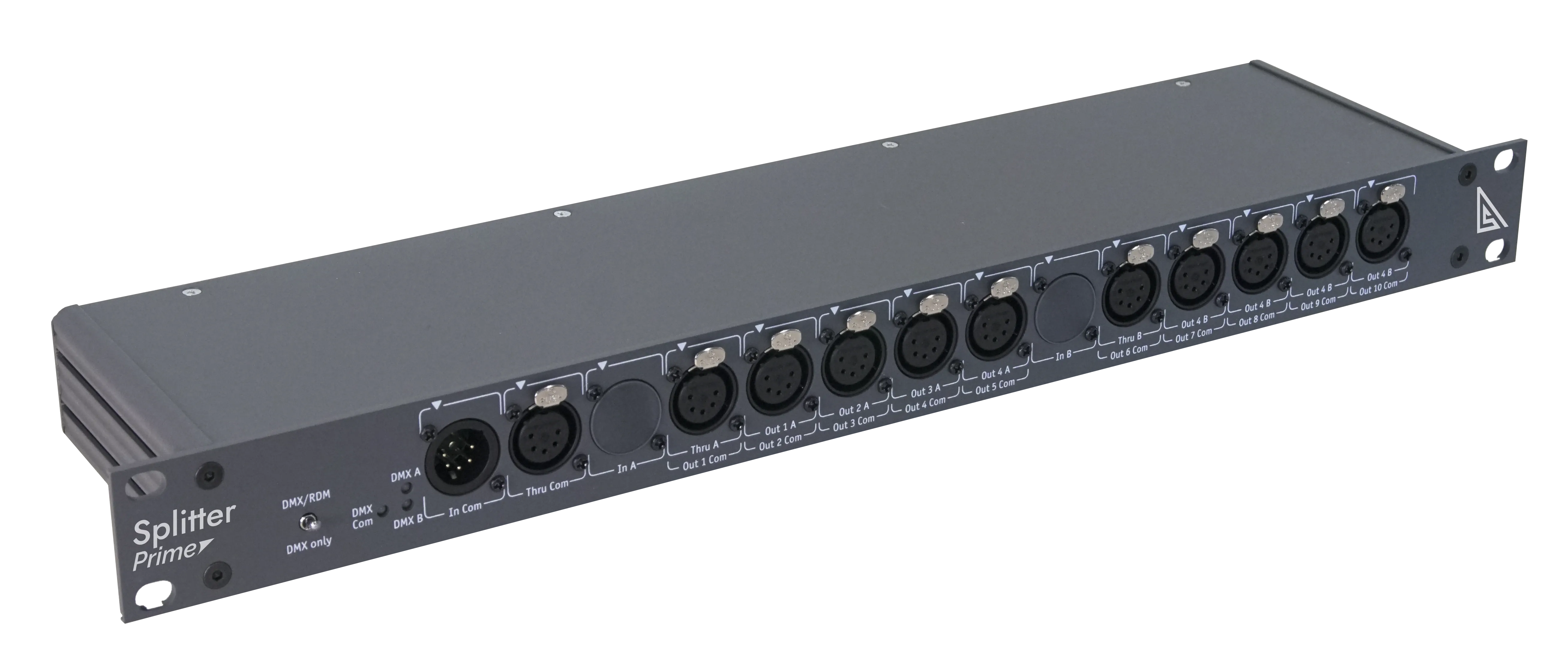

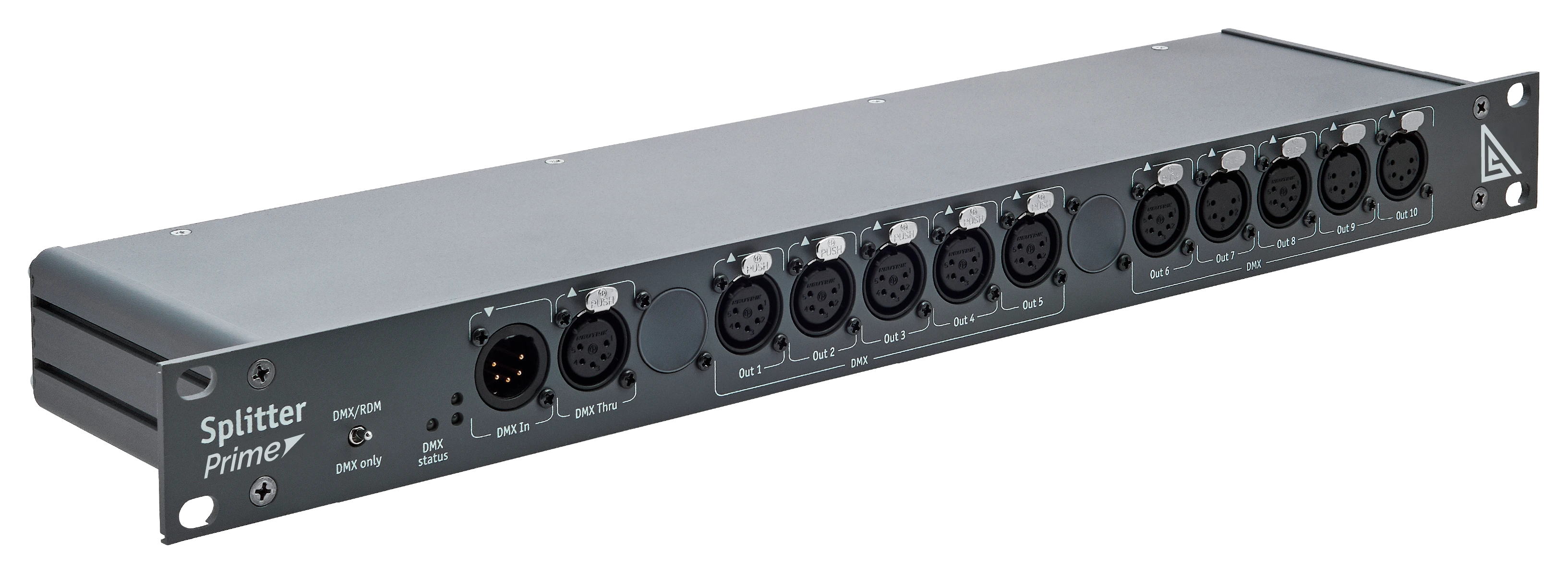

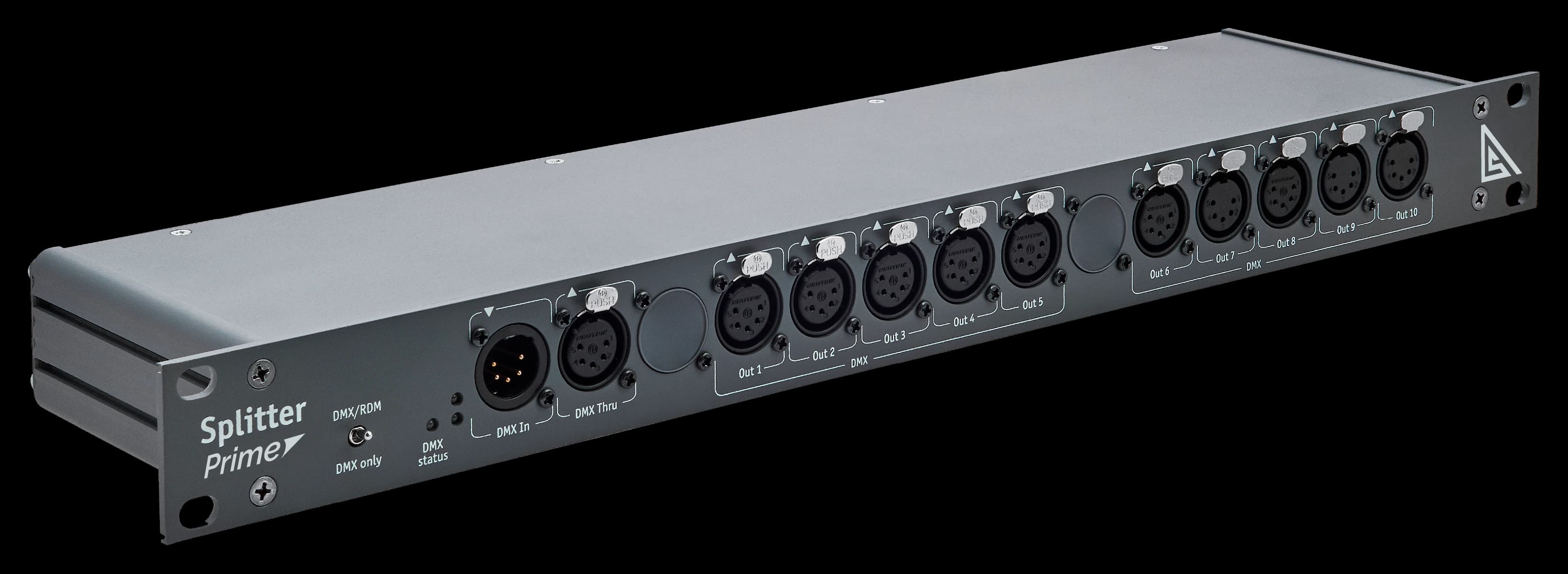

Splitter Prime
The Splitter Prime is a professional 1- or 2-channel DMX512 signal distributor designed for reliable control of lighting systems using the DMX512 standard.
It supports DMX512 and RDM (ANSI E1.20) protocols, operating with either 1 or 2 inputs to feed 5 or 10 outputs. Connection options include XLR (3-pin/5-pin) or etherCON.
The unit features intelligent indication for DMX512 signal presence, active data transmission, and RDM activity, along with an RDM filtering function via a dedicated switch.
Additional DMX Thru ports allow flexible patching, while automatic mode detection enables seamless switching between single and dual input
Compact 1U rack-mount form factor, 110 mm depth
Operates at voltages up to 305 V
One DMX Thru port for direct signal pass-through
Supports DMX512 and RDM (ANSI E1.20) protocols
Intelligent operating mode indication
RDM protocol filtering function
Galvanic isolation of DMX ports
Fanless natural cooling design without ventilation holes

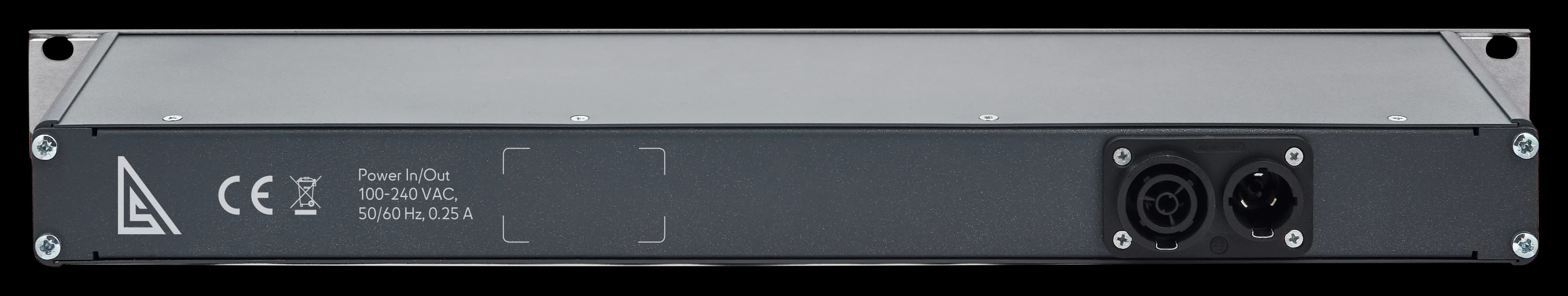

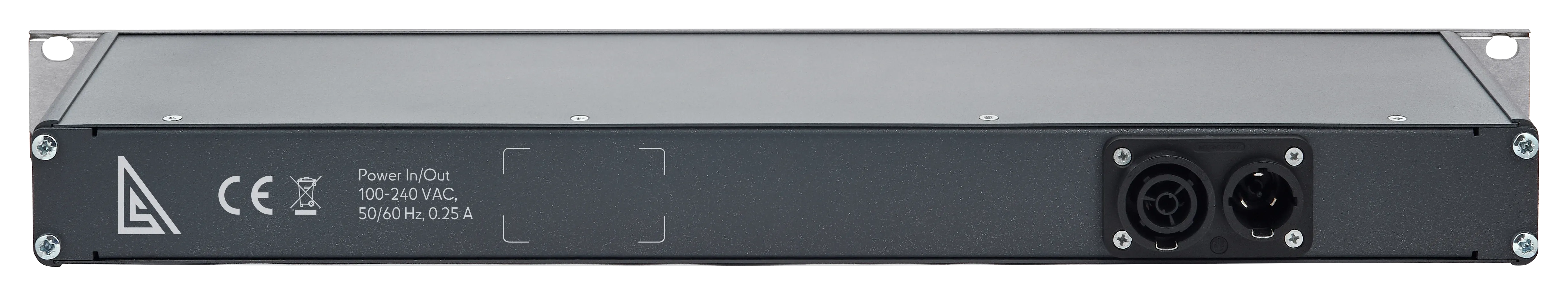

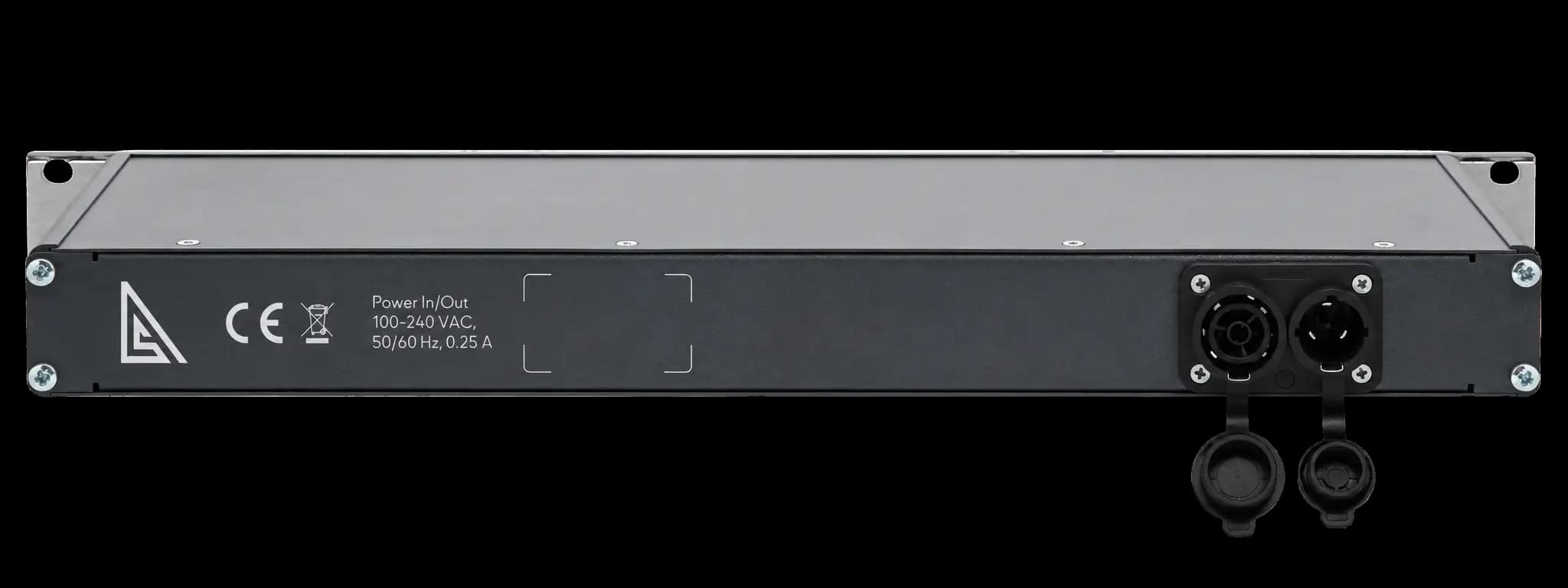

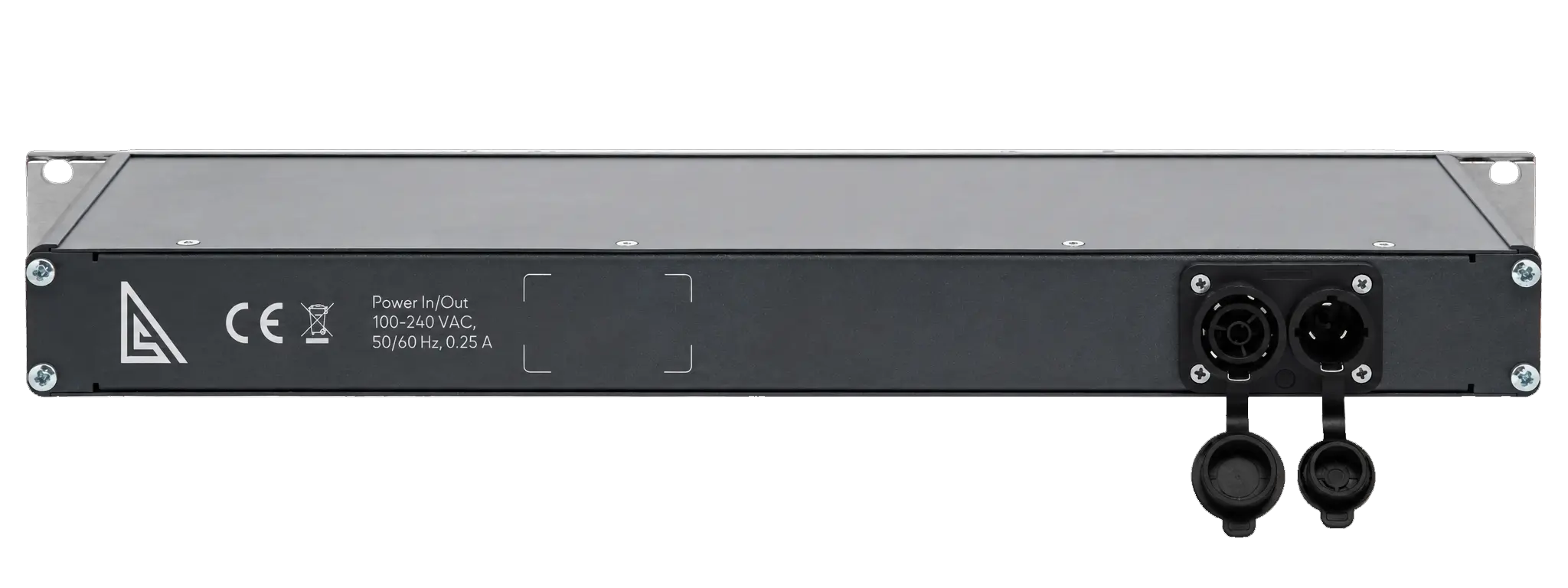

PowerCON TRUE1 power connector for secure locking AC connection
- Mechanical
Housing: Short 1U Rack
Material: metal
Dimensions, mm: 482,6 (L) x 43,6 (H) x 125,6 (W)
Weight: 1.2 kg
Mounting: in a rack, 1 module- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz
Max power consumption: 5W
Fuse: 0.5 A- Environment
Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: IP 54
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM, BeDMX
Refresh rate DMX data: 44 Hz
- Inputs / Outputs
DMX Inputs: 1
DMX Outputs: 5 or 10
DMX connectors: 1 XLR (3/5 / etherCON) M, 10 XLR (3/5 / etherCON) F
BeDMX ports: 1
PowerCON ports: 1 (TRUE1)- Configuration / Indication
Indicators: LED, for DMX inputs
- Package Contents
Splitter Prime
