GigaJET Prime
Rack-mounted DMX/Ethernet node combining an 8-port DMX splitter, 5-port Gigabit Ethernet switch, and fiber-optic media converter with SFP support for long-distance Art-Net/sACN distribution

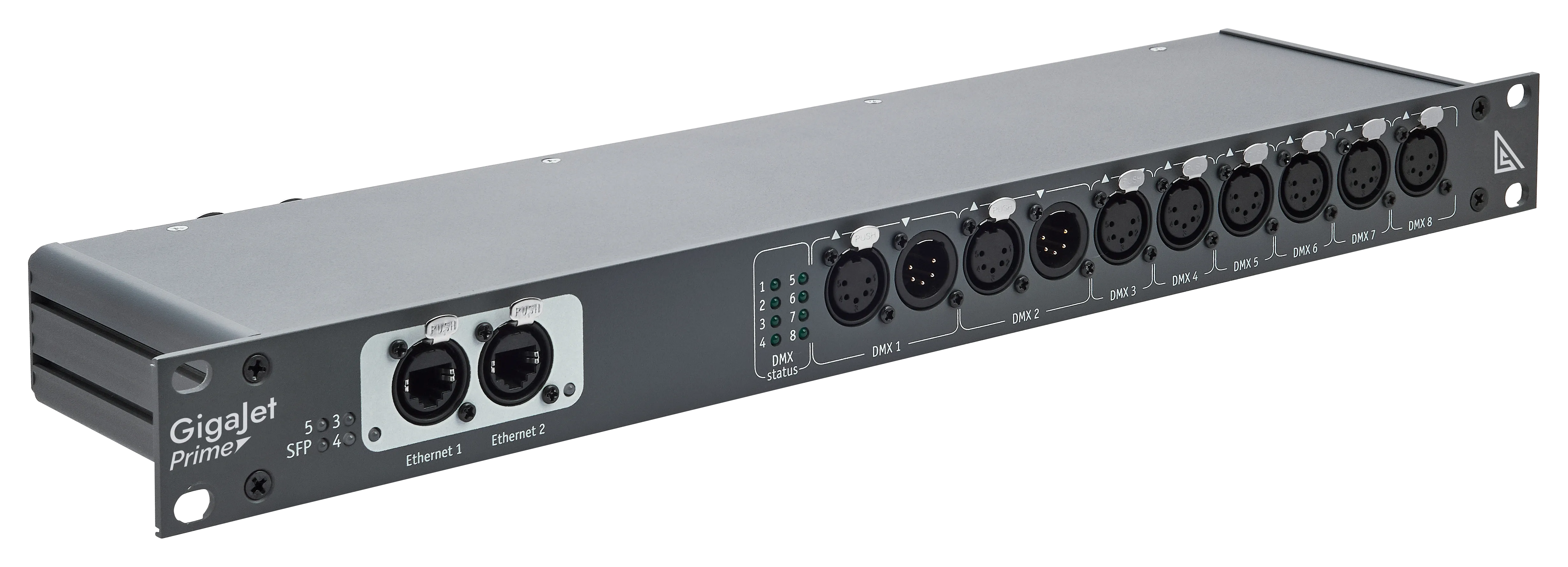

GigaJET Prime is a high-performance rack-mounted DMX node and bidirectional Ethernet converter designed for large-scale lighting networks. It combines advanced merging, signal conversion, backup, and distribution functions with a powerful Gigabit backbone — ideal for professional installations requiring speed, reliability, and long-distance connectivity.
The device features 8 optically isolated DMX512 ports (with 2 paired M/F connectors), each fully configurable as input or output. GigaJET Prime supports ArtNet (I–IV), sACN, KiNet (v1, v2), RTTrPL, and RDM (E1.20), allowing seamless integration into modern lighting systems with flexi
Eight optically isolated Neutrik DMX512 ports with two M/F passthrough pairs
Built-in 5-port Gigabit Ethernet switch (RJ45 EtherCON)
SFP port for multimode (up to 2 km) or single-mode (up to 10 km) fiber uplinks
Supports DMX512, RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL
Flexible merging modes: HTP, LTP, AUTO, PRIORITY
Galvanic isolation on all DMX ports
Dual power options: 90–315 V AC or PoE (IEEE 802.3af)
PowerCON TRUE1 inlet and outlet connectors for secure chaining
Records up to 4 static DMX presets for standalone playback or remote contact triggering.
Dual trigger inputs for external event handling or alarm triggers
Web interface, ArtGate Setting utility, and third-party ArtNet configuration tools
Fastest restart time after power failure
1U rackmount form factor with IP20 protection
Fanless design with no ventilation openings
- Mechanical
Housing: Short 1U Rack
Material: Heat-dissipating aluminum
Dimensions, mm: 482,6 (L) x 43,6 (H) x 125,5 (W)
Weight: 1.2 kg
Mounting: in a rack, 1 module- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz, PoE
Max power consumption: 5W- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM, ArtNet I, II, III, IV,
sACN draft, release, KiNet v1, v2, RTTrPL
Refresh rate DMX data: from 44Hz

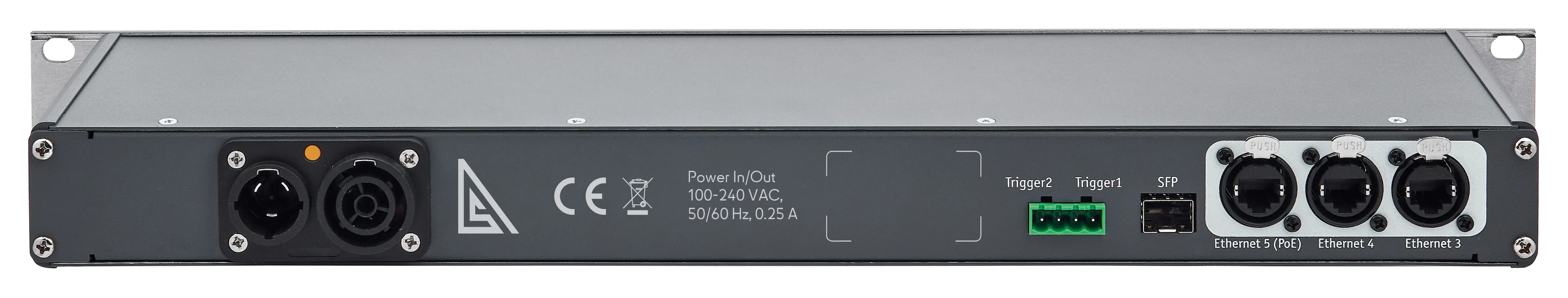

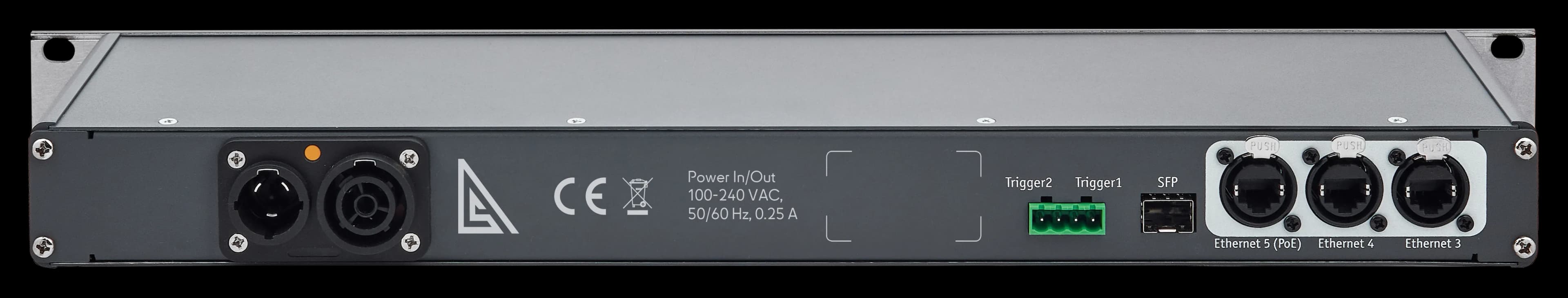

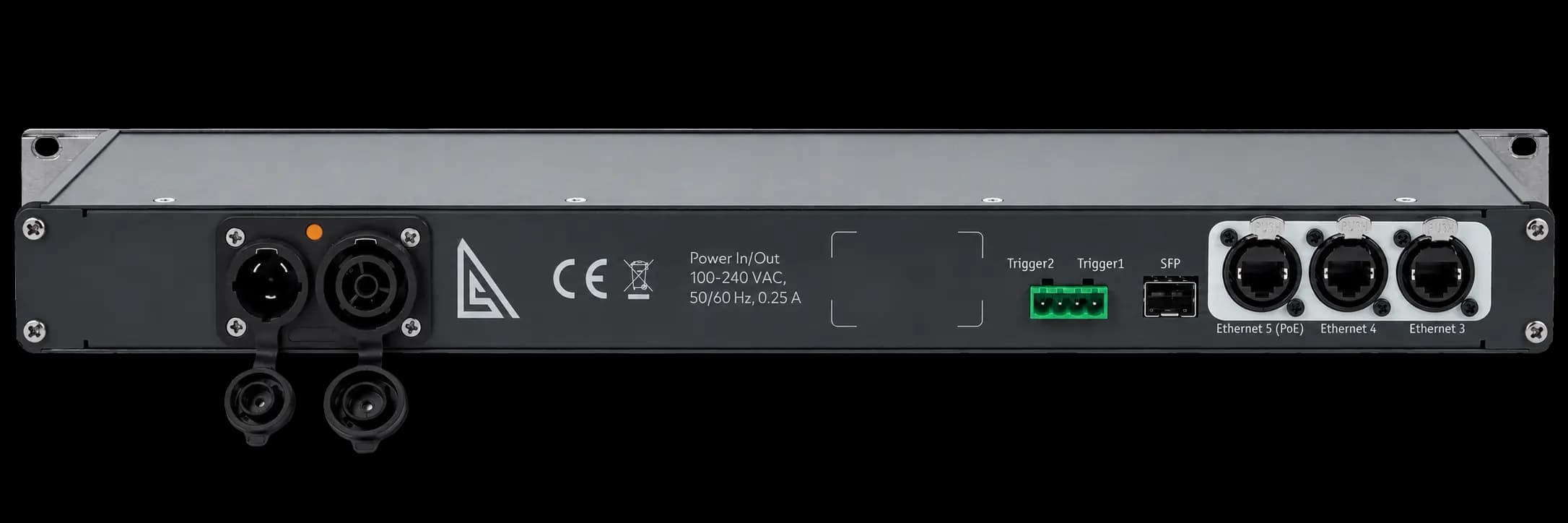

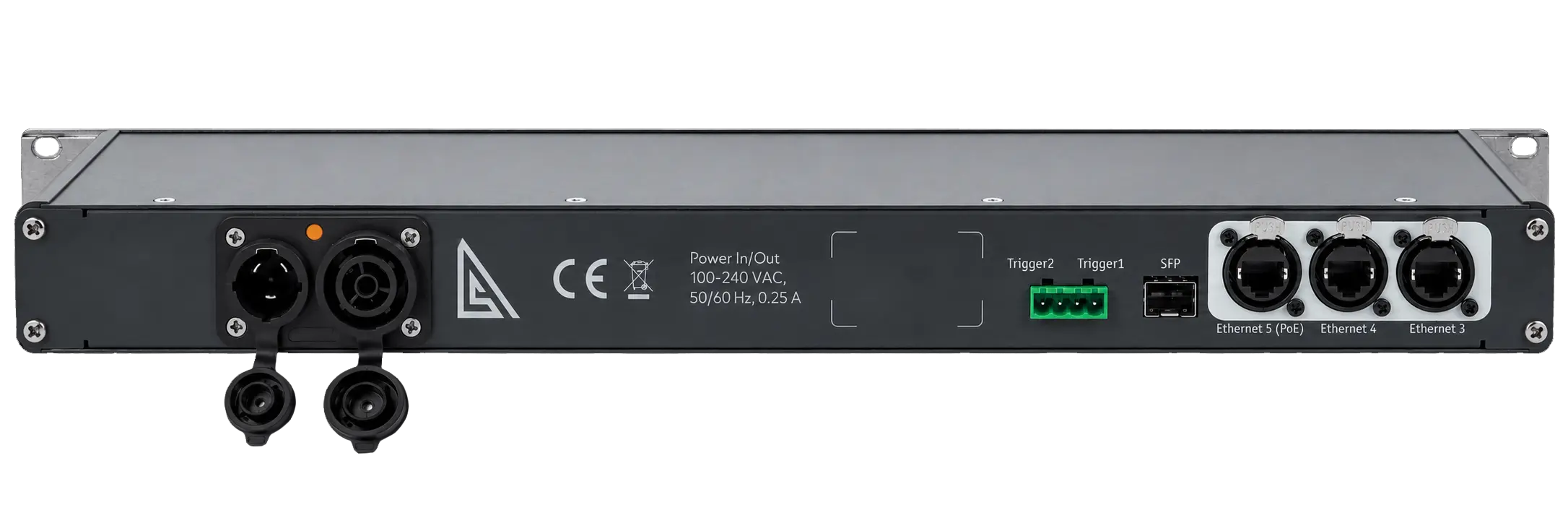

- Inputs / Outputs
DMX ports: 8
DMX Neutrik connectors: 2 XLR (5) M, 8 XLR (5) F
Ethernet ports: 5 (10/100/1000 Base-TX), PoE
Ethernet connectors: RJ-45 / etherCON
Optical connectors: 1 SFP
Trigger connectors: terminal block- Configuration / Indication
Configuration: web interface, ArtGate settings
Indicators: LED for DMX, Ethernet and SFP header- Package Contents
GigaJET Prime
Terminal blocks

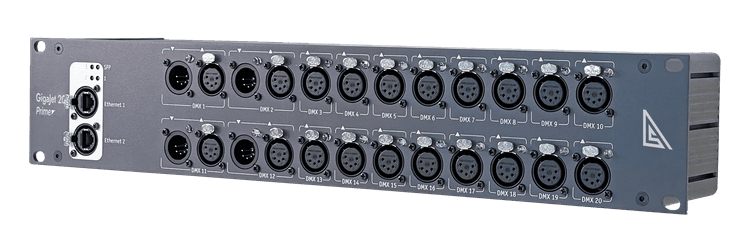

GigaJET20 Prime
