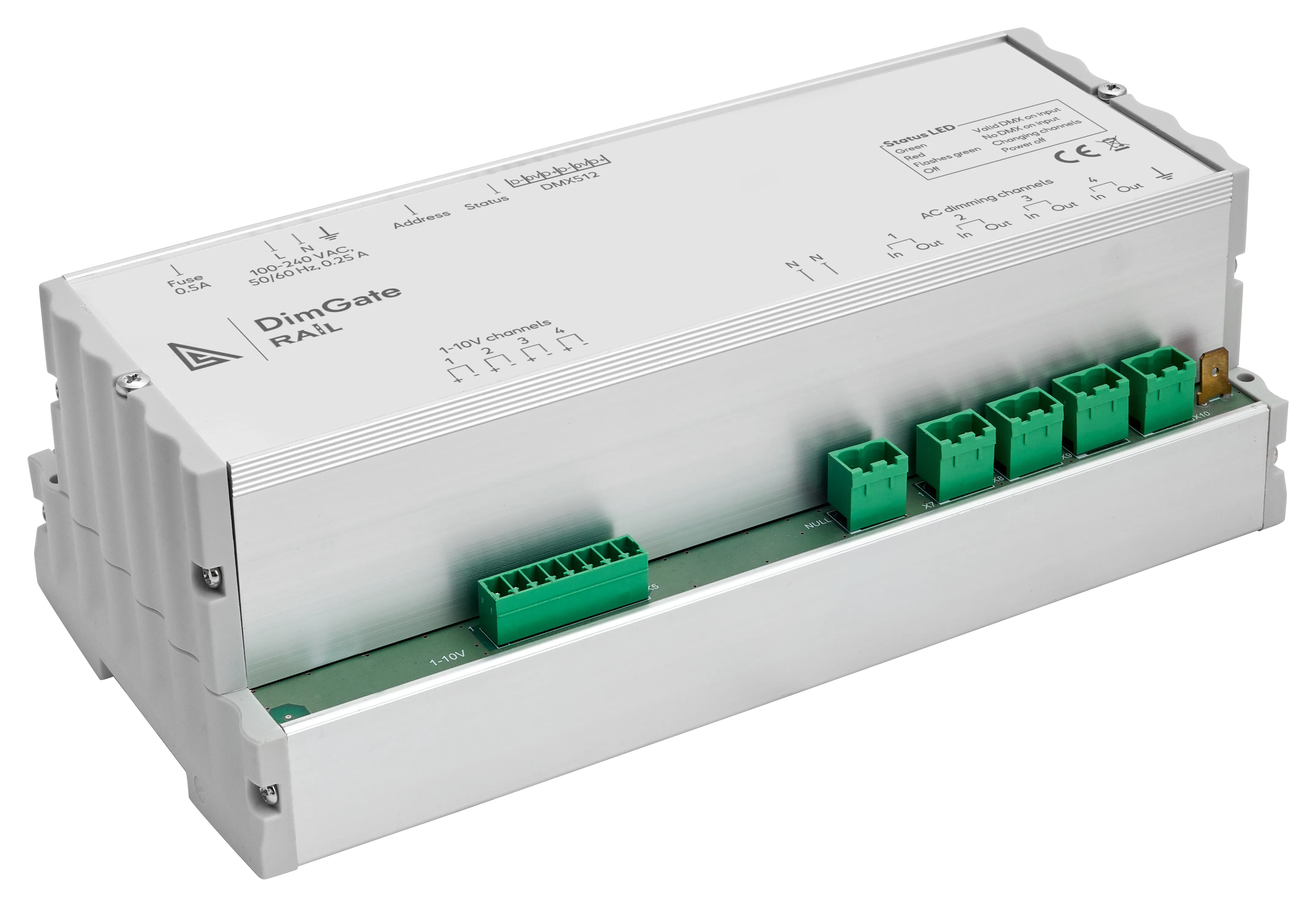

DimGATE Rail

Universal DIN-rail mounted hybrid dimmer for DMX-controlled lighting with 4x phase-cut outputs (230V) and 4x 0–10V analog outputs for dimmable drivers and ballasts

DimGATE Rail is a hybrid DMX dimmer that combines phase control for traditional incandescent lighting and analog 0–10V dimming for modern electronic drivers and ballasts. Designed for DIN rail mounting, it provides a compact, efficient, and professional-grade solution for managing mixed lighting loads in a single device.

With four independent 110–230V AC outputs, the device enables precise dimming of resistive loads such as filament lamps or stage lighting. Additionally, four separate 0–10V (or 1–10V) analog outputs allow control over compatible LED drivers and ballasts.

Control is achieved through the DMX512 protocol, with RDM

DIN-rail mounted hybrid DMX dimmer for indoor installations

4 phase-cut 230V outputs for dimmable incandescent or halogen lighting (up to 1.2 kW each)

4 active analog 0–10V or 1–10V outputs for controlling up to 100 drivers or ballasts

Supports DMX512 and RDM (ANSI E1.20) protocols

Independent power inputs per dimming channel

Easy configuration via DIP switches or RDM

Galvanic isolation on DMX port for signal protection

Aluminum housing with laser engraving for long-lasting identification

Passive fanless cooling design

Reliable operation in demanding temperature and voltage conditions (up to 305 V)

Mechanical: Enclosure: DIN rail (12 modules)
Material: metal, plastic
Dimensions, mm: 212 (L) x 75 (H) x 105 (W)
Weight: 0.85 kg
Installation: power supply cabinet
Power & Electrical: Power supply: ~ 100-250 V, 50/60 Hz
Max. current per channel 230 V: 10 A
Max. load: 2.4 kW per channel
Fuse: 0.5 A
Environment: Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 months
Control / Data Connections: Control interface: DMX512, RDM
Number of DMX addresses: 8
Refresh rate DMX data: 44 Hz

Inputs / Outputs: DMX ports: 1
DMX connector: terminal blocks 15EDGKA-3.5-06
Relay outputs: 4 single phase
and 1 analog 1-10V
Configuration / Indication: Setting: DIP switches
Indicators: LED, for DMX
Package Contents: DimGATE Rail
Connector set
