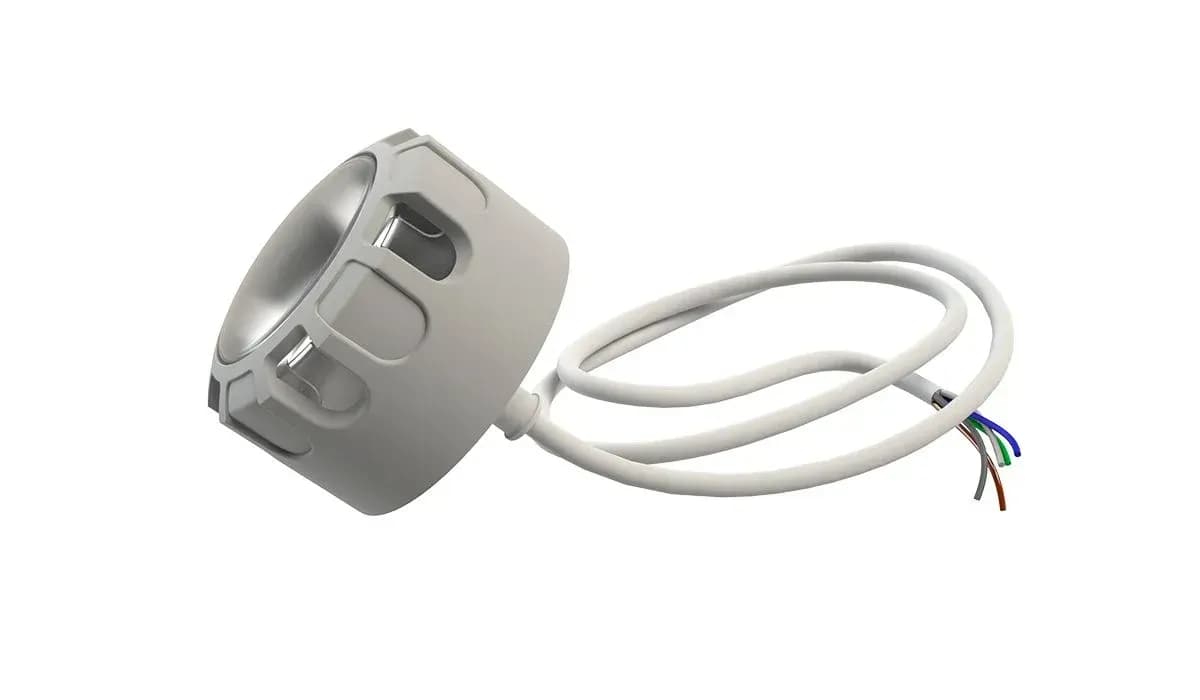

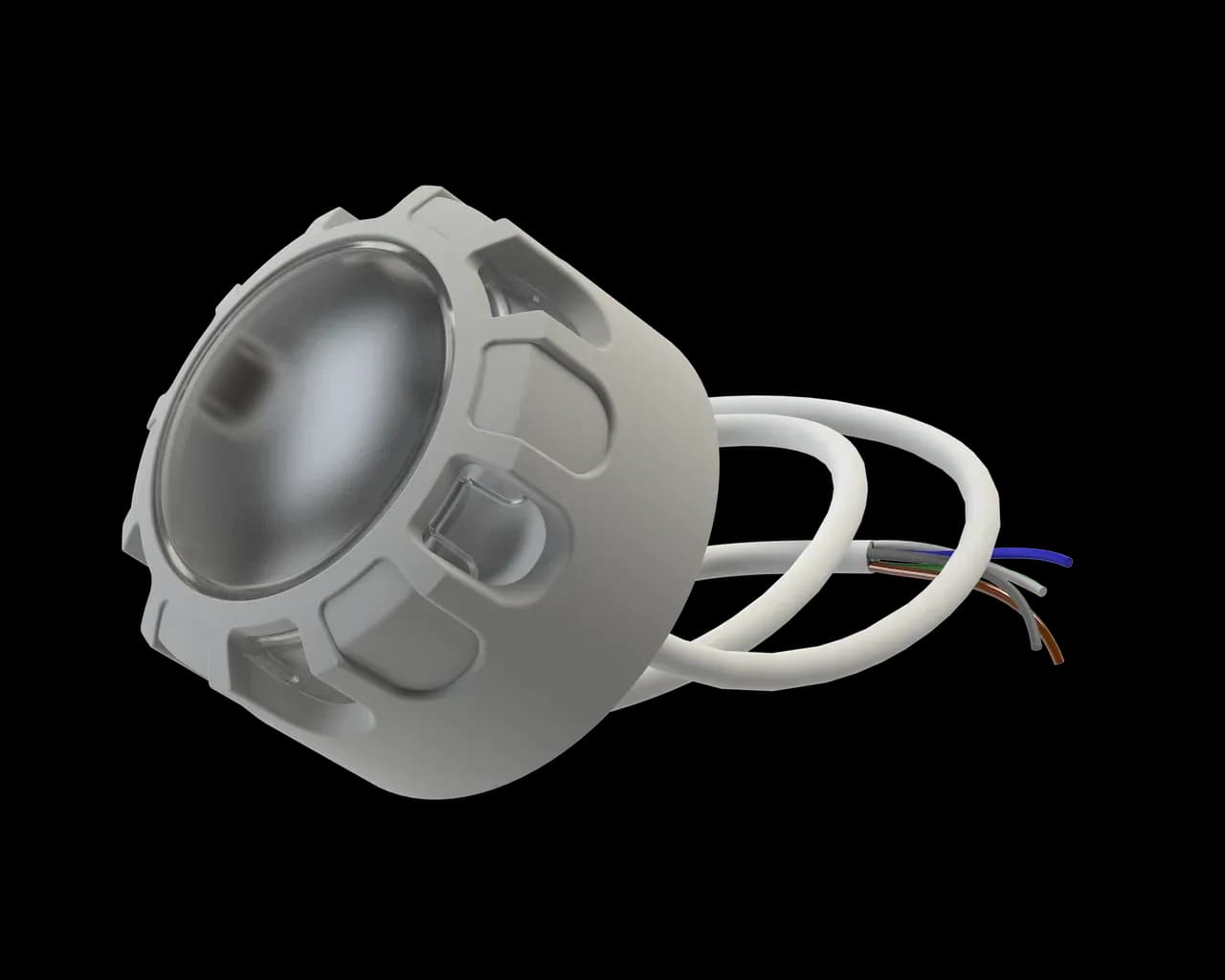

DITRA ArchiCORE Node

Compact and Powerful Solution for Architectural Lighting Control

The DITRA ArchiCORE Node combines precision, performance, and durability, making it an ideal choice for managing both static lighting scenes and dynamic illumination effects. With its advanced DMX512 output supporting up to 512 channels and RDM functionality, it ensures seamless communication and responsive adjustments.

Designed for modern connectivity, the DITRA ArchiCORE Node integrates effortlessly with platforms like Light Coder and DITRA CORE PRO, offering control through wired Ethernet or wireless 2G/3G/4G networks for unmatched flexibility. Its built-in GPS receiver guarantees precise synchronization, geo-positioning, and timing accuracy, ensuring flawless coordination across your lighting infrastructure.

Engineered for resilience, the DITRA ArchiCORE Node is suitable for outdoor installations, with an IP66-rated enclosure providing robust protection against dust and water. Its ability to perform in extreme temperatures makes it a reliable choice for challenging environments.

Compact yet versatile, the DITRA ArchiCORE Node is the ultimate solution for innovative and efficient architectural lighting control.

  • • Enjoy secure and clear communication with lighting fixtures through the galvanically isolated DMX512 output.

    • Take control of up to 512 channels for intricate and detailed choreography of lighting displays.

    • Effortlessly customize and synchronize DMX fixtures with personalized scenarios for seamless visual harmony.

    • Achieve unmatched synchronization between devices using GPS-driven precision.

    • Remotely configure and update lighting setups via 2G/3G/4G networks, ensuring flexibility and convenience.

    • Trust the robust non-volatile memory to protect your configurations from power interruptions.

    • Accommodate a wide range of designs with support for electrical loads from 1-1000 W.

  • Mechanical:

    Housing: solid case
    Material: plastic
    Dimensions, mm: 87(D) x 91,3(69,3)(H)
    Mass: 0.2 kg
    Mounting: Luminaire case, pole, e.t.c

  • Power & Electrical:

    Input Voltage: ~100-250 VAC, 50/60 Hz
    Input Power (max): 5 W
    Max load Power: 1000 W

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 100%
    IP Rating: IP 66
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Control output interface: DMX512, RDM
    Navigation: GPS
    Radio Channel: GSM 850/900/1800/1900

  • Inputs / Outputs:

    Connectors: wires
    Sensors: motion sensor input, embedded light sensor

  • Configuration / Indication:

    Setup: remote via software
    Indication: LED

  • Package Contents:

    DITRA ArchiCORE Node

DITRA ArchiCORE Node, Wire, 2G, 1DMX, 1 relay, 1 input, GPS
  • : DIT-LW-W-2GDMX
DITRA ArchiCORE Node, Wire, 2G/4G, 1DMX, 1 relay, 1 input, GPS, Region: E
  • : DIT-LW-W-4GDMX
DITRA ArchiCORE Node, Wire, 2G/4G, 1DMX, 1 relay, 1 input, GPS, Region: A
  • : DIT-LW-W-4GADMX
