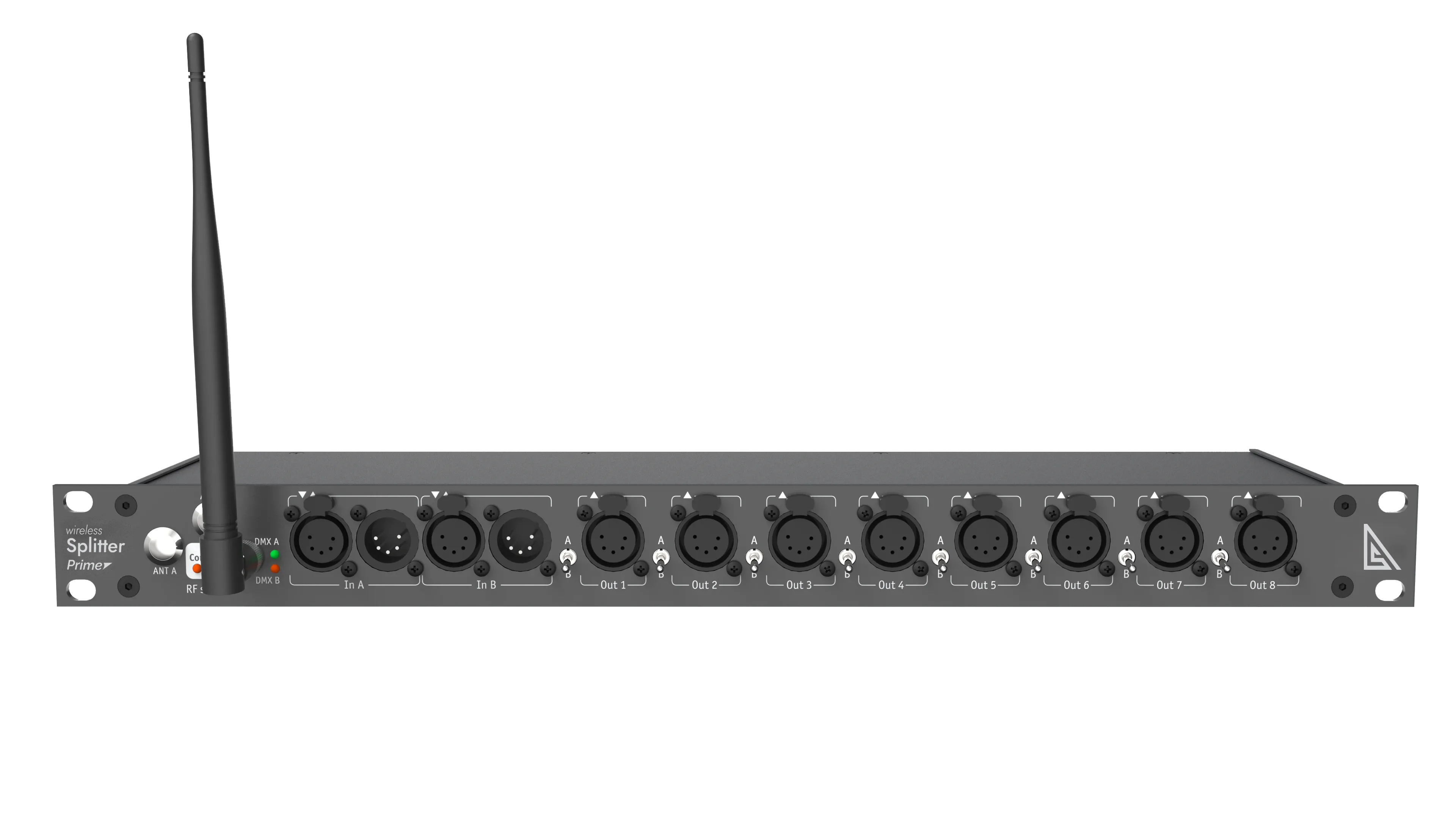

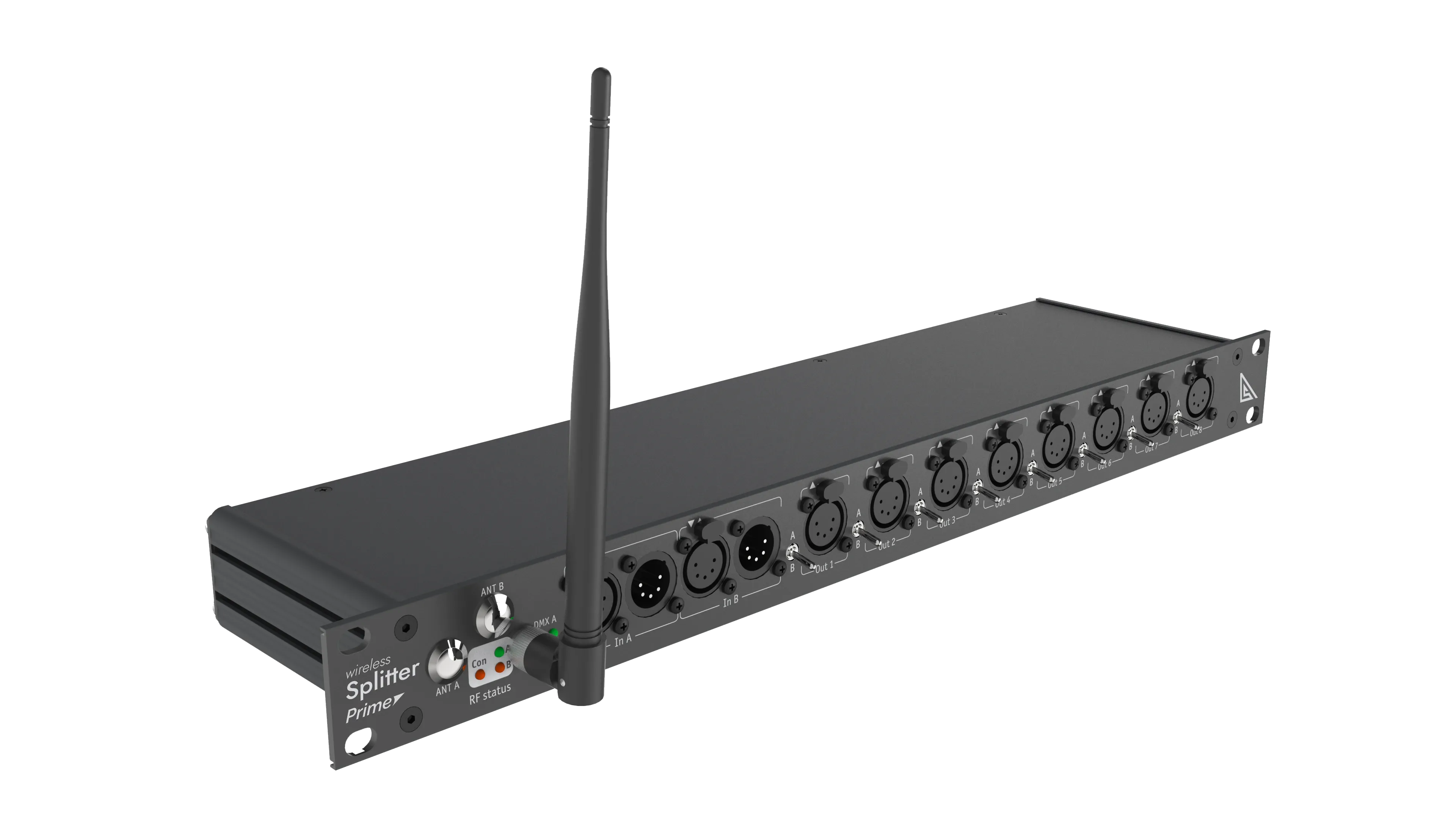

Splitter Wireless Prime

Rack-mounted wireless DMX splitter with up to 10 galvanically isolated outputs, BeDMX reception, RDM support, and automatic input switching

Splitter Wireless Prime is a high-performance rack-mountable DMX splitter designed for use in large lighting networks where wireless reception and signal distribution are required. Built with DITRA’s BeDMX wireless technology, it allows signal reception from up to two independent wireless sources and distributes them through 5 or 10 optically isolated DMX outputs, depending on model.

BeDMX operates in the 2.4 GHz ISM band using Bluetooth 5.0 with Adaptive Frequency Hopping (AFH), providing bidirectional communication and exceptional resistance to wireless interference (1600 hops/sec), with transmission ranges of up to 1500 meters usi

Supports wireless DMX512 and RDM input via BeDMX protocol (Bluetooth 5.0, 2.4 GHz)

Up to 1500 m wireless range with enhanced antennas

Dual input mode (wired and wireless) with input prioritization and auto-switching

Available with 2 wired DMX inputs and 8 to 10 optically isolated outputs

Compatible with DMX512, RDM (ANSI E1.20), and BeDMX

Built-in smart signal detection and RDM filtering per port

Passive cooling with sealed, fanless enclosure design

TVS protection diodes on all DMX ports

Power input: 100–305 V AC via PowerCON TRUE1 connector

No buttons — tamper-proof operation with pre-configured behavior

Rackmountable 1U form factor (depth 11 cm), IP44-rated metal housing

Connector options: XLR (3/5 pin) or EtherCON on request

Designed for professional indoor use in touring and rental systems

Mechanical: Housing: Short 1U Rack
Material: metal
Dimensions, mm: 482,6 (L) x 43,6 (H) x 125,6 (W)
Weight: 1.2 kg
Mounting: in a rack, 1 module
Power & Electrical: Power supply: ~100–270 V AC, 50/60 Hz
Max power consumption: 5 W
Fuse: 0.5 A
Environment: Operating temperature: 0…+60 °C
Storage temperature: -50…+70 °C
Max relative humidity: 95%
IP rating: IP44
Certificates: CE, EAC, RoHS compliant
Warranty: 36 months
Control / Data Connections: Supported protocols: DMX512, RDM (ANSI E1.20), BeDMX
DMX refresh rate: 44 Hz

Inputs / Outputs: DMX inputs:
– 1 input in single-channel mode
– 2 inputs in dual-channel mode
DMX outputs:
– 9 outputs in single-channel mode
– 8 outputs in dual-channel mode
DMX connectors: 2 × XLR (3/5 pin) Male, 10 × XLR (3/5 pin) Female
BeDMX ports: 1 × RP-SMA
Power connector: 1 × PowerCON TRUE1
Configuration / Indication: Indicators: LED indicators for DMX and wireless signal status
Package Contents: Splitter Wireless Prime
Antenna
Connector kit
