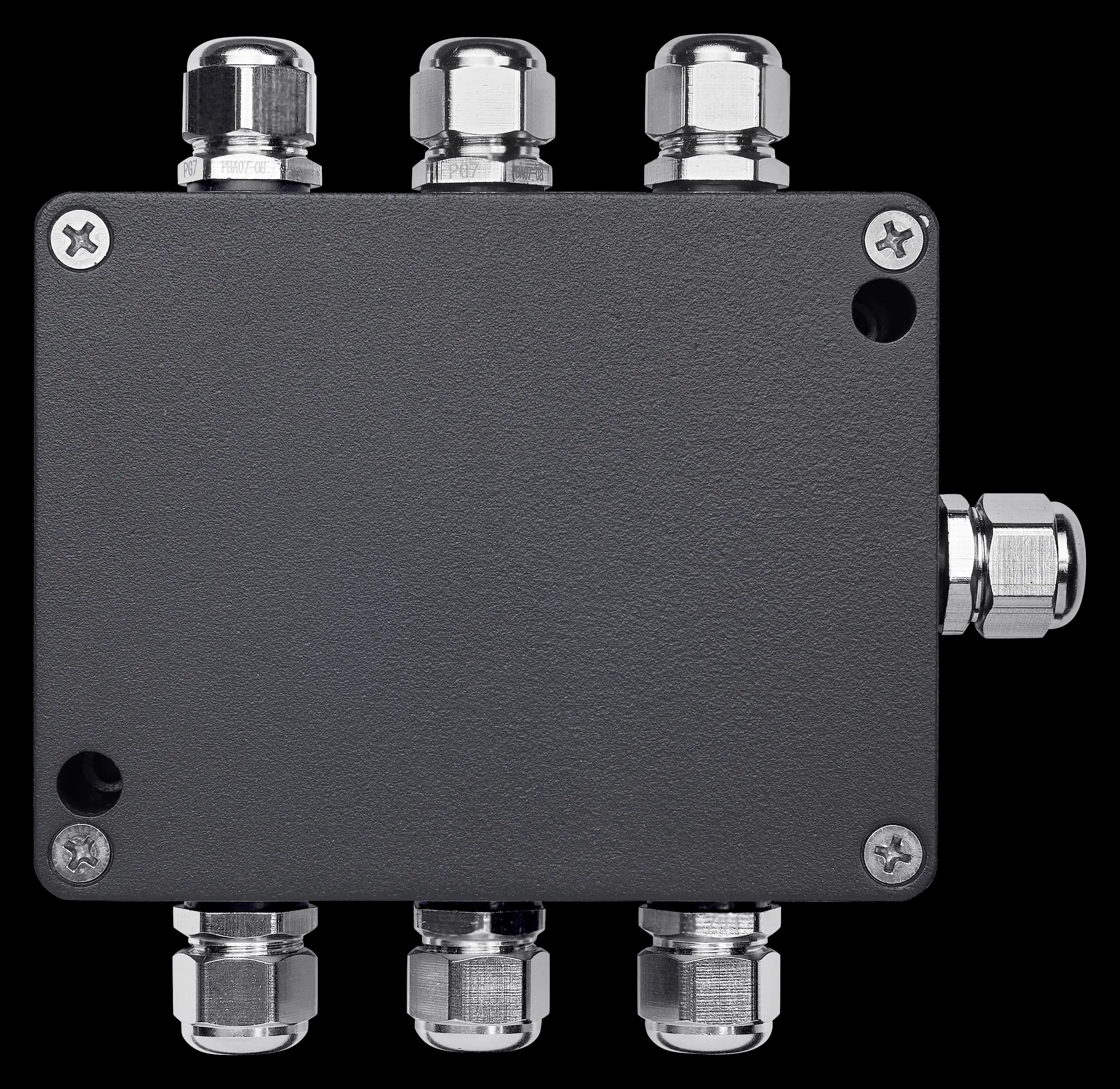

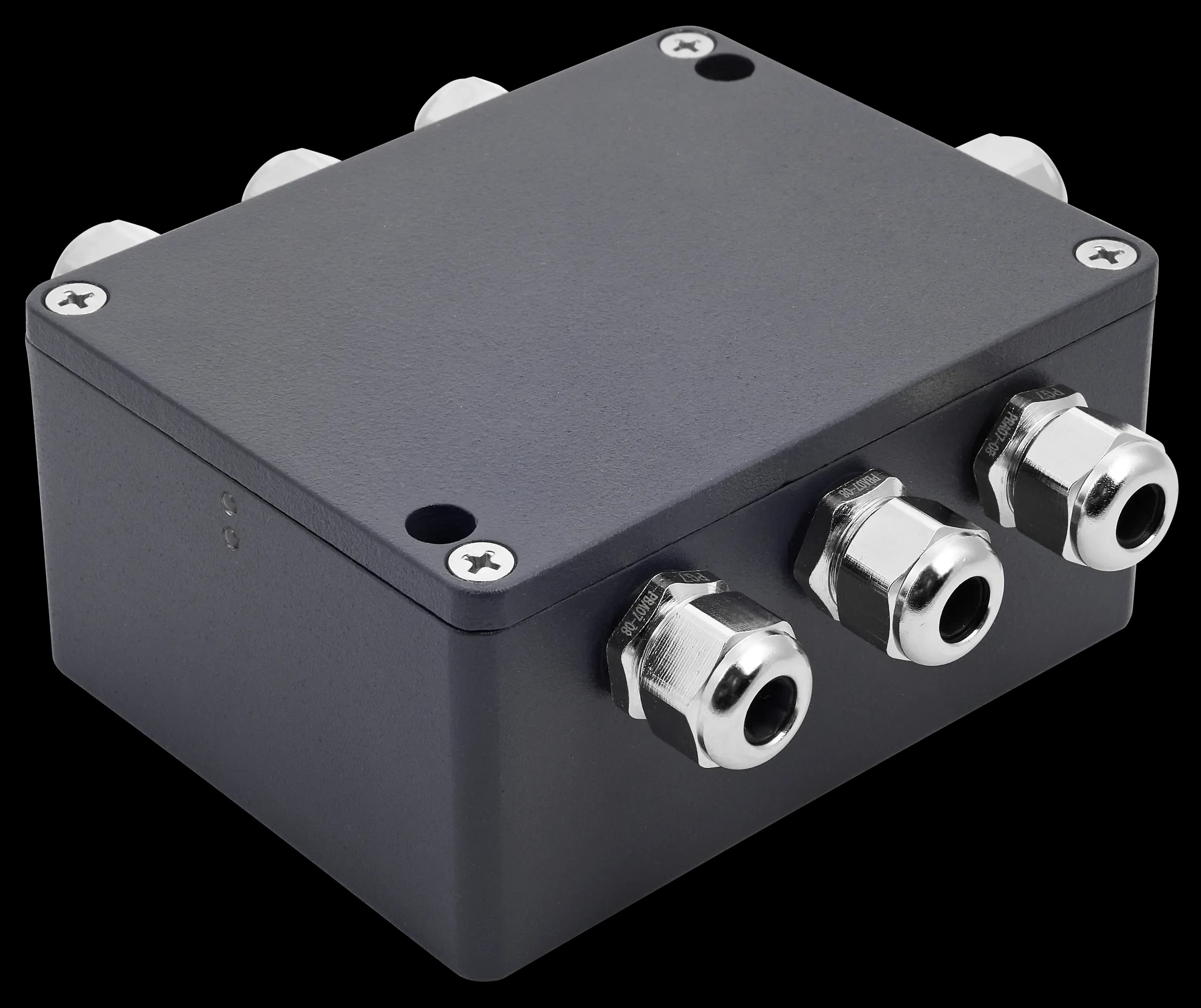

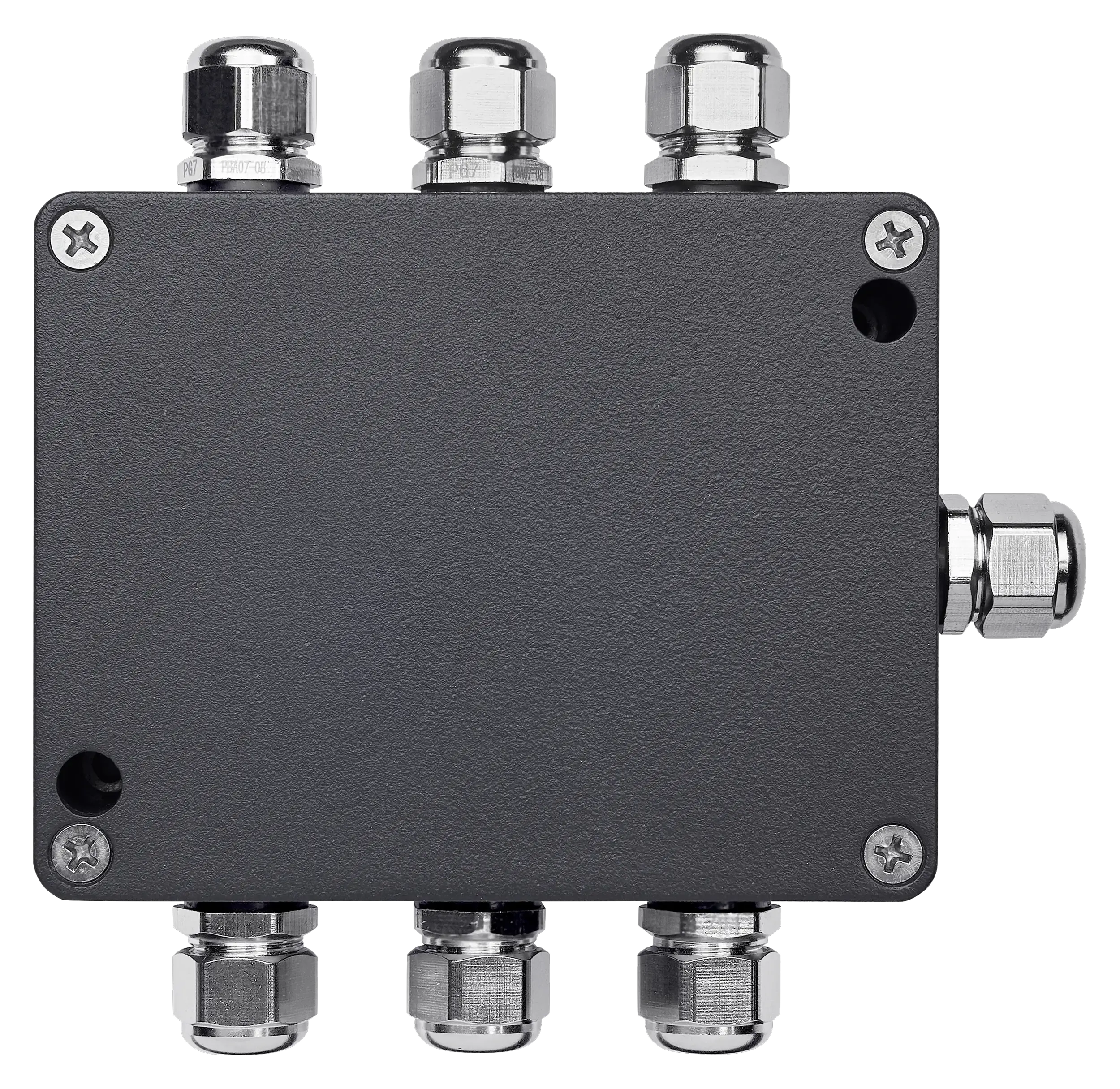

Splitter DUO Shield

Professional 2-channel DMX splitter with dual Ethernet, protocol support, and IP65 protection for demanding outdoor installations

Splitter DUO Shield is a robust 2-channel DMX splitter designed for professional outdoor lighting systems that require flexibility, reliability, and intelligent control. Built in a durable IP65-rated aluminum enclosure, it ensures stable performance even in harsh weather conditions, making it ideal for both permanent and temporary installations.

This unit supports DMX512, RDM (ANSI E1.20), ArtNet (1–4), and sACN protocols. It allows for flexible signal routing — from 1, 2, or 3 DMX inputs to 2, 4, or 5 outputs — depending on the project needs. The two integrated Ethernet ports ensure stable and redundant network connections, enabling

IP65-rated aluminum housing for outdoor use in all weather conditions

Supports DMX512, RDM (ANSI E1.20), ArtNet (1 to 4), and sACN (Draft, Release)

1, 2, or 3 DMX inputs with selectable routing to 2, 4, or 5 outputs

Dual Ethernet ports for reliable network integration

Wide voltage support from 5V to 48V (AC 110–220V or DC 9–36V input)

Galvanic isolation on DMX ports for interference protection

SPI interface for precise control of 8 independent LED groups

Web interface for fast and intuitive configuration

Status indication for DMX and RDM signal presence and transmission

Silent fanless cooling system with no air vents

Mechanical: Housing: dust and moisture resistant
Material: metal
Dimensions, mm: 129 (L) x 56 (H) x 118 (W)
Weight: 0.85 kg
Installation: flat surface, clamp
Power & Electrical: Power supply: ~ 100-250 V, 50/60 Hz or 9-36 V
Max power consumption: 5W
Fuse: 0.5 A
Environment: Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 100%
IP Rating: IP 65
Certificates: CE compliant, RoHS
Warranty: 36 months
Control / Data Connections: Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz

Inputs / Outputs: DMX inputs: 1, 2 or 3
DMX Outputs: 4, 5 or 2
DMX connectors: terminal blocks 15EDGVC-3.81-03,
15EDGVC-3.5-03
Configuration / Indication: Setting: DIP Switch
Indicators: LED, for DMX inputs
Package Contents: Splitter DUO Shield
Terminal Blocks
