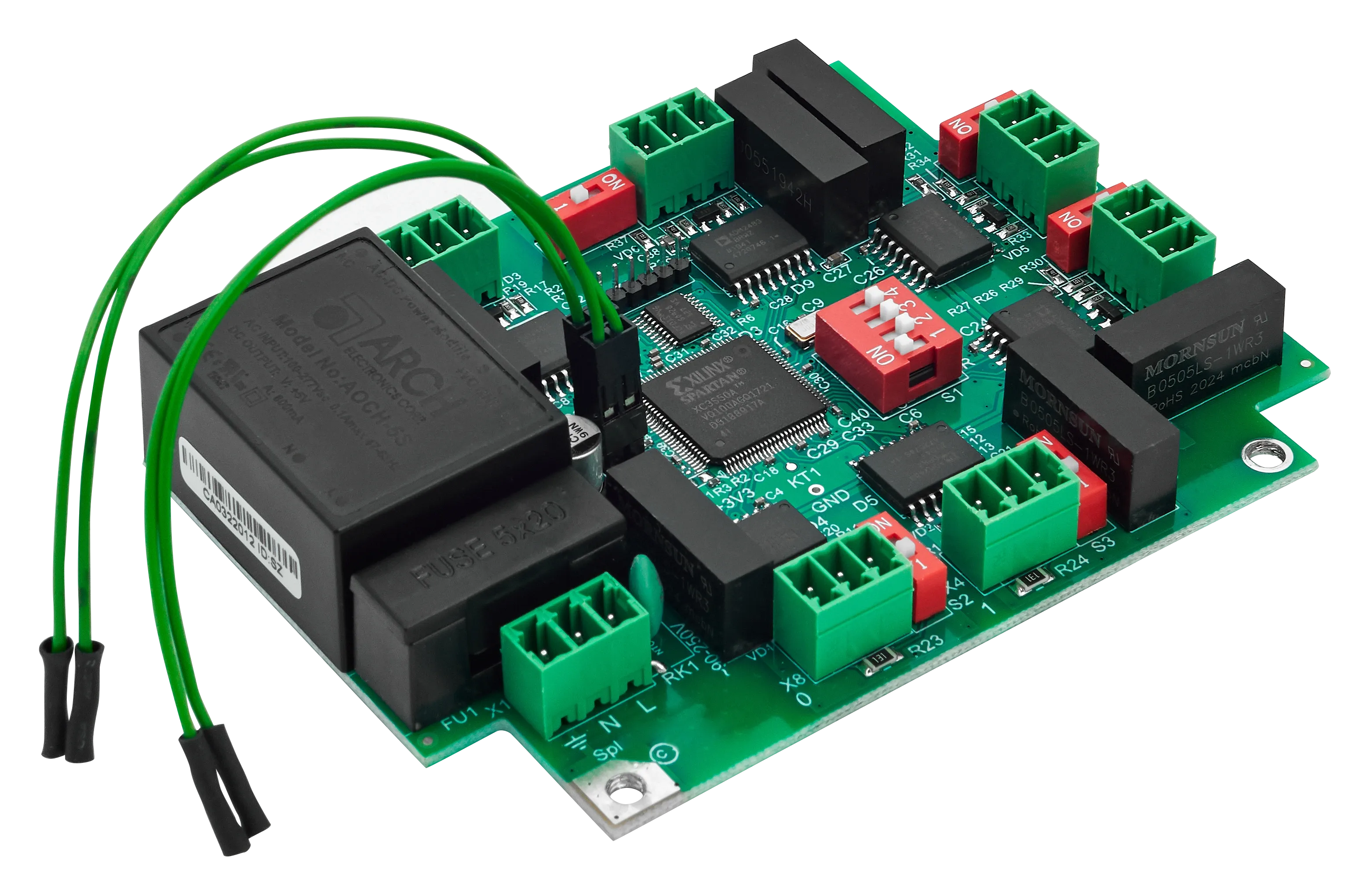

Splitter Duo Bare
OEM dual-input DMX splitter board with 6 galvanically isolated ports, RDM support, and terminal block connections
Splitter Duo Bare is a frameless, double-input DMX splitter board designed for OEM integration into lighting equipment, architectural housings, street cabinets, or furniture-based lighting systems.
It enables high-reliability DMX signal distribution in a minimal footprint, without the need for an external housing.
The unit supports DMX512 and RDM (ANSI E1.20) protocols and can be configured in single-input mode (1-to-5 splitter) or dual-input mode (two 1-to-2 splitters). All six input/output DMX channels are fully galvanically isolated to prevent ground loop issues and maintain electrical separation in complex systems.
Designed for concealed installation, the board features terminal block connections for power and signal, and operates on 100–250 V AC mains. With a maximum power draw under 5 W, it is suitable for integration into compact or thermally sensitive environments.
There are no buttons or user interface, ensuring tamper-proof operation. LED status indicators are available for signal presence and activity on each DMX line. The passive design with natural convection cooling ensures silent, maintenance-free operation even in enclosed spaces.
OEM DMX splitter board with 2 inputs and 6 galvanically isolated ports
Supports DMX512 and RDM (ANSI E1.20) protocols
Single-channel mode: 1 input to 5 outputs
Dual-channel mode: two independent 1-to-2 splitters
Terminal block connections for power and signal
Galvanic isolation on all ports for signal integrity
Input backup logic and signal reservation
No housing — ready for concealed installation in OEM equipment
LED indicators for DMX activity and mode detection
Passive cooling (no fans or ventilation required)
Power supply: 100–250 V AC, max 5 W
Compact dimensions for flexible placement
Suitable for lighting furniture, manholes, rack enclosures, and custom devices
- Mechanical
Housing: no
Dimensions, mm: 100 (L) x 19 (H) x 78 (W)
Weight: 0.05 kg
Installation: stage equipment, lamps, etc.- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz or 9-36 V
Max power consumption: 5W
Fuse: 0.5 A- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 95%
IP Rating: no
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM
Refresh rate DMX data: from 44 Hz
- Inputs / Outputs
DMX inputs: 1 or 2
DMX Outputs: 4 or 5
DMX connectors: terminal blocks 15EDGVC-3.81-03,
15EDGVC-3.5-03- Configuration / Indication
Setting: DIP switches
Indicators: LED for DMX- Package Contents
Splitter Duo Bare
Connector set
