GigaJET20 Prime
Rack-mounted Art-Net/sACN to DMX converter, fiber-optic media converter, and 3-port Gigabit Ethernet switch with up to 20 optically isolated DMX ports
GigaJET20 Prime is a high-capacity, rack-mounted Ethernet-to-DMX interface designed for demanding lighting networks in arenas, stadiums, smart city infrastructure, and touring systems. It combines a powerful 20-port DMX splitter, a 3-port Gigabit switch, and a fiber uplink module in one robust 2U chassis — providing unmatched performance in complex ArtNet/sACN environments.
Each of the 20 DMX512 ports (Neutrik XLR 5-pin) is fully optically isolated and can be individually configured as an input or output. The device supports all major industry protocols including DMX512, RDM (ANSI E1.20), ArtNet (I–IV), sACN, KiNet (v1, v2), and RTTr

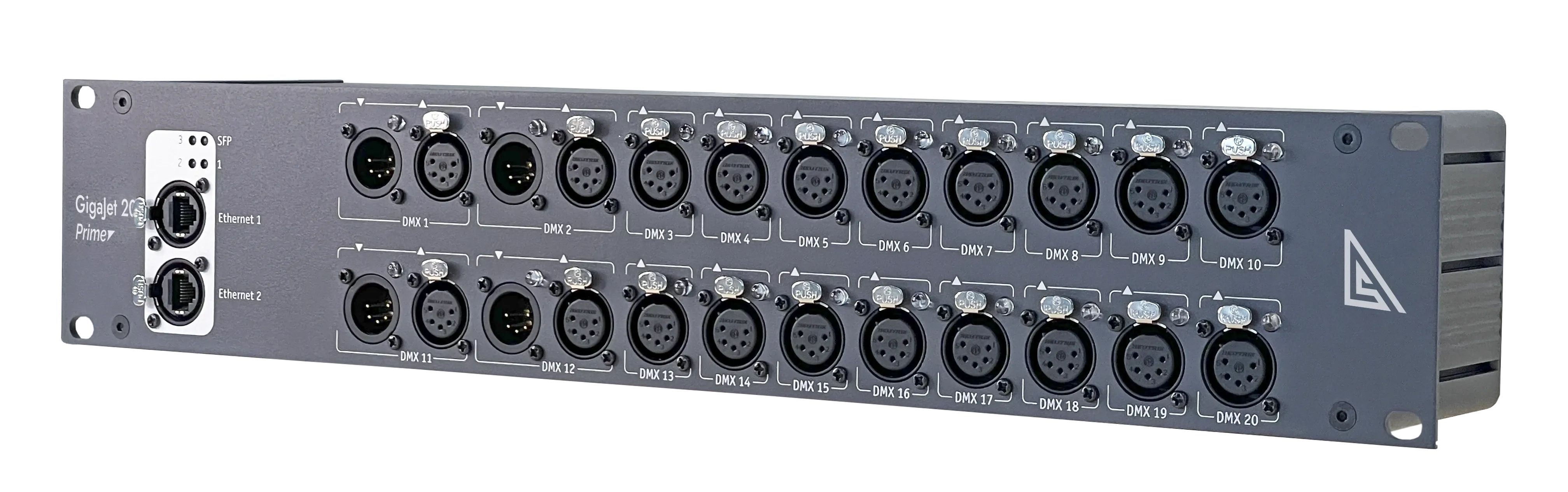

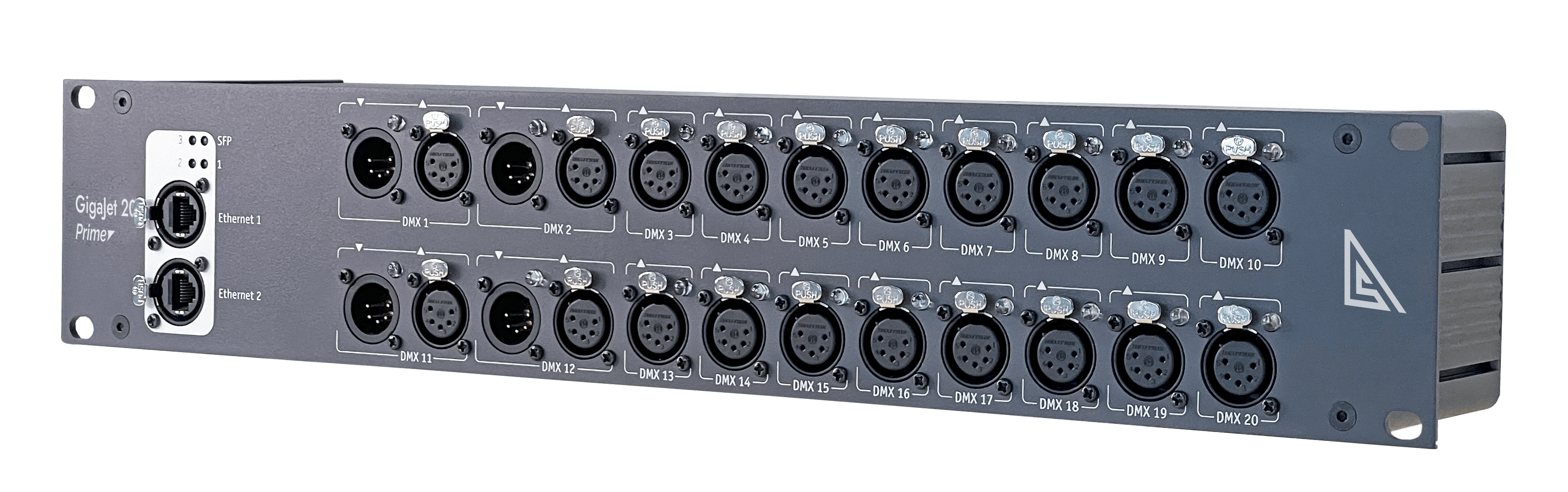

20 optically isolated DMX512 ports (including four paired pass-throughs)
Three-port integrated Gigabit Ethernet switch (RJ45 EtherCON)
SFP slot for multimode (up to 2 km) or single-mode (up to 10 km) fiber uplink
Supports DMX512, RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL
Full merging capabilities: HTP, LTP, AUTO, PRIORITY
Records up to 4 static DMX presets for standalone playback or remote contact triggering
Galvanic isolation on all DMX ports
Dual power inputs: 90–315 V AC and PoE (IEEE 802.3af)

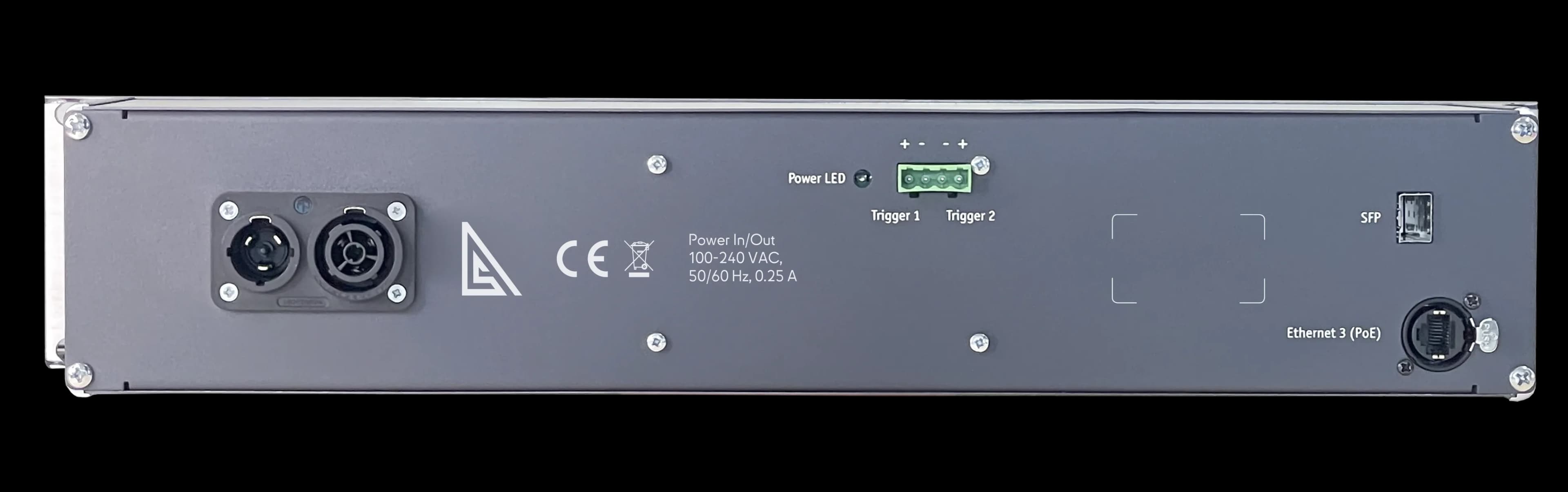

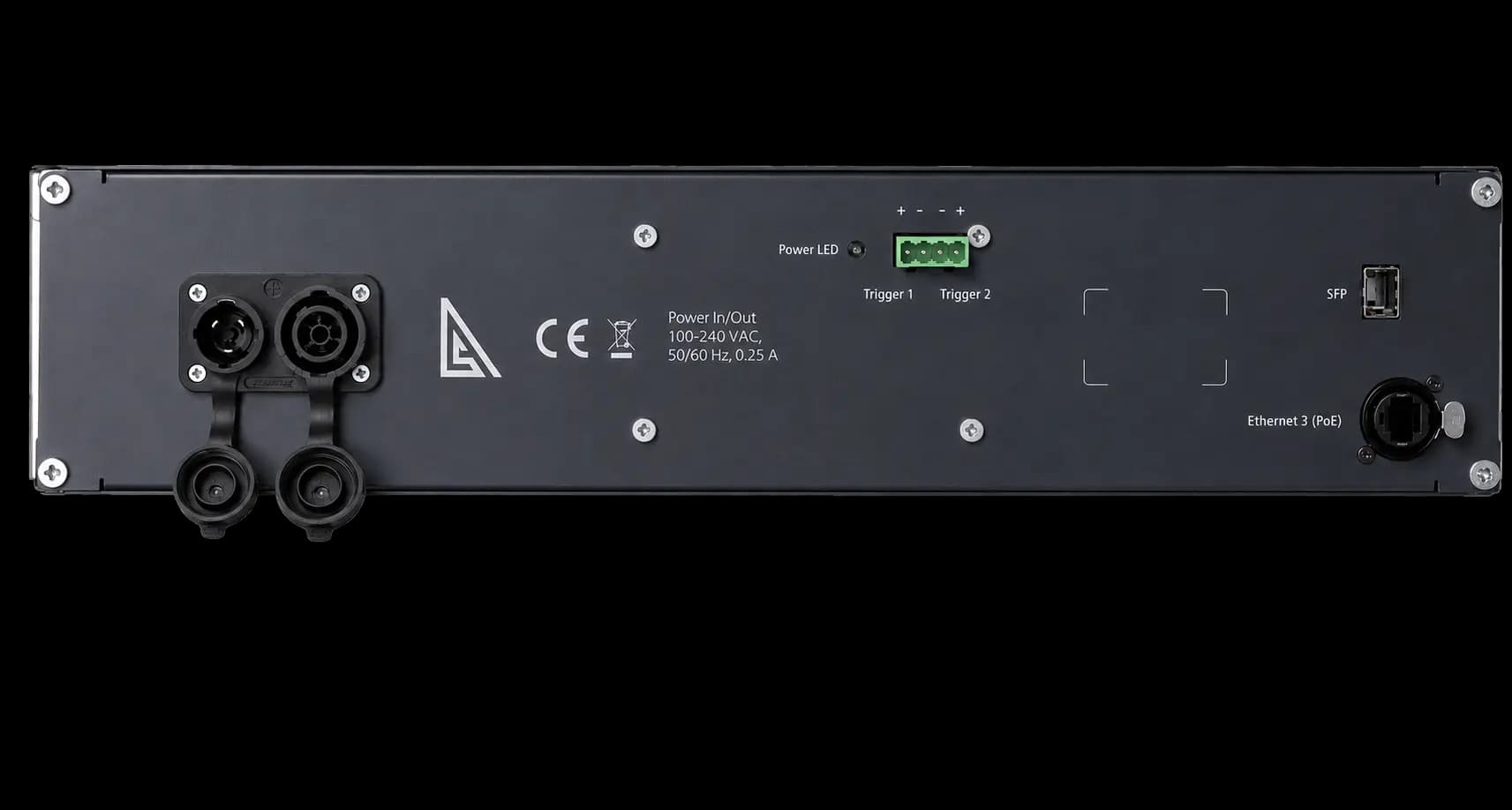

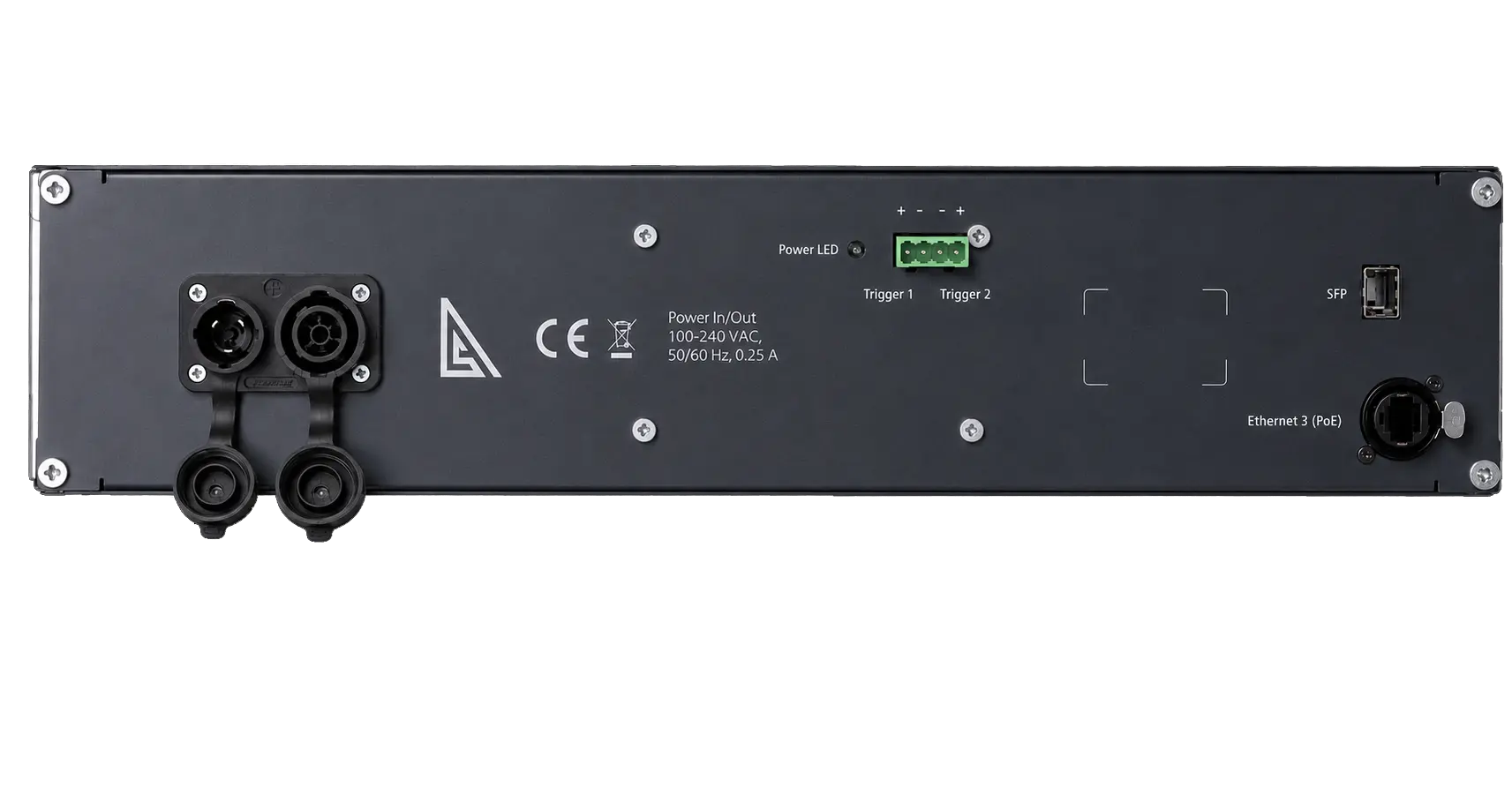

PowerCON TRUE1 in/out for secure power chaining
Two trigger inputs for alarms or automation
DHCP support and IP address conflict detection
Fast reboot after short power loss
Web interface and configuration via ArtGate Setting or ArtNet-compatible software
2U rackmount housing for 19” cabinets
- Mechanical
Housing: shallow installation depth in a rack
Material: Heat-dissipating aluminum
Dimensions, mm: 482,6 (L) x 88,1 (H) x 125,6 (W)
Weight: 1.5 kg
Mounting: in a rack- Power & Electrical
Power supply: ~ 100-250 V, 50/60 Hz, PoE, 0.25 A, PoE
Max power consumption: 5W- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 95%
IP Rating: IP 20
Certificates: CE compliant, RoHS
Warranty: 36 months- Control / Data Connections
Supported protocols: DMX512, RDM, ArtNet (1,2,3,4),
sACN draft, release, KiNet (v1, v2), RTTrPL
Refresh rate DMX data: from 44Hz
- Inputs / Outputs
DMX ports: 20
DMX Neutrik connectors: 4 XLR (5) M, 20 XLR (5) F
Ethernet ports: 3 (10/100/1000 Base-TX), PoE
Ethernet connectors: RJ-45 / etherCON
Optical connectors: 1 SFP
Trigger connectors: terminal block- Configuration / Indication
Configuration: web interface, ArtGate settings
Indicators: LED for DMX, Ethernet and SFP header- Package Contents
GigaJET20 Prime
Terminal block for connecting trigger inputs
