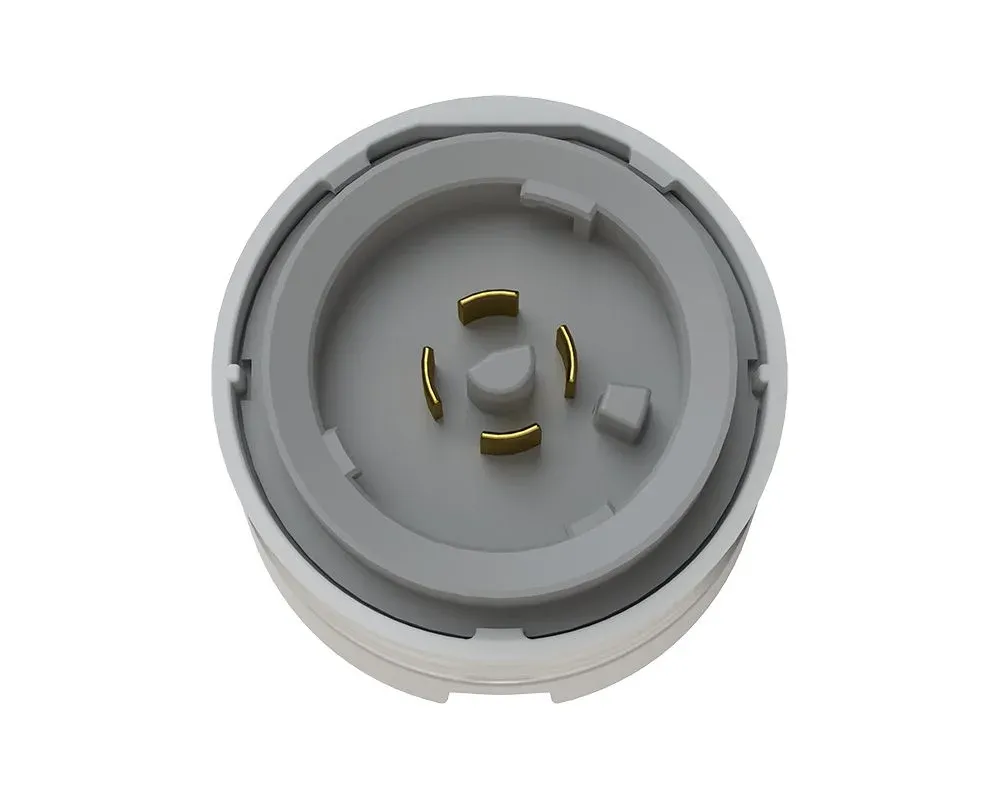

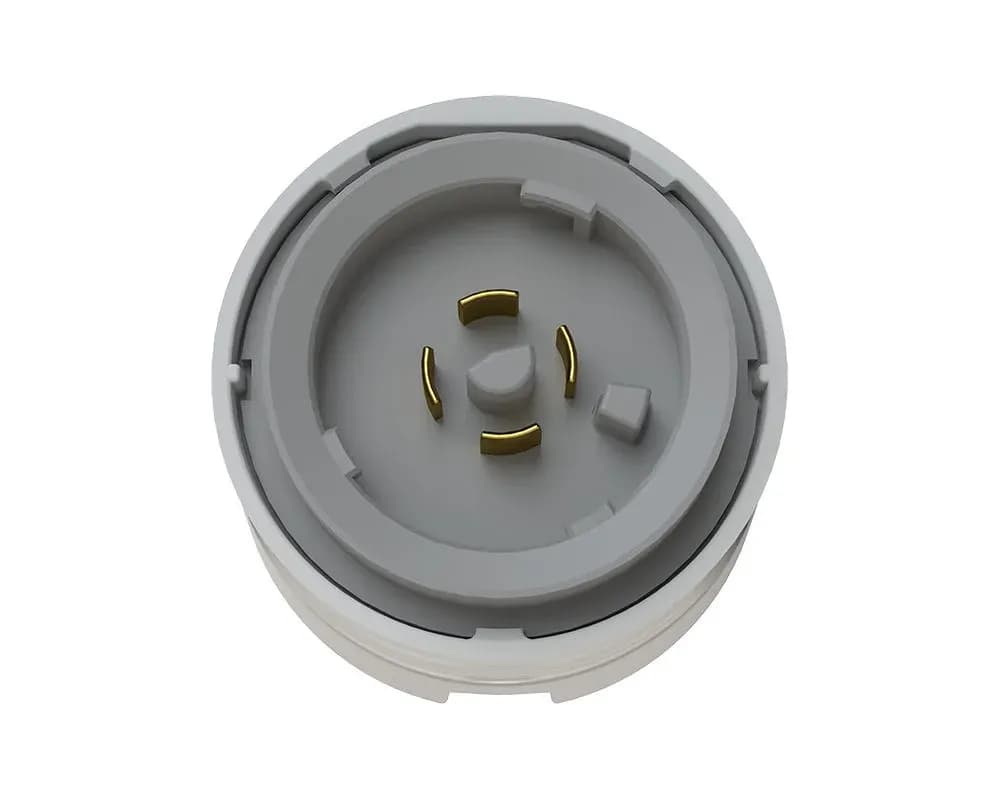

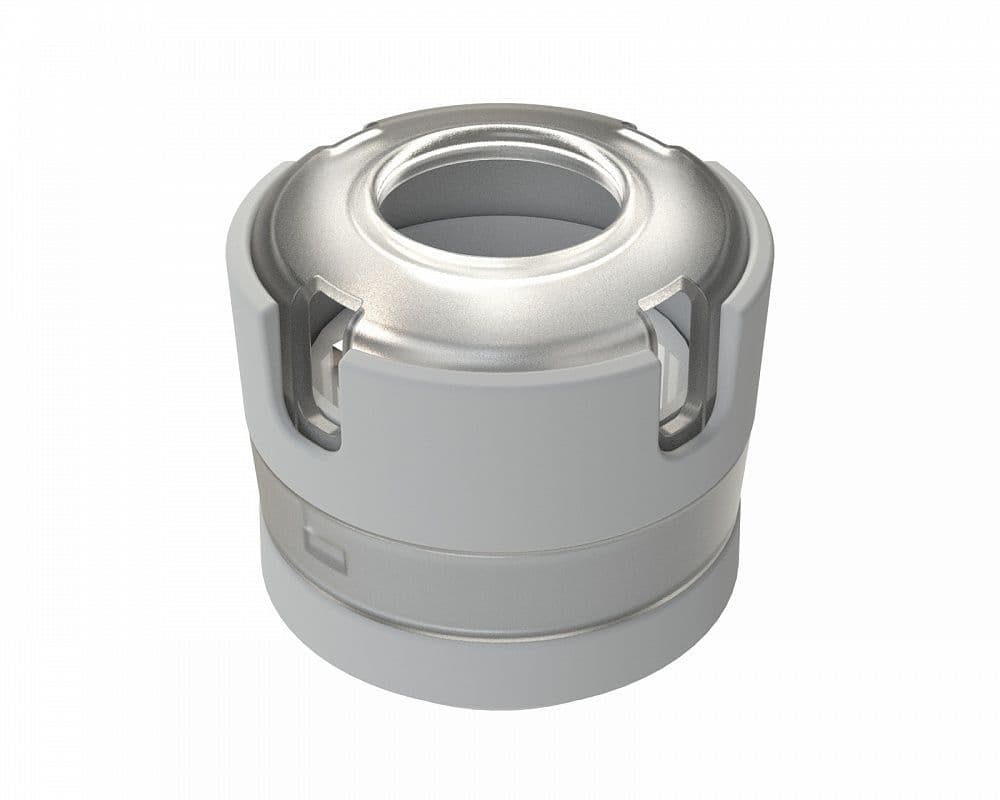

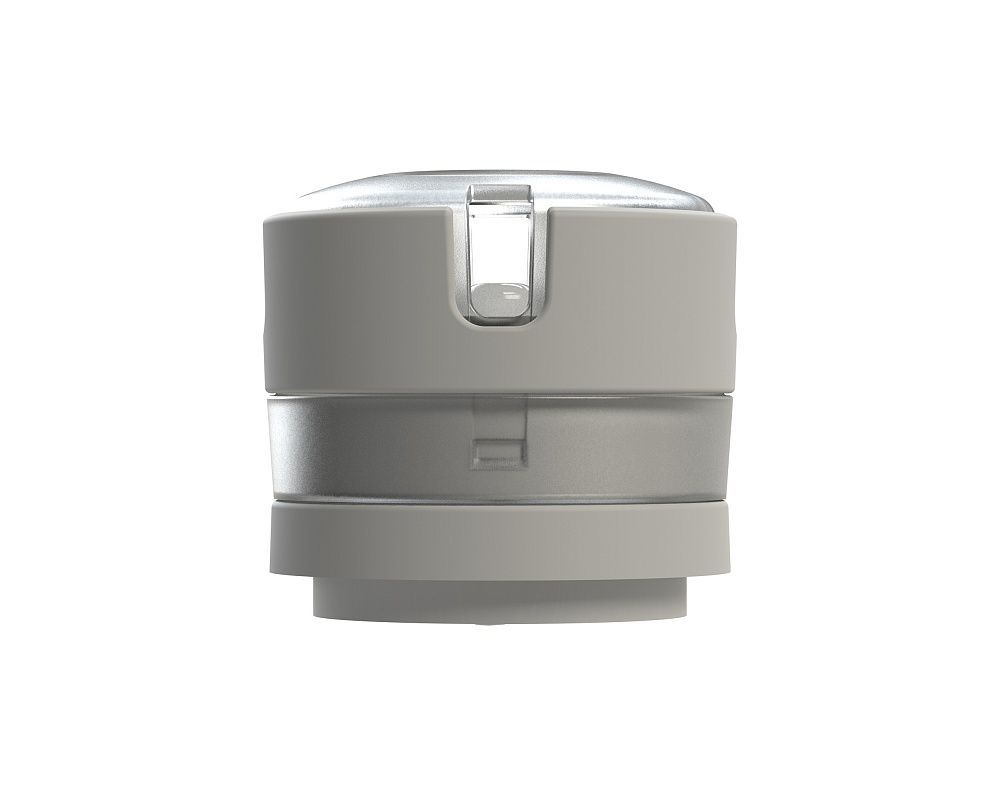

DITRA Weather Sensor Zhaga Type D4i
Zhaga-Type D4i Weather sensor for temperature, humidity and atmospheric pressure monitoring
The Zhaga-Type D4i Weather Sensor is a compact environmental sensor designed to measure temperature, relative humidity, and atmospheric pressure in smart lighting and smart city applications.
The sensor communicates through a DALI 2.0 interface and can transmit collected environmental data to the DITRA Solutions lighting management system via a Base Station, GSM Node, or other compatible DALI 2.0 devices.
Power is supplied directly through the DALI 2.0 interface, red
- Seamless compatibility with Zhaga D4i lighting infrastructure.
- Reliable measurement of temperature, humidity, and atmospheric pressure for environmental monitoring.
- Flexible installation options for integration into luminaires and compatible equipment.
- Remote configuration and data access through the DITRA Solutions software platform.
- IP66-rated enclosure designed for reliable outdoor operation.
- Compact form factor for easy integration into lighting and smart city systems.
- Mechanical
Housing: protected
Material: plastic
Dimensions,mm: 49(D) x 47,5(41,8)(H)
Mass: 0.1 kg
Mounting: luminaire, Monitoring station- Power & Electrical
Input Voltage: –12-24 V
Max load Power: 3 W- Environment
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66- Compliance & Standards
Certification: CE, RoHS
- Control & Data Connections
Communication interface: DALI 2.0
- Inputs / Outputs
Connectors: Zhaga book 18
- Configuration / Indication
Setup: Remotely using DITRA Solutions sofrware
- Package Contents
Zhaga D4i Weather Sensor
Warranty: 36 month
