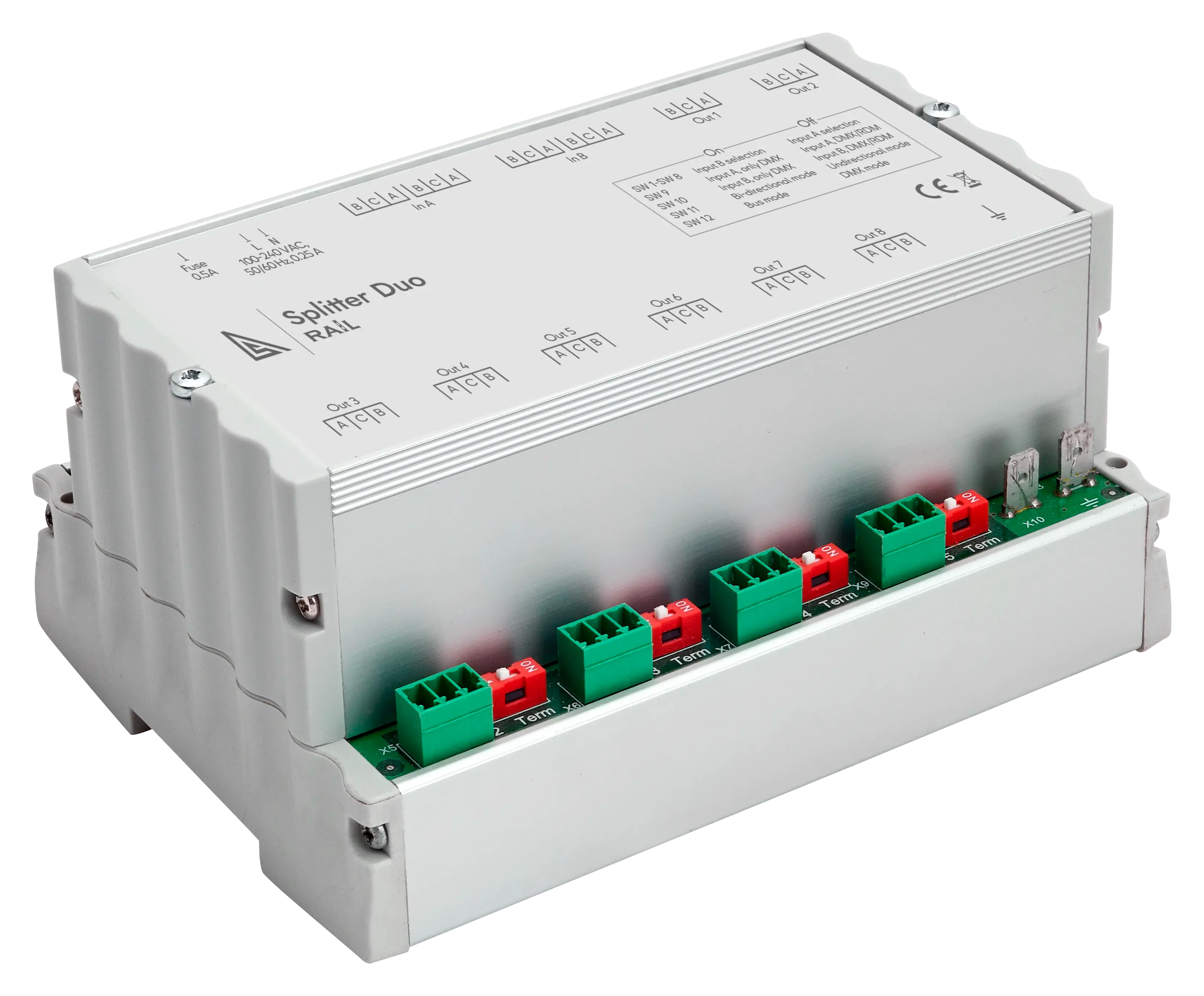

Splitter DUO Rail

DIN-mounted 2-channel DMX/RDM splitter with laser-etched housing and reliable protection for control cabinets and smart installations

Splitter DUO Rail is a compact and durable two-channel DMX splitter designed for easy DIN rail integration inside control cabinets and indoor enclosures. Ideal for smart lighting systems, it ensures precise and stable signal distribution across complex DMX networks.

Supporting DMX512 and RDM (ANSI E1.20), the device allows for flexible routing from 1 or 2 inputs to up to 8 or 9 outputs. Manual switching modes and real-time signal indicators help lighting technicians easily adapt the unit to different installations and troubleshoot on the fly.

Its rugged aluminum housing with laser engraving is engineered for reliability and lon

DIN rail mounting for easy installation in control cabinets

Laser-etched aluminum housing for durability and identification

Stable operation up to 305V AC across a wide voltage range

Supports DMX512 and RDM (ANSI E1.20) for flexible integration

Manual switching between 1 or 2 input modes

Up to 9 output ports depending on configuration

Intelligent status indicators for DMX and RDM signals

Optical isolation on DMX ports for system protection

Fanless design with no ventilation holes for silent operation

Mechanical: Enclosure: DIN rail (12 modules)
Material: metal, plastic
Dimensions, mm: 212 (L) x 75 (H) x 105 (W)
Weight: 0.85 kg
Installation: power supply cabinet
Power & Electrical: Power supply: ~ 100-250 V, 50/60 Hz
Max power consumption: 5W
Fuse: 0.5 A
Environment: Power supply: ~ 100-250 V, 50/60 Hz
Max power consumption: 5W
Fuse: 0.5 A
Control / Data Connections: Supported protocols: DMX512, RDM
Refresh rate DMX data: 44 Hz

Inputs / Outputs: DMX inputs: 1 or 2
DMX Outputs: 8 or 9
DMX connectors: terminal blocks 15EDGVC-3.5-03
Configuration / Indication: Indicators: LED, for DMX inputs
Package Contents: Splitter DUO Rail
Connector set
