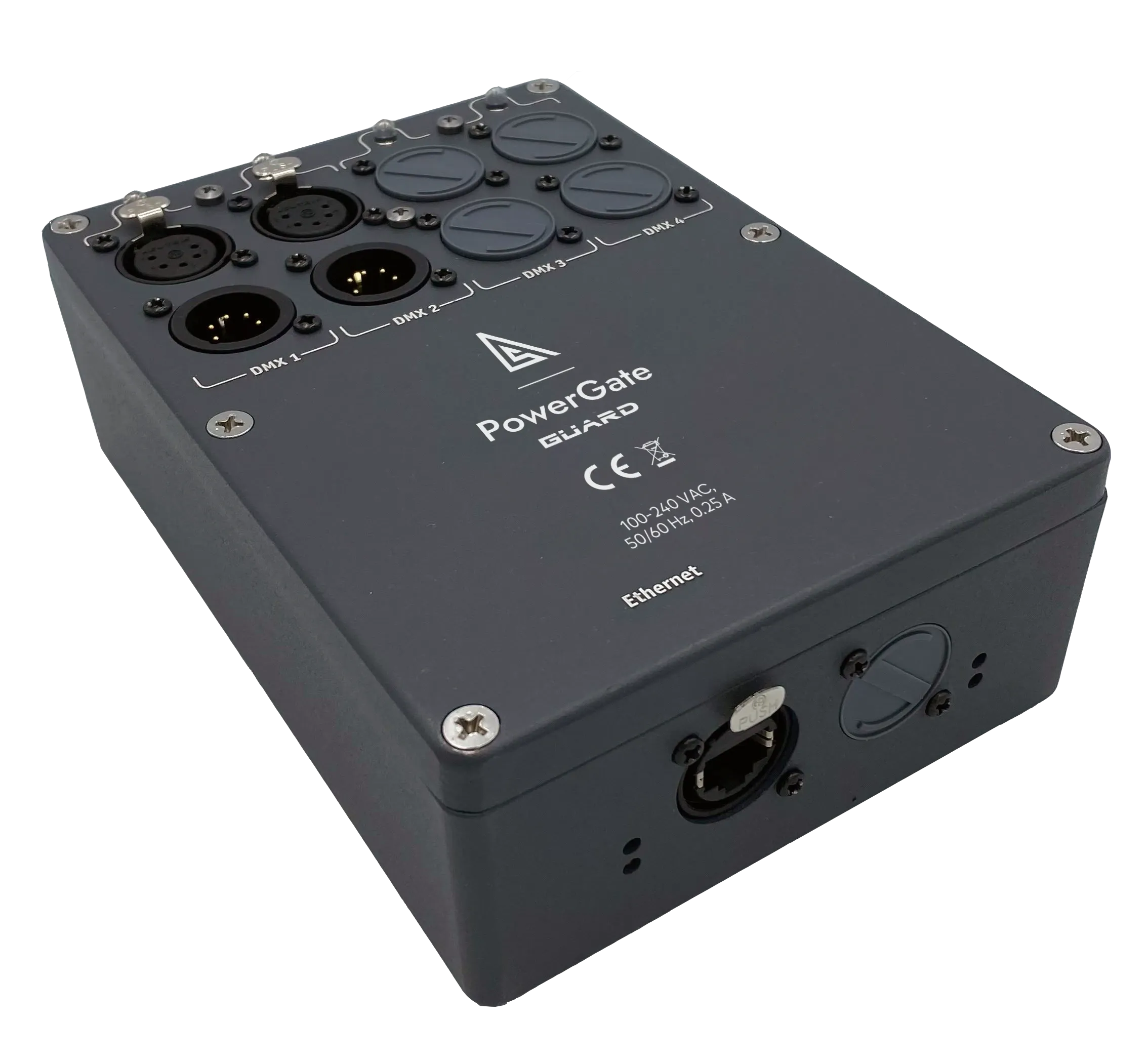

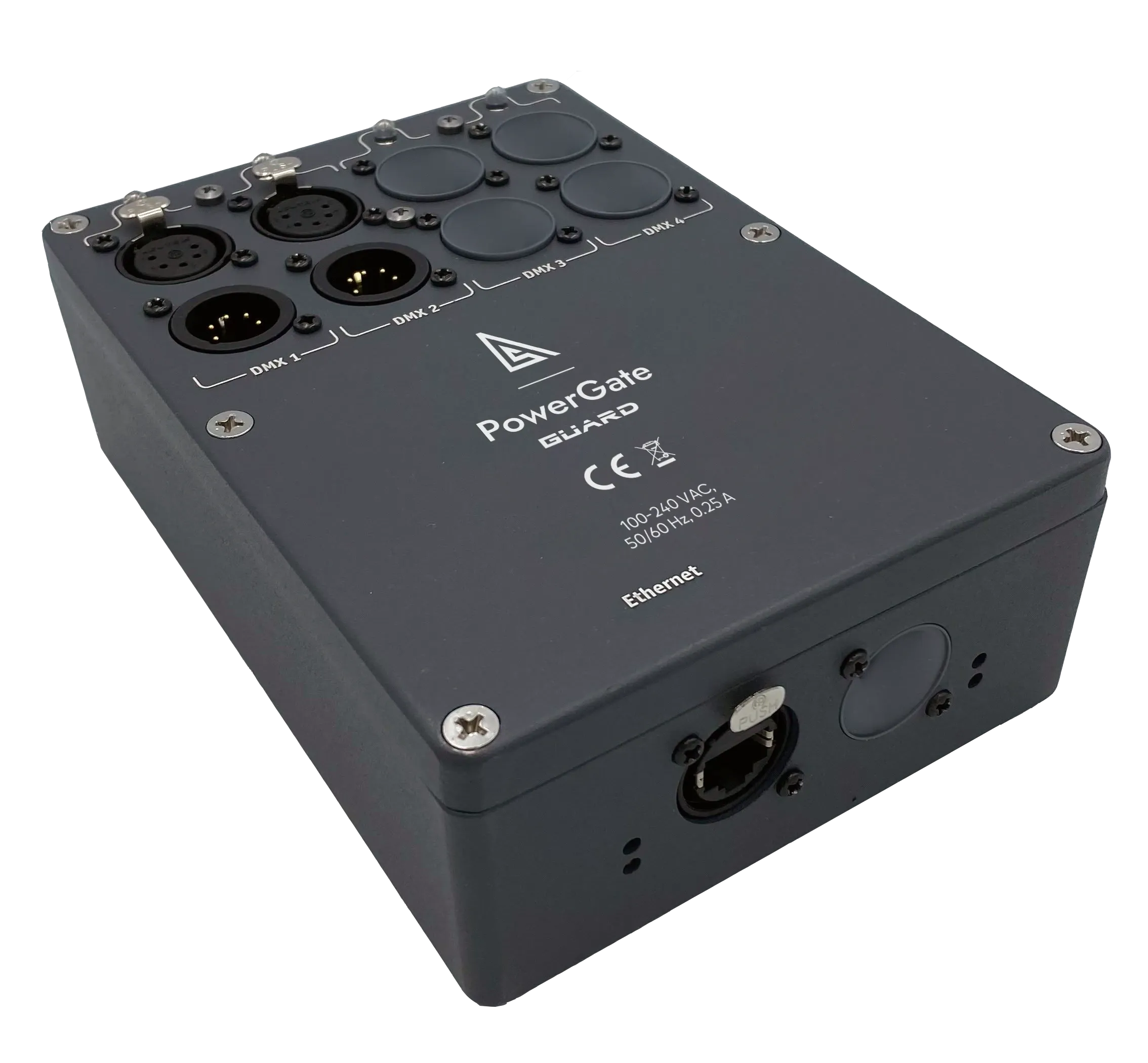

PowerGATE Guard

DMX-over-Powerline converter with up to four optically isolated DMX ports, Ethernet input, and IP44 protection — ideal for retrofitting DMX into existing AC power infrastructure

PowerGATE Guard is a smart DMX converter that uses DITRA’s PWRDMX technology to transmit DMX signals over existing 110/220V AC power lines, eliminating the need for new control cabling. This makes it an ideal solution for retrofitting historic buildings, architectural monuments, and embedded lighting systems where traditional wiring or wireless connections are impractical.

The unit supports a broad range of protocols including DMX512, RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), and RTTrPL. It includes a 10/100 Mbps Ethernet port for data input and remote configuration. Up to 4 optically isolated DMX ports are available, eac

Converts Ethernet-based lighting protocols to DMX over existing 110/220V power lines using PWRDMX

Supports ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL, DMX512, and RDM (ANSI E1.20)

Up to four optically isolated DMX ports, configurable as input or output

Single 10/100 Mbps Ethernet port for data and web-based configuration

Powered directly from the AC line, no external PSU required

Supports merging modes: HTP, LTP, Auto, Priority

Non-volatile memory for static scenes and configuration profiles

Full galvanic isolation of all DMX ports

Fast reboot and minimal loading time after power loss

IP44-rated compact metal housing for indoor or protected outdoor use

Surge protection for input voltage from 100 to 315 V

Mechanical: Enclosure: vandal-resistant
Material: metal, plastic
Dimensions, mm: 182 (L) x 59,4 (H) x 121 (W)
Weight: 1.2 kg
Installation: surface, truss
Power & Electrical: Power supply: ~ 100-250 V, 50/60 Hz
Max power consumption: 5W
Fuse: 0.5 A
Environment: Operating temperatures: 0 ... + 60 ° C
Storage temperatures: -50 ... + 70 ° C
Max. relative humidity: 95%
IP Rating: IP 44
Certificates: CE compliant, RoHS
Warranty: 36 months
Control & Data Connections: Supported protocols: DMX512, RDM, ArtNet (1,2,3,4), sACN (Draft, Release), KiNet (v1, v2), RTTrPL
Refresh rate DMX data: 44 Hz
Ethernet: ArtNet/sACN

Inputs / Outputs: DMX ports: 1 or 4
DMX connectors: 1 or 4 XLR(3/5)M, 1 or 4 XLR(3/5)F
Ethernet port: 1 (10/100 Base-TX)
Ethernet-connectors: RJ-45/etherCON
Configuration / Indication: Configuration: web interface, ArtGate settings
Indicators: LED, for DMX and Ethernet
Package Contents: DITRA PowerGATE Guard
