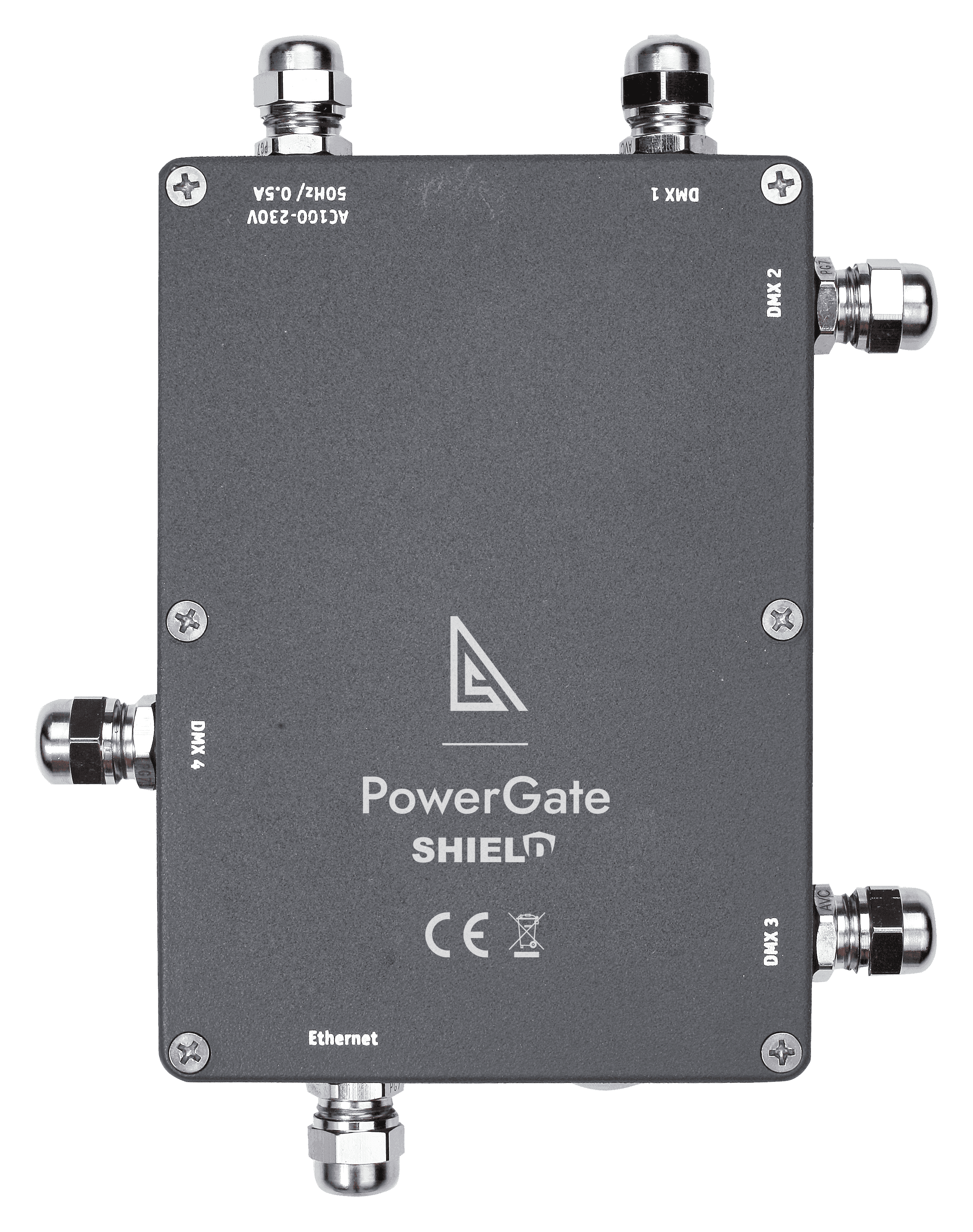

PowerGATE Shield
Smart DMX and Ethernet converter with powerline support, protocol merging, and IP67 protection
PowerGATE Shield is a professional DMX converter designed for permanent outdoor and extreme environment installations where exposure to water, dust, and harsh weather is a constant factor.
Its IP67-rated, fully sealed enclosure ensures reliable operation in conditions ranging from heavy rain and snow to coastal salt spray and desert dust storms.
The device transmits DMX and Art-Net signals over power lines at distances of up to 300 meters and up to 55 DMX universes. It supports a wide range of lighting control protocols, including DMX512, RDM (ANSI E1.20), Art-Net (1–4), sACN, KiNet
- Transmits DMX and Art-Net signals over power lines up to 300 meters and up to 55 DMX universes
- Supports ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL, DMX512, and RDM (ANSI E1.20)
- Supports DMX512 and RDM (ANSI E1.20) protocols
- Fanless design for long-term, perennial operation in professional lighting systems
- Supports HTP, LTP, Auto and Priority merge modes.
- Fast reboot and 2 seconds loading time after power loss
- Non-volatile memory for static scenes and configuration profiles
- 10/100 Mbps Ethernet port for web-based/ArtGate settings configuration
- Full galvanic isolation of both DMX/Ethernet interface and the power input (up to 3500 V protection) for maximum reliability and safety
- Surge protection for input voltage from 100 to 305 V
- "Selective" function for setting DMX ports work as inputs or outputs
- Mechanical
Mounting: Surface, truss
Material: Heat-dissipating aluminum
Dimensions, mm: 199 (L) x 55,5 (H) x 149 (W)
Weight: 0.85 kg
- Power & Electrical
Power supply: ~ 100-240 V, 50/60 Hz
Max power consumption: 5W
Fuse: 0.1 A- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 100%
IP Rating: IP 67
- Compliance & Standards
EMC, LVD, CE, ROHS
- Control & Data Connections
Supported protocols: DMX512, RDM, ArtNet I, II, III, IV,
sACN, KiNet v1, v2, RTTrPL, PWR DMX
Refresh rate DMX data: Adjustable, from 44 Hz- Technical
DMX outputs: 1 In/1 Out or 4 In/4 Out
Ethernet port: 1 (10/100 Base-TX)
Ethernet connectors: KRONE 6048 1 090-00
DMX connectors: terminal blocks 2EDGVC-5.08-03P,
15EDGVC-3.5-03- Configuration / Indication
Configuration: web interface
- Package Contents
DITRA PowerGATE Shield
Warranty: 5 years
