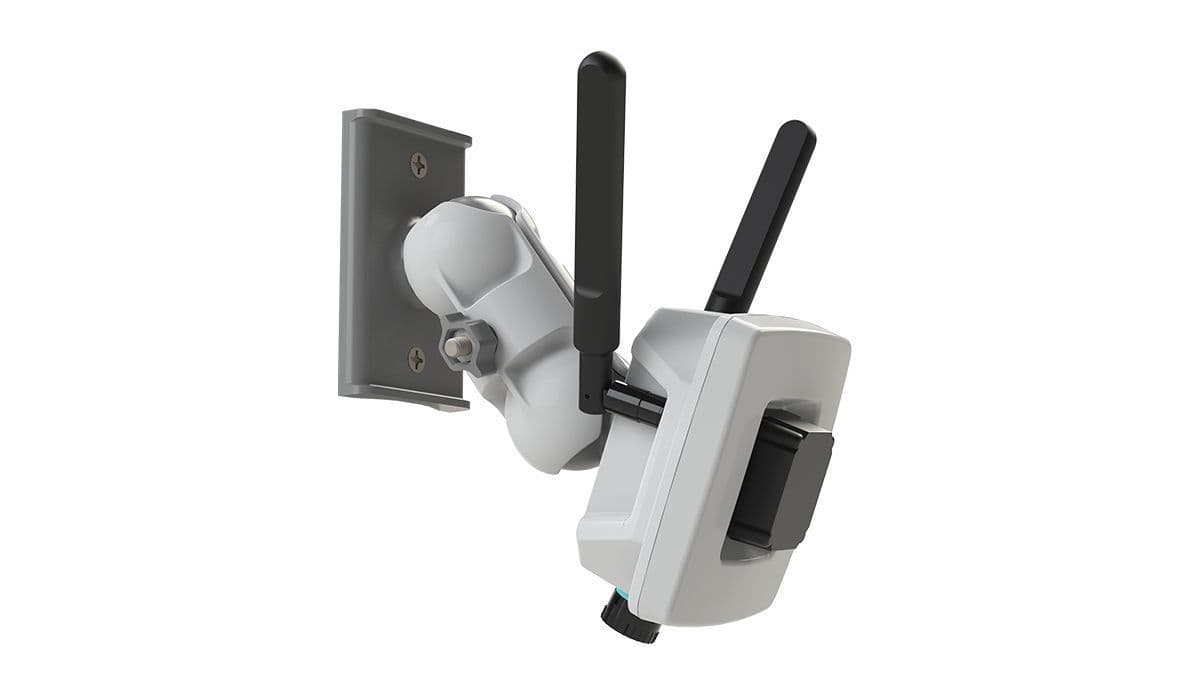

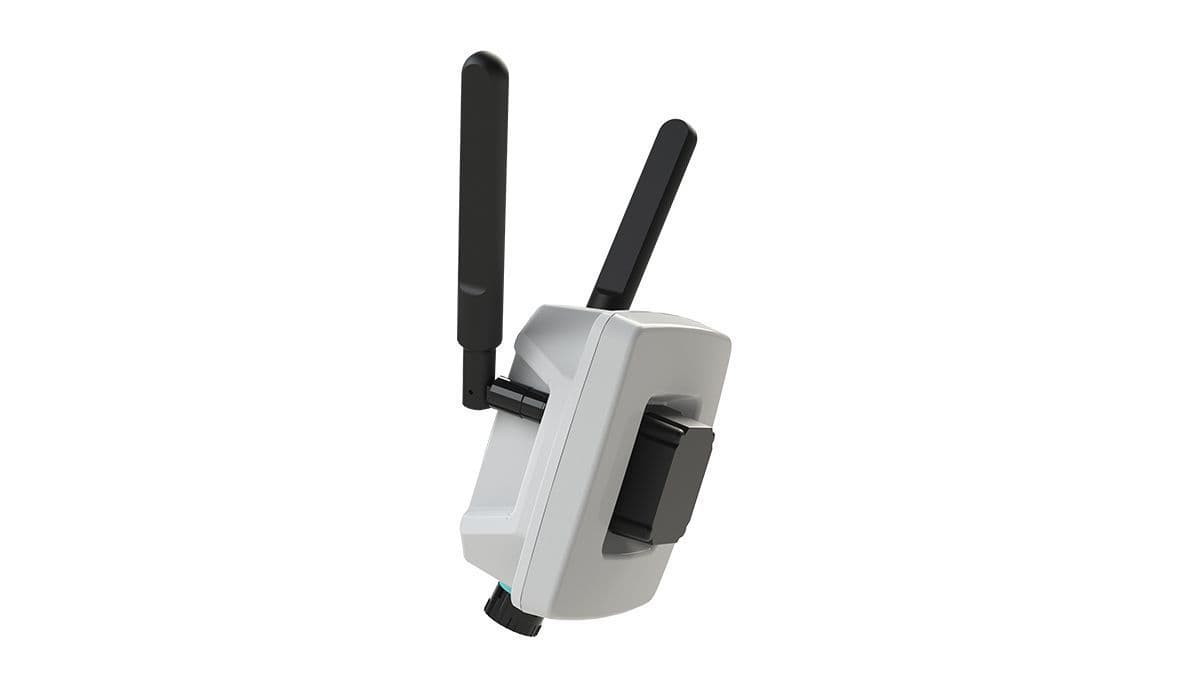

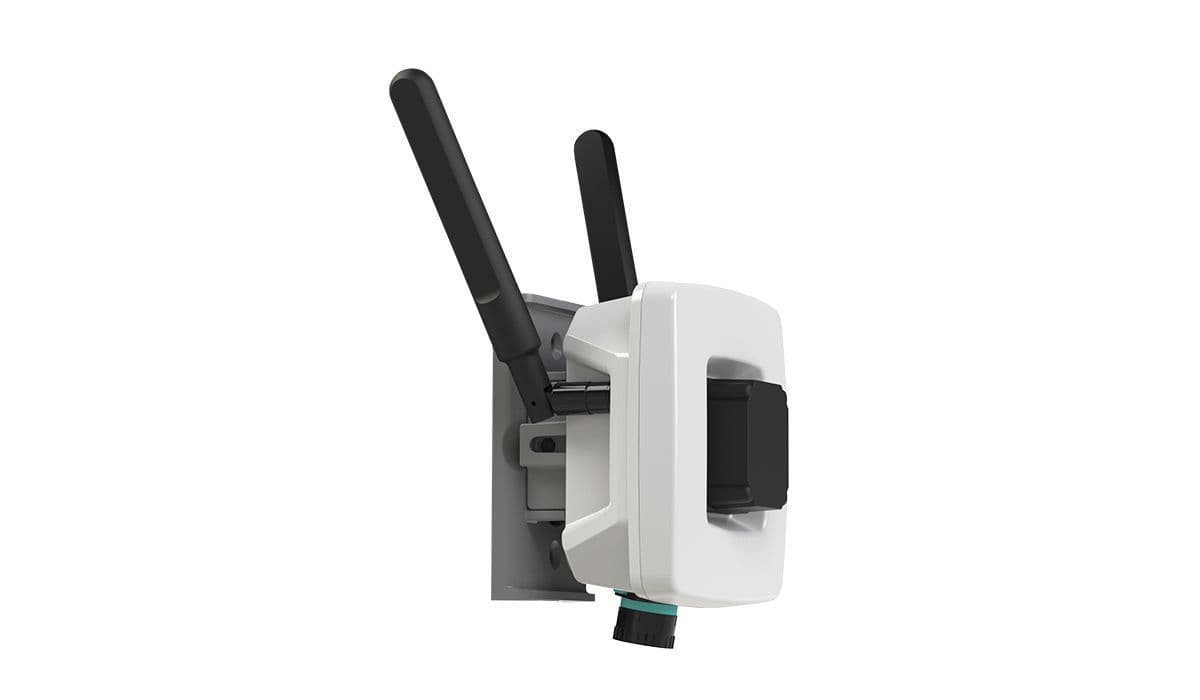

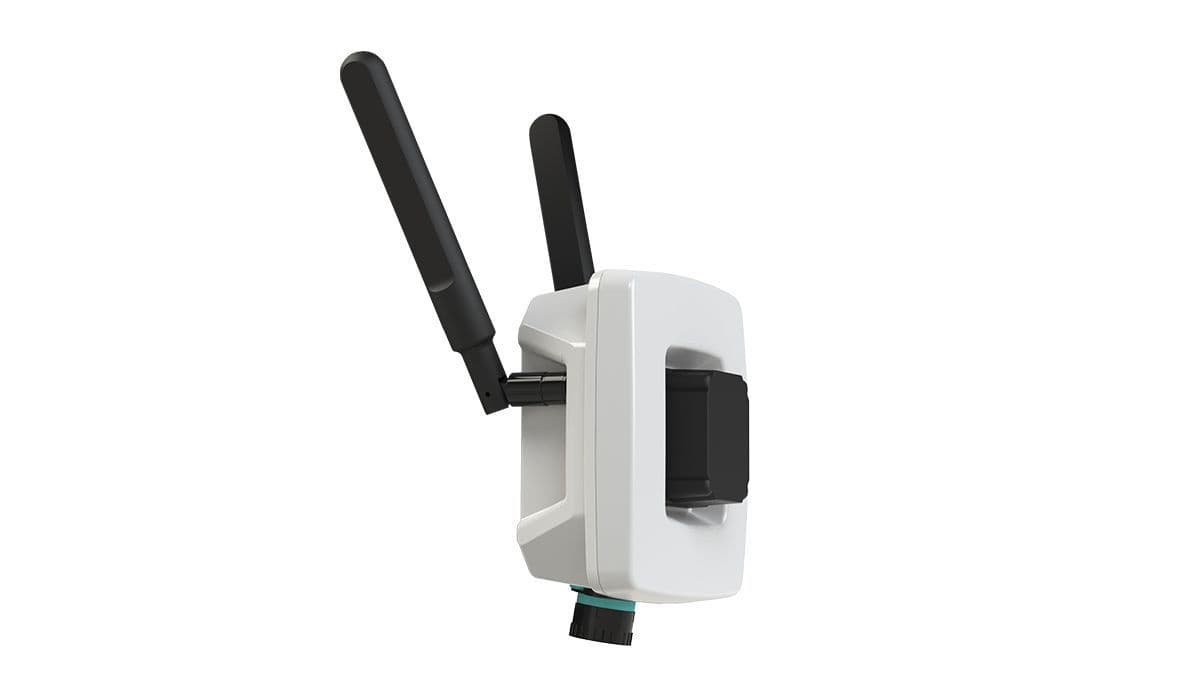

DITRA Traffic Monitoring Sensor
The Traffic Manager Sensor is a high-frequency radar-based device designed for accurate traffic monitoring and vehicle classification. It detects and counts vehicles up to 37 meters away, distinguishing between light, medium, and large vehicle types. With RS-485 (MODBUS RTU) and mobile network communication, it integrates seamlessly with the DITRA system and third-party control platforms. The sensor is IP65-rated, built with a durable metal casing, and supports remote firmware updates. I
• Durable Metal Housing with IP65 Dust and Water Resistance
• Supports Remote Firmware Upgrades
• Wireless Data Exchange via Built-in GSM/GPRS Modem
• RS-485 Interface with MODBUS RTU Protocol Support
• Detects Moving Vehicles Up to 37 Meters Away
• Advanced Vehicle Classification Capabilities
• Optional Battery-Powered Operation
- Mechanical
Housing: IP65 dust and moisture resistant
Material: metal
Dimensions, mm: 115 (L) x 80 (H) x 90 (W)
Weight: 0.85 kg
Installation: on a pole, on a vertical surface
- Power & Electrical
Power supply: AC 100-250 V, 50/60 Hz; DC 12 V battery (optional)
Max power consumption: 5W
Fuse: 0.5 A
- Environment
Operating temperatures: -40 ... + 70 ° C
Storage temperatures: -50 ... + 80 ° C
Max. relative humidity: 100%
IP Rating: IP 65
Certificates: CE compliant, RoHS
Warranty: 36 months
- Traffic Manager Sensor
- : DIT-T-6-37-232
