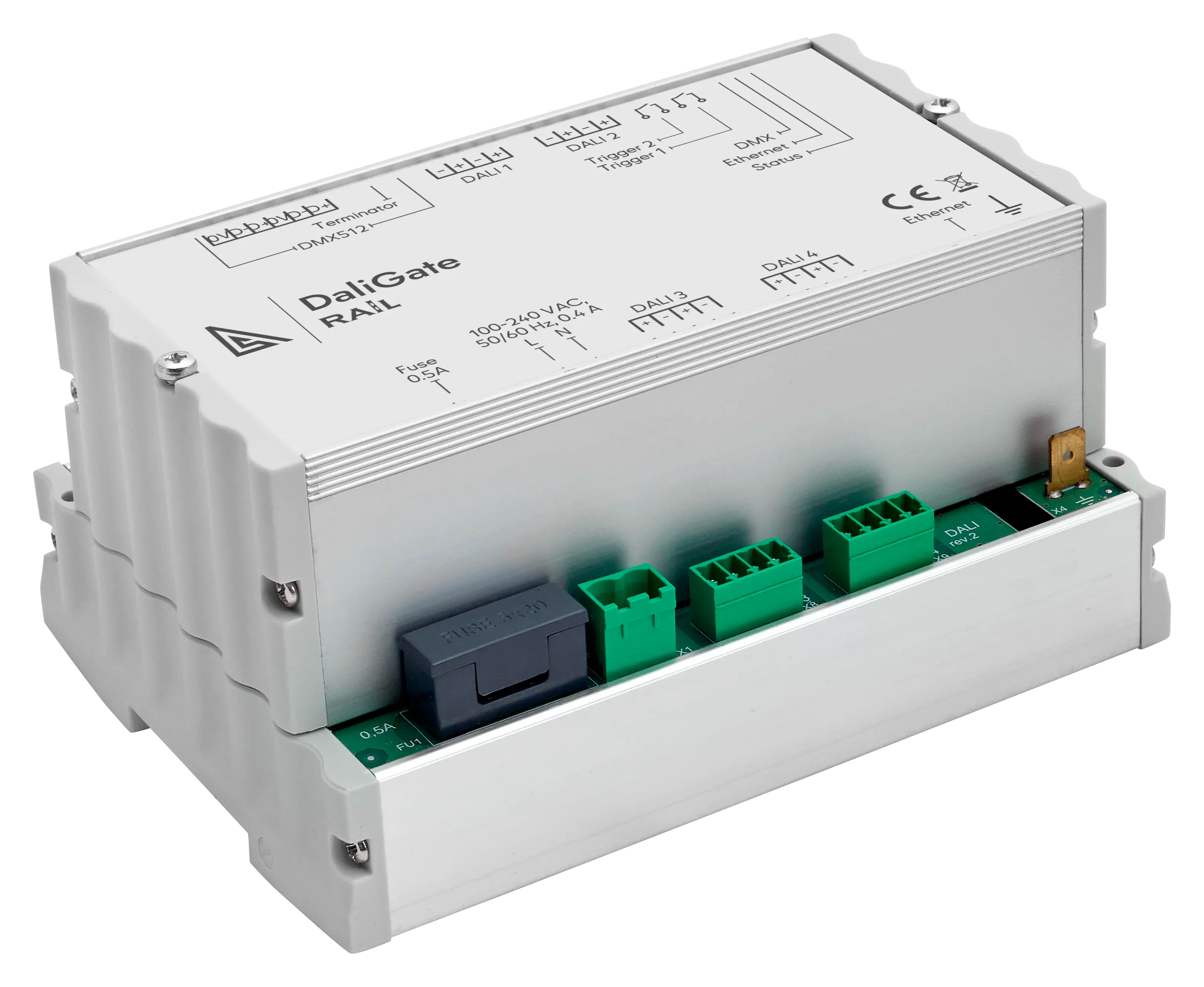

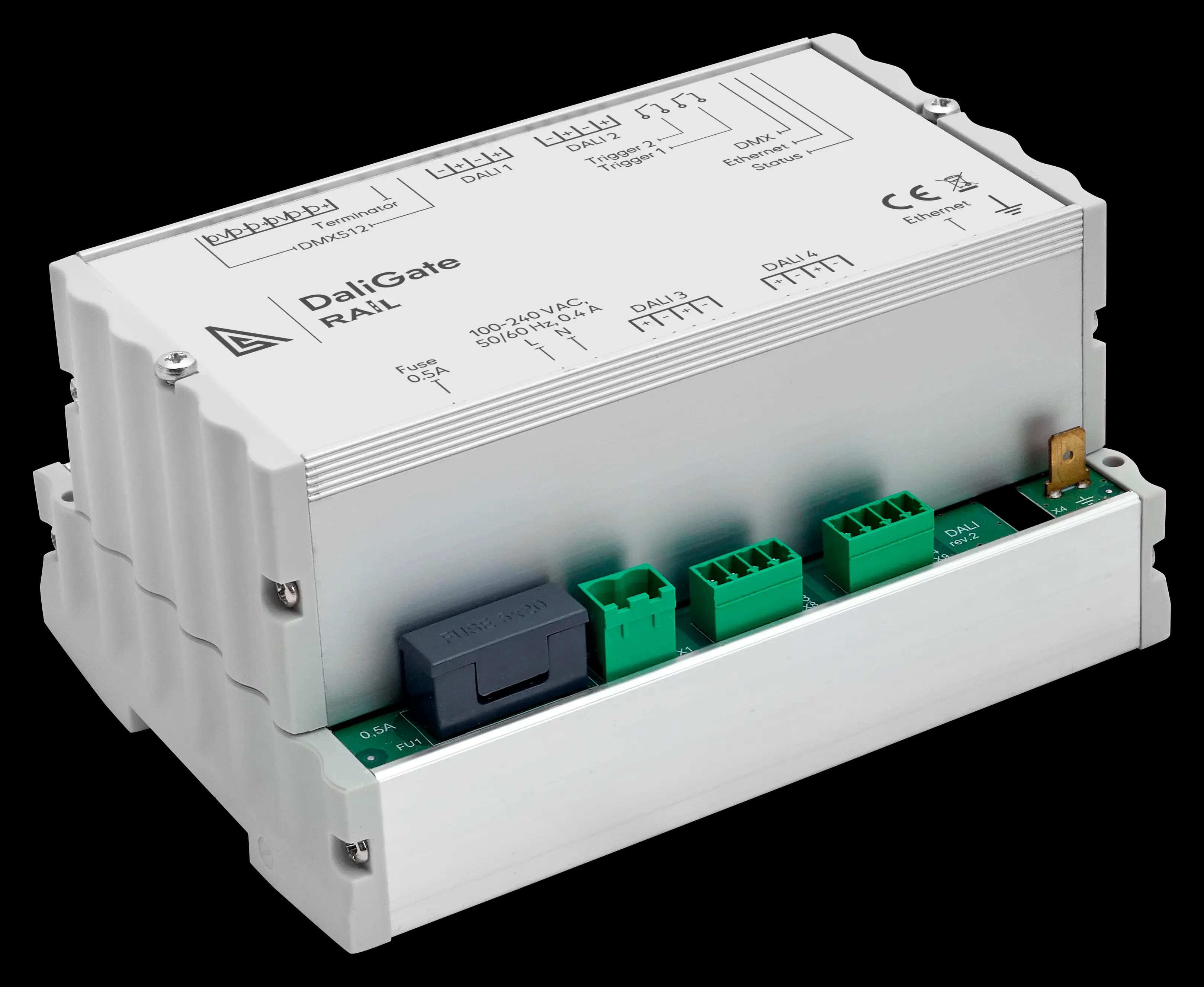

DALIGate Rail

Ethernet/DMX-to-DALI converter for seamless integration of DALI fixtures into any DMX or IP-based lighting system

DALIGate Rail is a smart DIN-rail converter that connects DALI lighting systems with DMX512, Ethernet, and other modern control protocols. Designed for maximum compatibility, it supports DMX512, RDM (ANSI E1.20), ArtNet (1–4), sACN, KiNet (v1, v2), and RTTrPL, making it easy to include DALI fixtures in mixed-protocol environments.

This compact device runs on 100–250V AC and can withstand voltage surges up to 305V. With its built-in 10/100 Mbps Ethernet port, DALIGate Rail enables easy network setup and remote management. It supports three conversion modes: DMX slot to DALI port, DMX slot to DALI slots, and DMX slot to DALI groups — g

Converts from DMX512, ArtNet, sACN, KiNet, and RTTrPL to DALI and back.
Supports three conversion modes: slot-to-port, slot-to-slots, slot-to-groups
Works with all major protocols: DMX512, RDM, ArtNet (1–4), sACN, KiNet (v1, v2), RTTrPL
Compact design with DIN rail mounting (8 modules wide)
Full galvanic isolation for DMX, DALI, ArtNet/sACN interfaces and the power input (up to 3500 V protection) for maximum reliability and safety
Built-in 10/100 Mbps Ethernet port
Simple and flexible setup via web interface, ArtNet-compatible tools, or DITRA software
Supports fixed IP addresses and profile saving
Silent fanless cooling — no moving parts or air vents
Wide operating temperature range: -40 °C to +70 °C
Flexible power input (100–240 V AC)
Status LED indicators for DMX, Ethernet, and DALI activity, enabling quick diagnostics and system monitoring
Manual control button for switching all connected luminaires on or off for testing or emergency override.

Mechanical: Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 142 (L) x 74,7 (H) x 105 (W)
Weight: 0.45 kg
Mounting: power supply cabinet
Power & Electrical: Power supply: ~ 100-240 V, 50/60 Hz
Input Power (max): 5W
Main Fuse: 0.5 A
Environment: Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE, RoHS
Interfaces and Protocols: Supported protocols: DALI, DMX512, RDM,
ArtNet (1,2,3,4), sACN (Draft, Release), KiNet (v1, v2),
RTTrPL
Refresh rate DMX data: 44 Hz

Inputs / Outputs

DMX ports: 1
Ethernet connector: RJ-45 (etherCON 10/100 Base-TX)
DALI ports: 4

Configuration / Indication

Configuration: via web interface over Ethernet connection

Package Contents

DALIGate Rail
Connector set

Warranty: 5 Years
