Intelligent Voltage Regulation and Control for Lighting Systems

DITRA VoltEdge is an advanced solution for voltage regulation and control in three-phase networks with conventional lamps. Featuring dimming capabilities in the range of 170-235 V and a soft start function, it helps reduce energy costs and extend the lifespan of lamps. The device also offers comprehensive diagnostics for outgoing power lines, along with overload and short-circuit protection, and includes a built-in bypass for emergency situations.

Equipped with an RS-485 (MODBUS) interface, it ensures seamless communication with other devices. The unit can be operated via push buttons or remotely through cabinet controllers for added convenience.

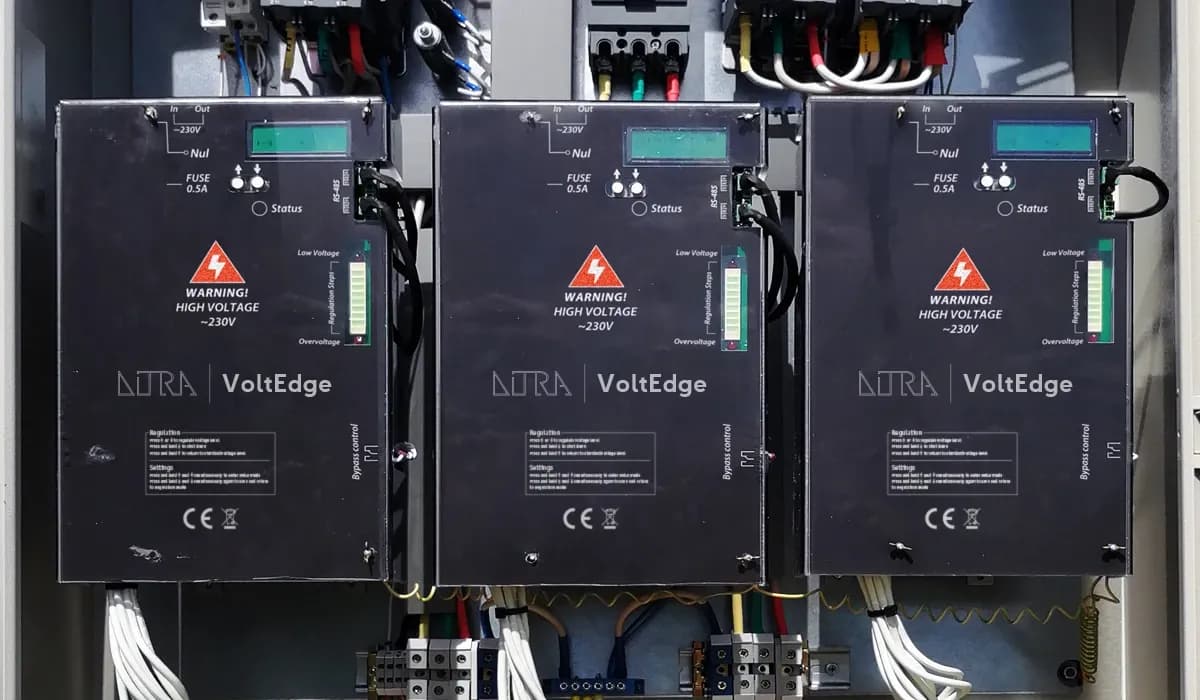

Designed for installation in lighting control cabinets, DITRA VoltEdge combines reliability, efficiency, and ease of use to optimize lighting performance and management.

  • • Schedules lights on/off for efficient energy management

    • Ensures powerline voltage stabilization for consistent performance

    • Collects data from electric meters for monitoring and analysis

    • Supports soft start-up, extending bulb lifespan

    • Provides diagnostics for outgoing power lines to enhance reliability

    • Includes a built-in temperature sensor for system safety

    • Features overload protection and short-circuit resistance

    • Equipped with an emergency bypass for uninterrupted operation

    • Compatible with existing conventional lamps, eliminating replacement needs

  • Mechanical:

    Housing: protective cover, radiator
    Material: metal, plastic
    Dimensions, mm: 1200(L) x 800(H) x 280(W)
    Mass: 30 kg
    Mounting: flat surface

  • Power & Electrical:

    Input Voltage: three-phase AC 230 V, 50 Hz
    Maximum load power: 24, 45, 60 kW
    Adjustment range at rated voltage of 230V: 180-245 V
    Adjustment step: 5 V
    Mains Fuse: 0.5 A

  • Environment:

    Operating Temperature: -40...+70°C
    Storage Temperature: -50...+80°C
    Operating Relative Humidity (max): 20-80%
    IP Rating: IP 54
    Certification: CE compliant, RoHS
    Warranty: 36 Month

  • Interfaces and Protocols:

    Serial interface: RS-485 (MODBUS RTU)
    Max length of RS-485 line: 1500 m

  • Inputs / Outputs:

    Max voltage at inputs: 270 V
    Controllable output lines: 3 phase
    Connectors: terminal blocks

  • Configuration / Indication:

    Setup: remote via cabinet controllers, buttons on board
    Indication: LCD display, status LED

  • Package Contents:

    DITRA VoltEdge

DITRA VoltEdge, 24 kW, 8 kW per phase
  • : DIT-DIM-024
DITRA VoltEdge, 45 kW, 15 kW per phase
  • : DIT-DIM-045
DITRA VoltEdge, 60 kW, 20 kW per phase
  • : DIT-DIM-060
