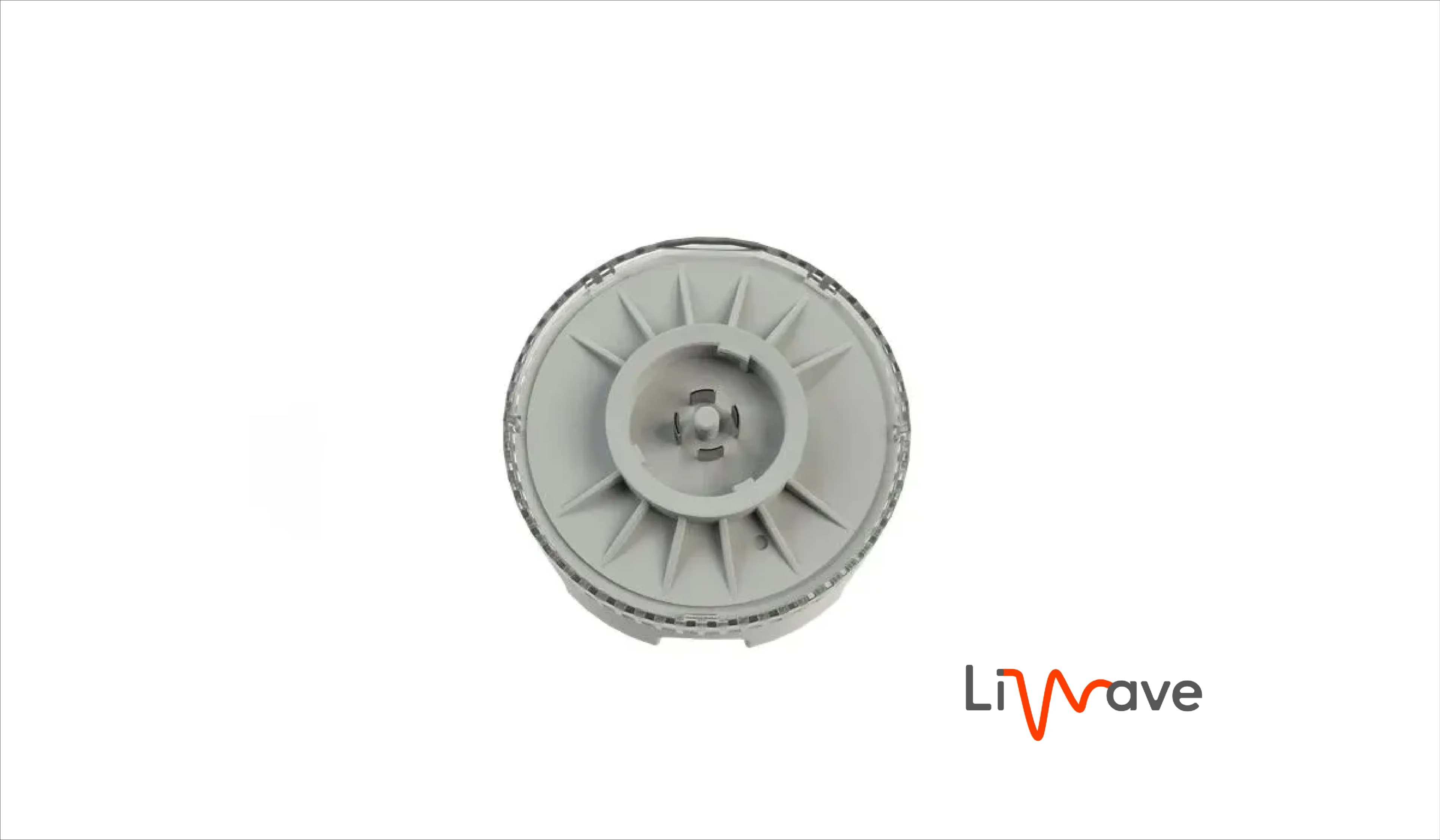

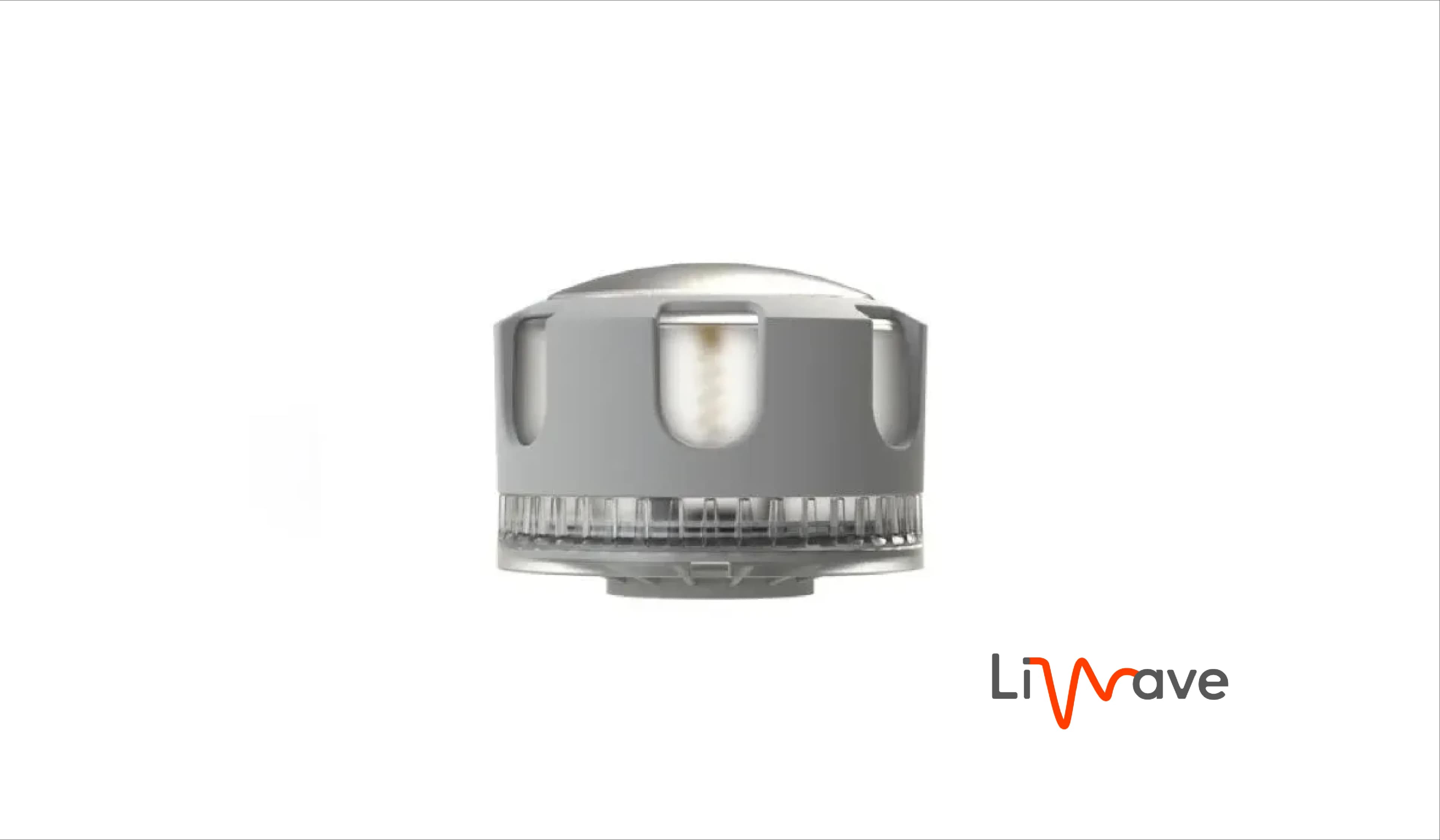

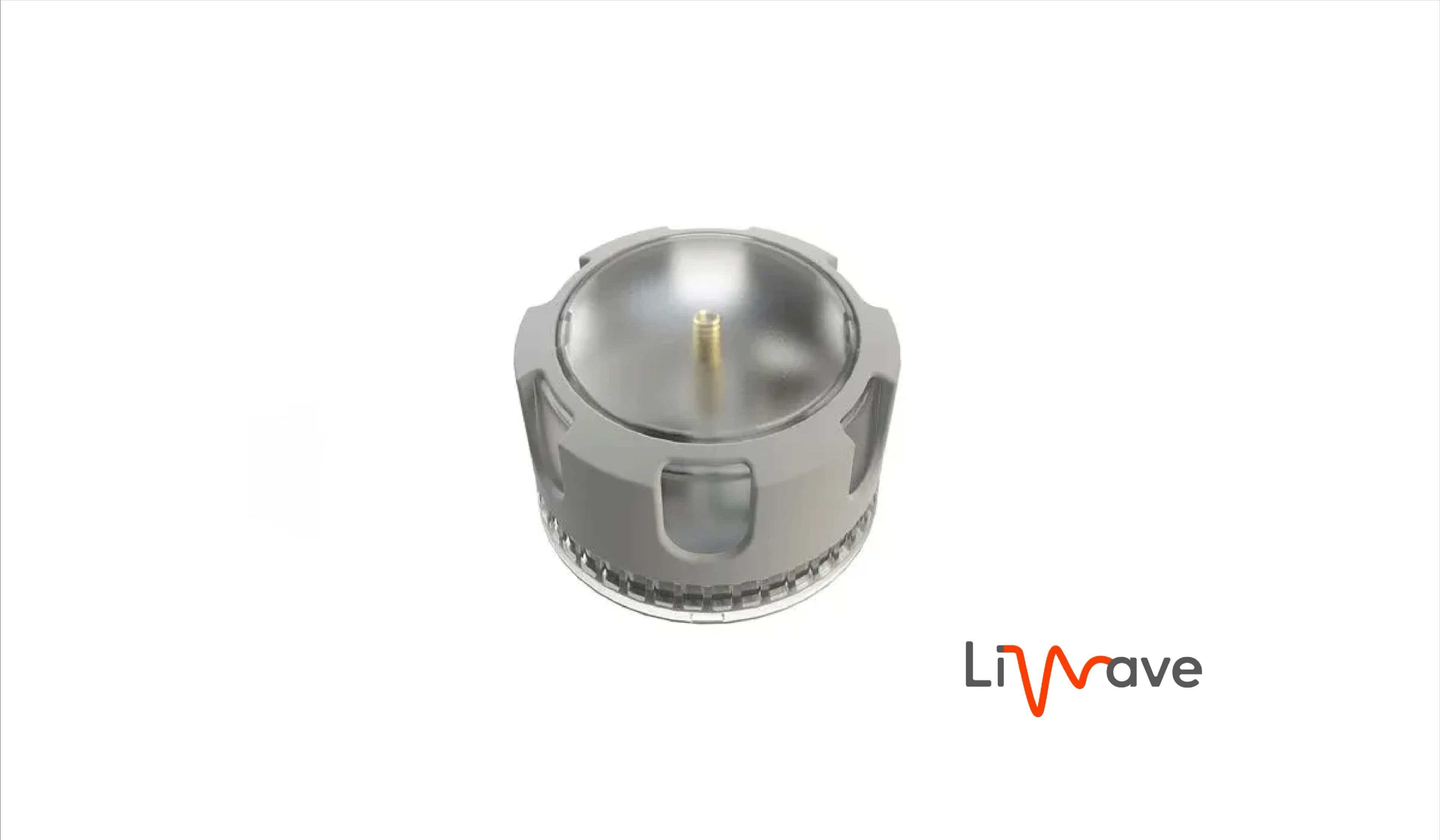

LiWAVE Node (Zhaga-type connector)
LiWAVE Wireless (868/915 MHz) Street Light Luminaire Controller with Zhaga-type connector
The LiWAVE Node is a module designed for wireless control of luminaires via radio signals, offering individual control, diagnostics, and dimming capabilities.
This individual control module is part of the LiWAVE wireless lighting management system (868/915 MHz) and connects through a Zhaga-type connector. It provides seamless wireless lighting control without requiring additional wiring. The device is designed for easy installation and can be mounted in various locations.
The LiWAVE Node supports DALI 2.0 interfaces and individual load control (on/off). Depending on the version, it may also include a GPS receiver for geo-positioning and synchronization.
Configuration and control are performed via an 800–950 MHz radio channel through LiWAVE Base Stations.
The device is specifically designed for installation on lighting fixture housings ensuring compatibility and easy integration.
Convenient and quick connection using a Zhaga-type connector
Individual lighting control without the need for additional wiring
Suitable for installation in any luminaire housing
Integrated light sensor for automated operation
Optional GPS receiver for precise positioning and synchronization
Automatic node mapping for easy location tracking
Tilt and vibration sensor for monitoring pole condition and detecting failures
Compatible with DITRA eco monitoring sensors via DALI 2.0 interface
- Mechanical:
Housing: solid case
Material: plastic
Dimensions, mm: 79,8(D) x 61,6(56,6)(H)
Mass: 0.3 kg
Mounting: luminaire case - Power & Electrical:
Input Voltage: 12-30 V DC
Input Power (max): 5 W - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Control output interface: DALI 2.0
Navigation: GPS
Communication with controller: ISM band 868/915 MHz - Inputs / Outputs:
Connectors: Zhaga-type
Sensors: embedded daylight sensor, accelerometer - Configuration / Indication:
Setup: remote via Base station
Indication: LED - Package Contents:
LiWAVE Node (Zhaga-type connector)
- LiWAVE Node (Zhaga-type connector), DALI 2.0, GPS, acelerometer, Region: E
- : DIT-LT-868-Z-A
- LiWAVE Node (Zhaga-type connector), DALI 2.0, GPS, acelerometer, Region: A
- : DIT-LT-915-Z-A
- LiWAVE Node (Zhaga-type connector), DALI 2.0, Region: E
- : DIT-LT-868-Z-B
- LiWAVE Node (Zhaga-type connector), DALI 2.0, Region: A
- : DIT-LT-915-Z-B
