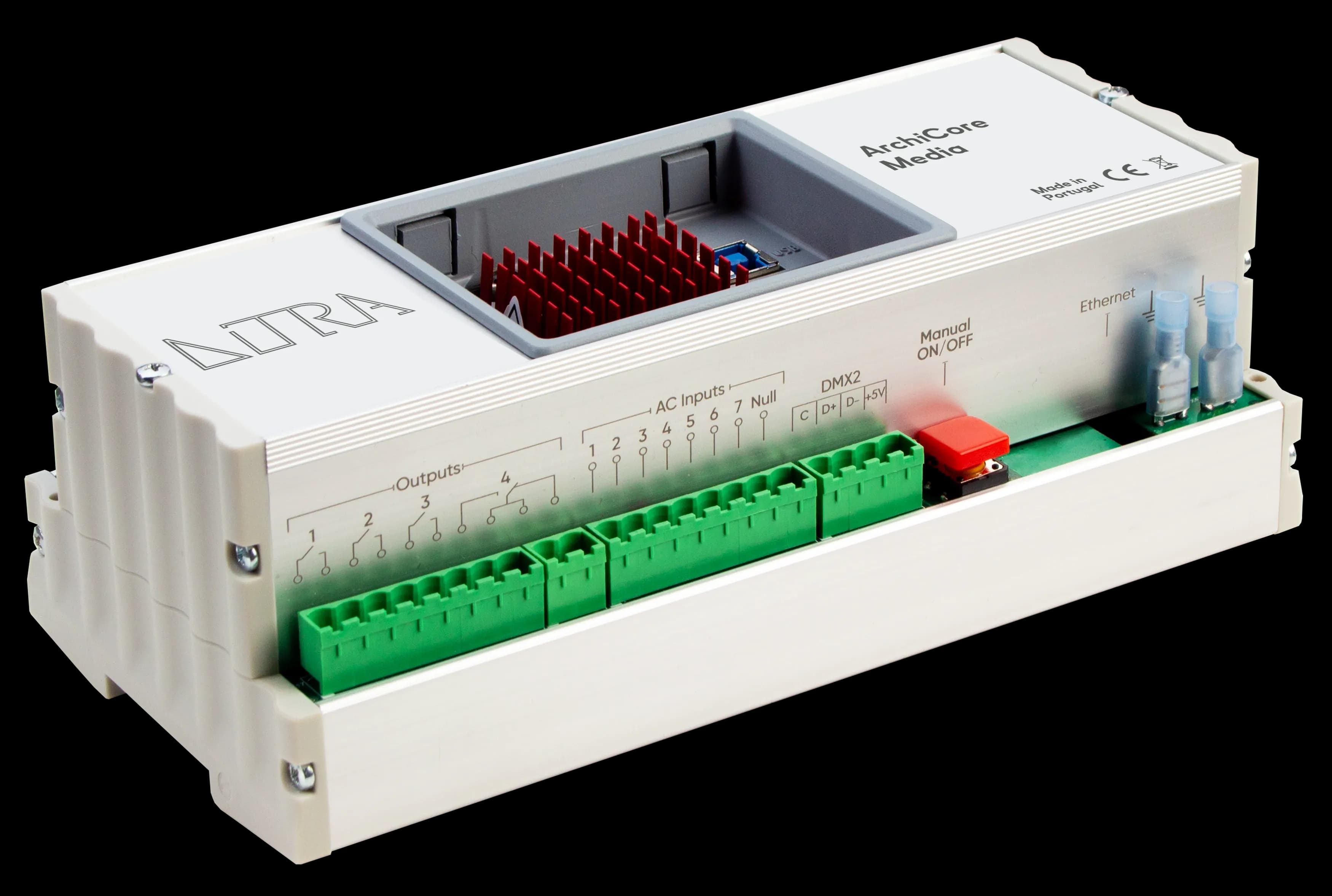

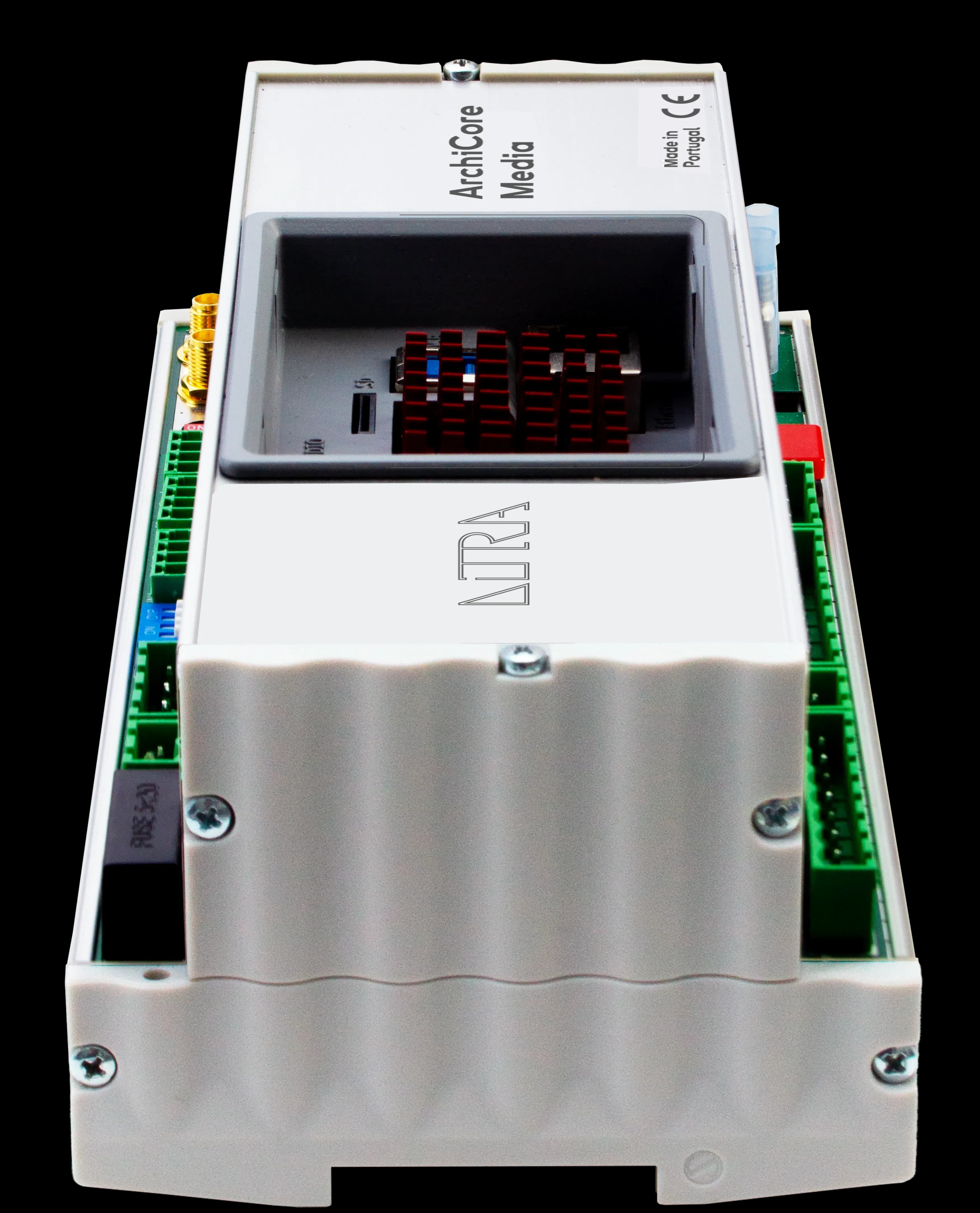

DITRA ArchiCORE MEDIA
Advanced Controller for Architectural Lighting Control with Media Playback Capability
The central controller of the DITRA system is designed for managing architectural lighting and playing audio and video content.
It includes four outputs for remote control of starters, seven inputs for acknowledgment, and supports two DMX512 streams.
It features non-volatile clock functionality, a built-in GSM 3G/4G modem, and interfaces for RS-485 (MODBUS) and CAN.
Additionally, it provides two inputs for connecting sensors, two integrated Ethernet interfaces, support for up to two SIM cards, and a built-in GLONASS/GPS module.
The controller also includes HDMI and RCA ports, and supports SD cards with a capacity of up to 16 GB.
It is mounted on a DIN rail (12 modules) and is suitable for outdoor use, offering dust and moisture protection with an IP23 rating. The power supply operates on AC 100-250 V.
Control and Connectivity:
- 4 outputs for independent lighting group control
- 7 inputs for acknowledgment signals
- Support for 2 DMX512 streams and up to 256 ArtNet streams
- Interfaces: RS-485 (MODBUS), CAN, and Ethernet (2 ports)
- Wireless communication via built-in GSM/3G/4G modem with dual SIM support
- GPS/GLONASS module for geolocation and precise timekeeping

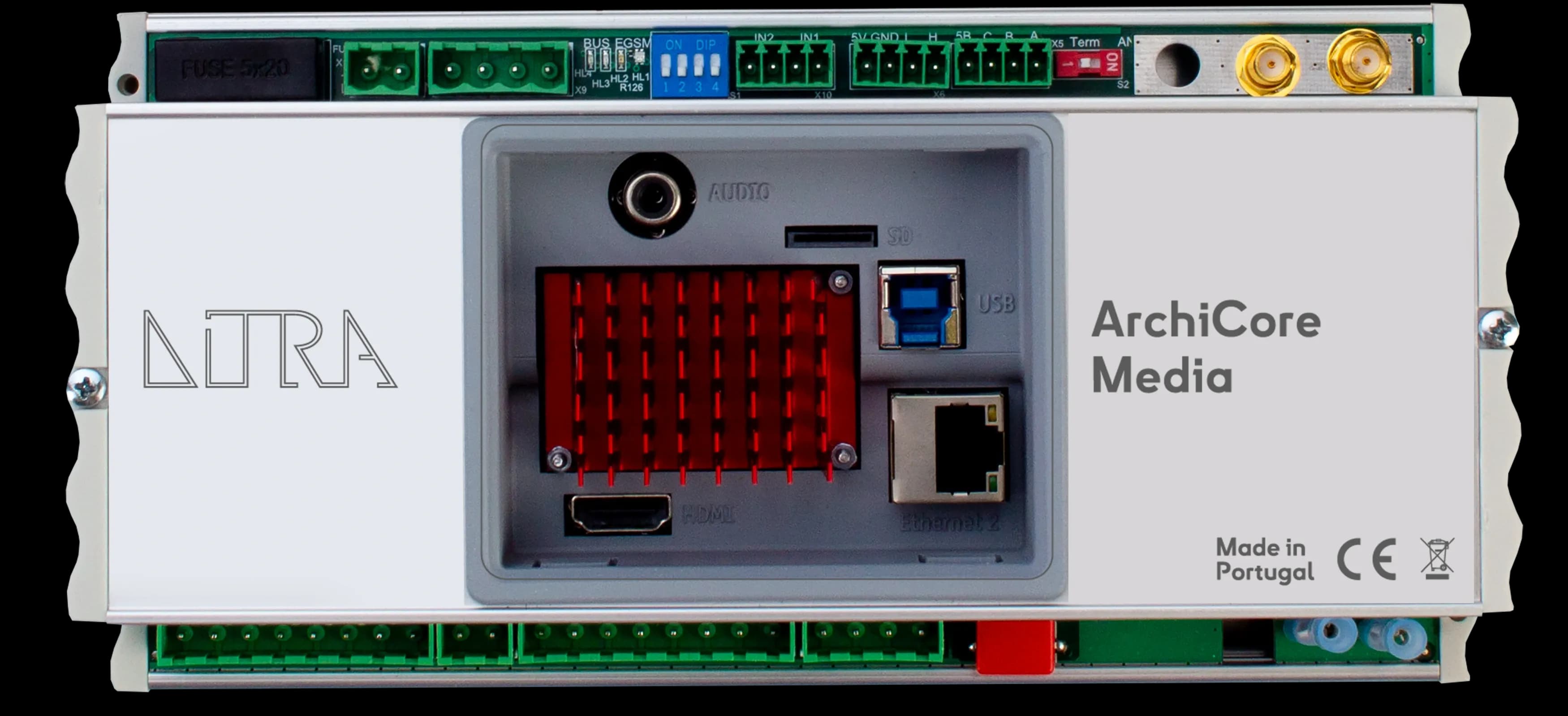

Media and Storage
- HDMI, RCA outputs, and SD card support (up to 16 GB)
- Software integration with DITRA Scenario Module
Reliability and Power:
- Operates at 100-250V AC and remains functional up to 305V
- Built-in backup power supply
- Aluminum housing with permanent laser engraving
Installation and Maintenance:
- DIN-rail mounting (12 modules)
- Remote firmware updates
- Mechanical:
Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 210(L) x 105(H) x 75(W)
Mass: 0.85 kg
Mounting: DIN (12 modules) rail - Power & Electrical:
Input Voltage: ~100-270 V 50/60 Hz
Input Power (max): 5 W
Mains Fuse: 0.5 A - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Supported protocols: DMX512, RDM, ArtNet/sACN
Navigation: GPS
Serial interface: RS-485, CAN, DMX
Radio Channel: GSM 850/900/1800/1900, WCDMA 900/2100, LTE
Max length of RS-485 line: 1500 m
Lan: Ethernet 10/100 Base-TX
Flash memory: up to 16 Gb - Inputs / Outputs:
Relay outputs: 4
Voltage control inputs: 7
Max voltage and current at outputs: 250 V, 5 A
Max voltage at inputs: 250 V
Number of sensor inputs: 2
Connectors: terminal blocks 2EDGVC, 15EDGVС - Configuration / Indication:
Setup: locally via Ethernet; Remote via GSM/GPRS/3G

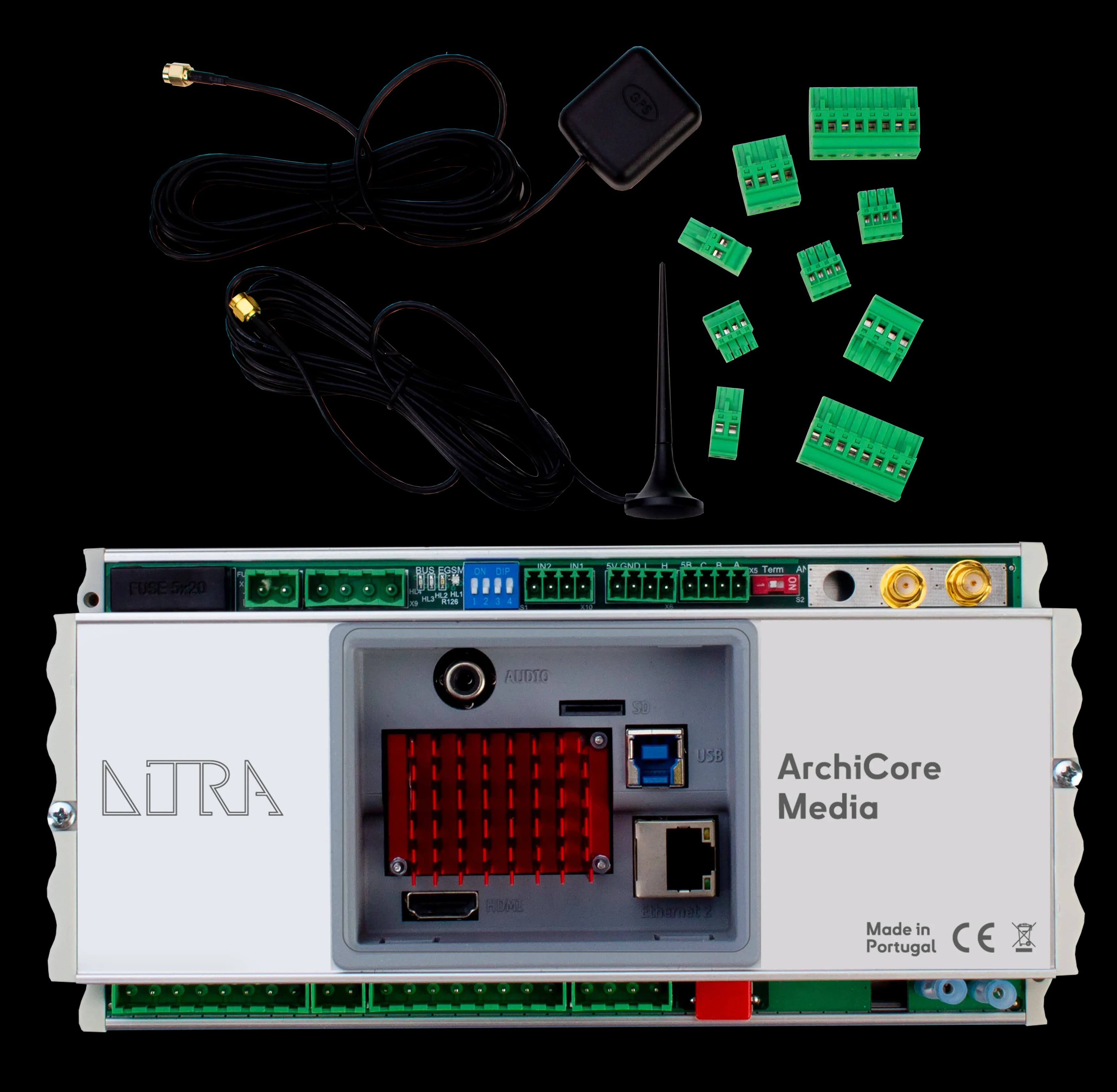

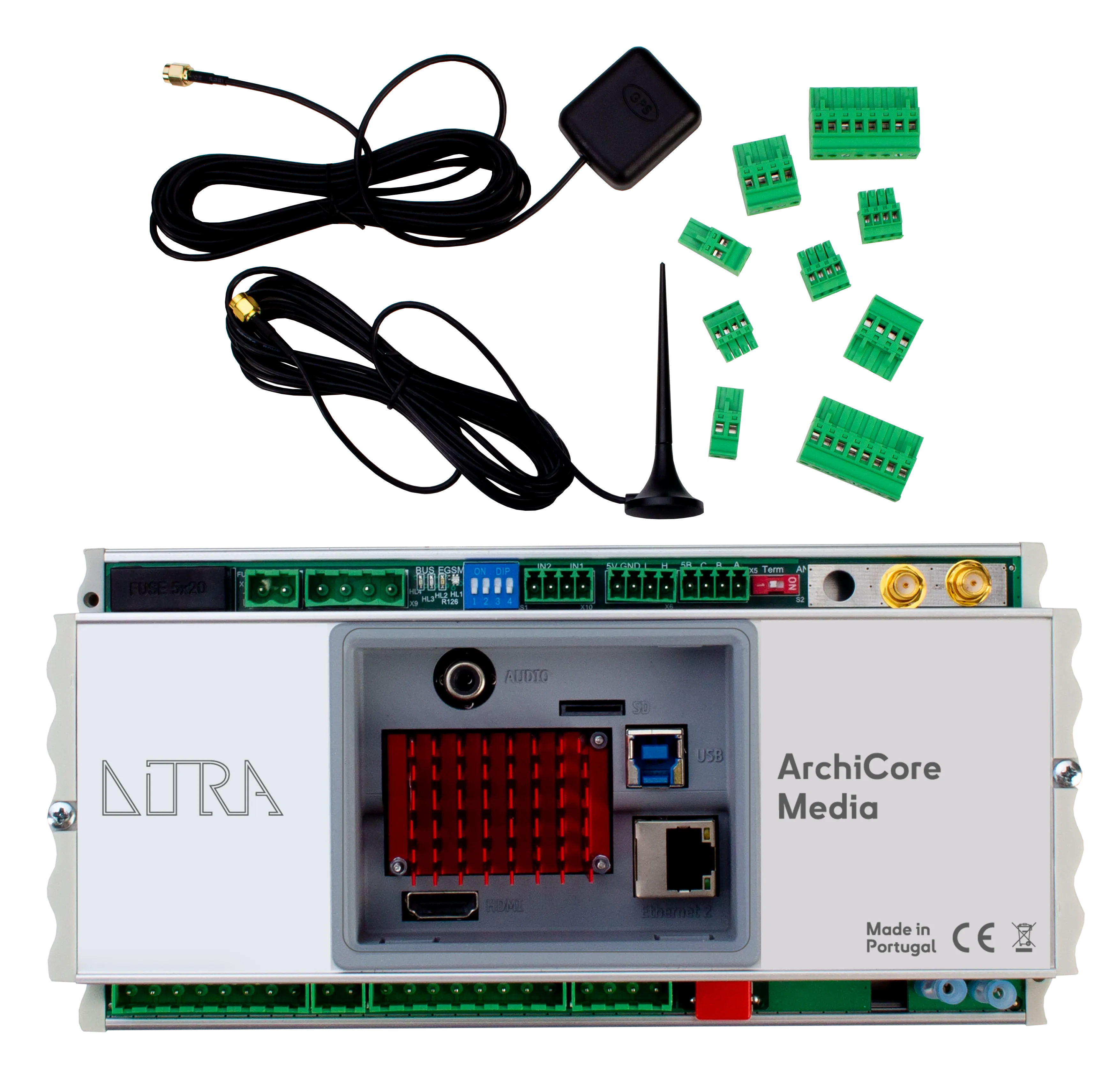

Indication: LEDs for GSM, GPS, Ethernet and RS-485 activity - Package Contents:
DITRA ArchiCORE MEDIA
Connector set
GSM antenna
- DITRA ArchiCORE MEDIA, AC, 2DMX, GSM4G, 4 relays, 7 inputs, RS-485, CAN, Ethernet 10/100/1000ТХ, HDMA, RCA, SD-card, mediacontent
- : DIT-MNR-200407-М
